Cedar Summit F25720 - Floor Assembly

Hardware
Wood Parts
Step 7: Floor Assembly
Part 1

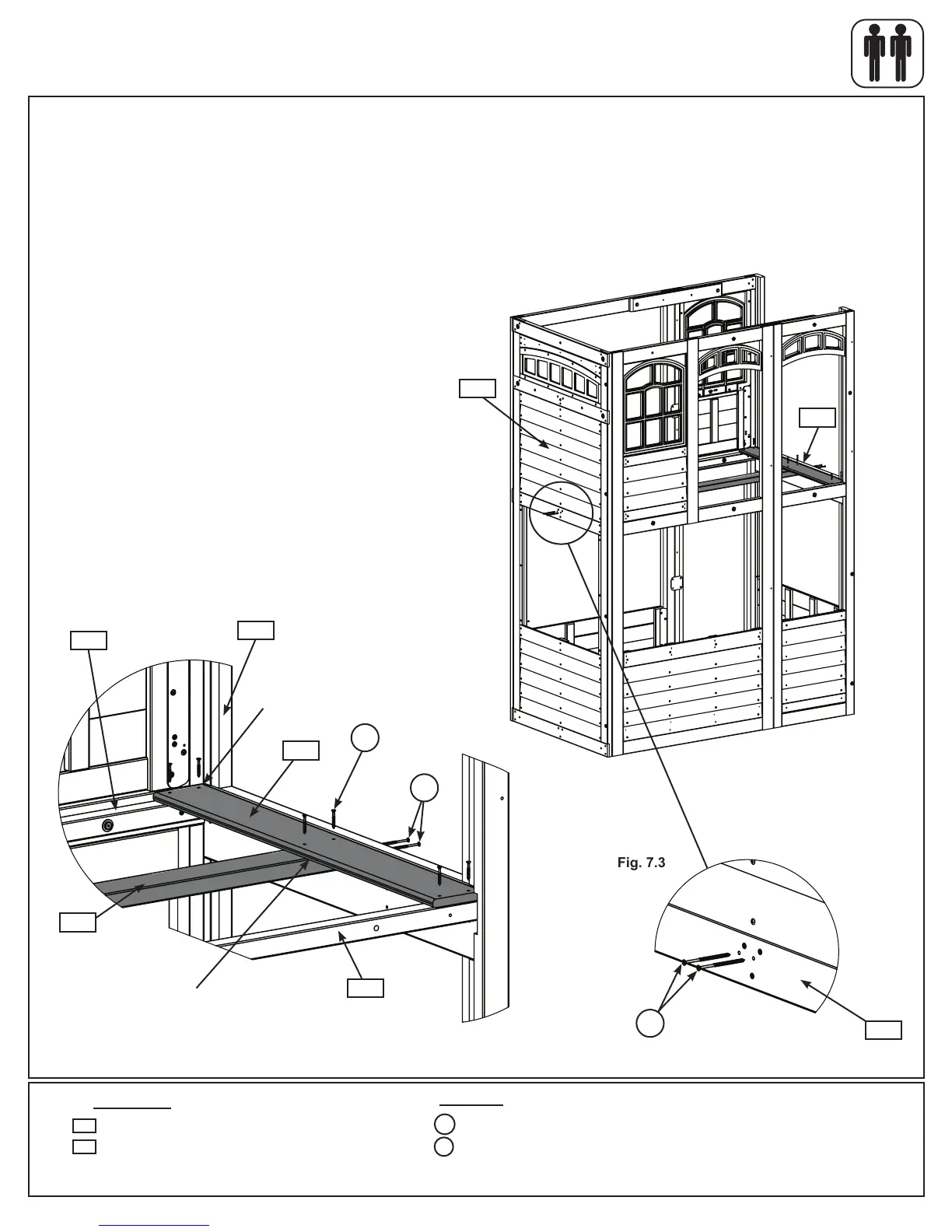

A: Place 1 (070) Floor Board tight to (040) End Slide Panel and 1 tight to (050) SW Wall Panel then attach each
to the (061) Side Joists with 4 (S20) #8 x 1-3/8” Wood Screws per board. (g. 7.1 and 7.2)
B: Place (071) Long Floor Joist tight to the bottom of each (070) Floor Board, centred over the pilot holes on the
(040) End Slide Panel and (050) SW Wall Panel then attach with 2 (S4) #8 x 3” Wood Screws per panel. Attach
(070) Floor Board to (071) Long Floor Joist with 2 (S20) #8 x 1-3/8” Wood Screws per board (g. 7.1, 7.2 and
7.3)
2 x Floor Board 1 x 5 x 35-5/8”
1 x Long Floor Joist 1-1/4 x 3 x 63-1/4”
12 x #8 x 1-3/8” Wood Screw
4 x #8 x 3” Wood Screw
070
Fig. 7.1
Fig. 7.3
Fig. 7.2
S4
071
S20
050
A
B
A
B
A
B
040
Tight
Wall removed for clarity
x 6 per
board
061
Tight
070
S20
071
040
S4
061
050
S4
