Cedar Summit F25720 - Page 29

A
B
G: On the inside of the assembly attach (041) Narrow Panel Back to (052) Wall Panel Back using 2 Flat Panel
Brackets in the places shown with 4 (S8) #12 x 3/4” Pan Screws per bracket. (g. 6.8 and 6.9)
H: Repeat Step G to attach (042) Narrow Front Panel to (051) Front Wall Panel. (g. 6.8 and 6.9)
I: At all four corners on the bottom attach 1 Panel Corner Bracket with 4 (S8) #12 x 3/4” Pan Screws per bracket.
Brackets to be ush to the bottom of the panels. (g. 6.8 and 6.10)
042
32 x #12 x 3/4” Pan Screw
Hardware
S8
Other Parts
4 x Flat Panel Bracket
4 x Panel Corner Bracket

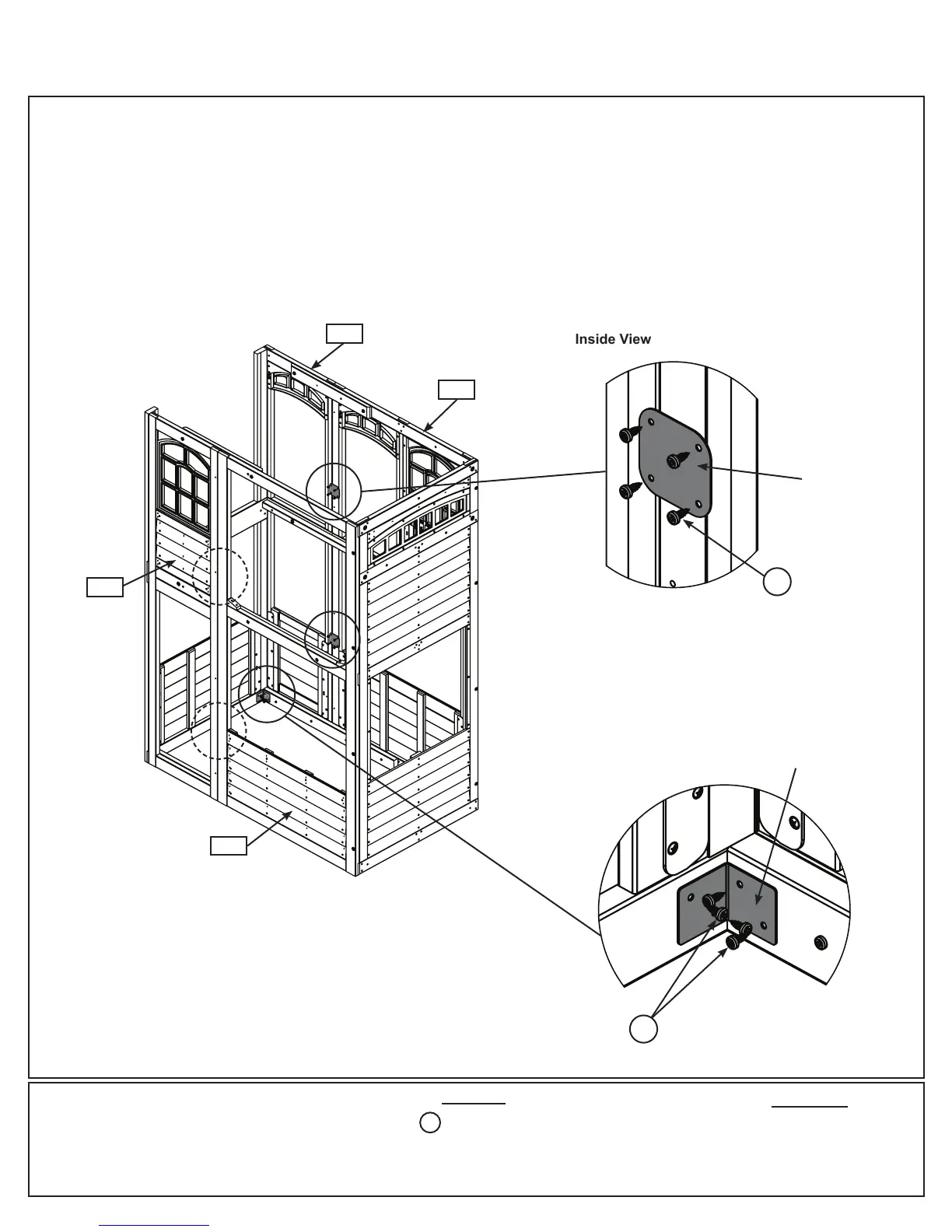

Step 6: Join Swing and Slide Wall Assemblies
Part 4
Front Wall
Back Wall
Inside View
Fig. 6.9
Fig. 6.10
052
Fig. 6.8
Inside View
051
A
B
A
B
041
Flat Panel
Bracket
x 4 per
bracket
x 2 per wall
S8
x 4 per bracket
S8
Panel
Corner
Bracket
x 8
