Step 22: Crowsnest Assembly
Part 3

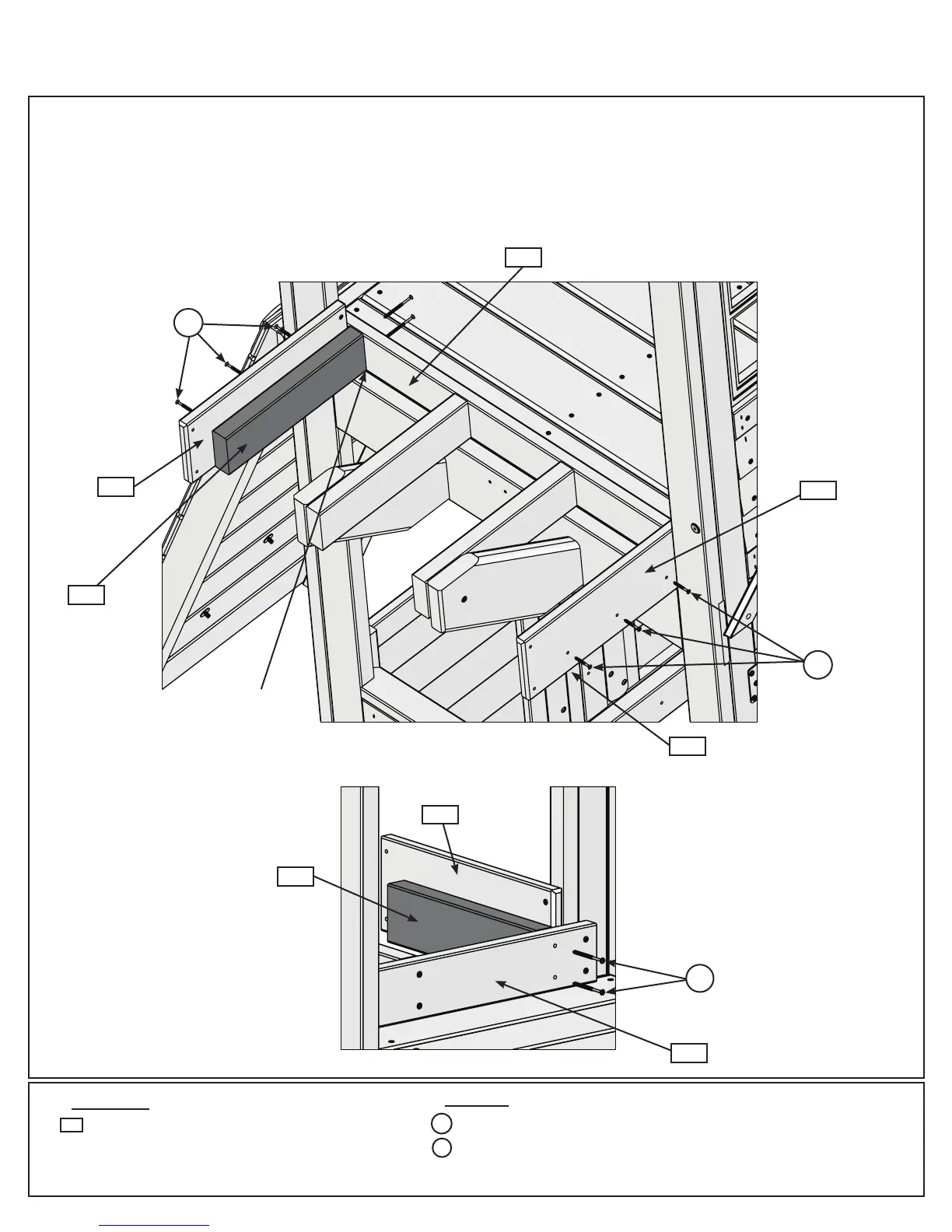

C: Attach 1 (221) Short Crowsnest Joist tight to (202) Crowsnest Back and ush to the bottom of each (220)
Crowsnest Bottom Side using 3 (S20) #8 x 1-3/8” Wood Screws per board as shown in g. 22.5. Screws to be
installed from outside the assembly.
D: From inside the assembly attach (202) Crowsnest Back to each (221) Short Crowsnest Joist with 2 (S3) #8 x
2-1/2” Wood Screws per joist. (g. 22.6)
2 x Short Crowsnest Joist 2 x 4 x 12-1/2”
Wood Parts
221
6 x #8 x 1-3/8” Wood Screw
4 x #8 x 2-1/2” Wood Screw
Hardware
S20
220
220
221
221
(hidden)
202
S20
S20
Flush
and Tight
Fig. 22.5
Fig. 22.6
Inside View
220
221
202
S3
S3
x 2 per joist
