Step 22: Crowsnest Assembly
Part 4
2 x #8 x 2” Wood Screw
S11
Hardware

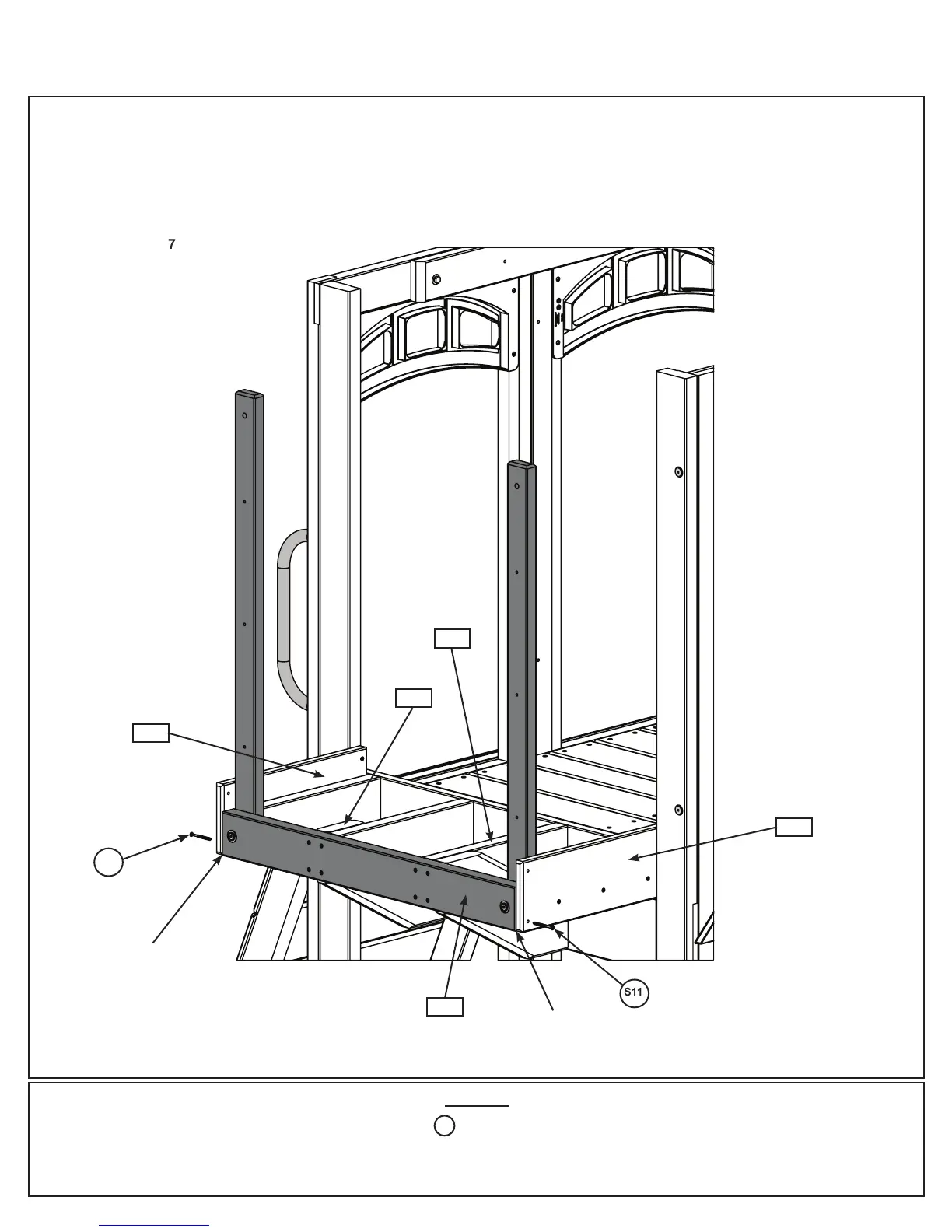

E: Place Upper Crowsnest Assembly from Step 21 in between (220) Crowsnest Bottom Sides so (210)
Crowsnest Front is ush to the bottom and front of each (220) Crowsnest Bottom Side and to the tops of (200)
Crowsnest Gussets and (201) Crowsnest Joists. Attach with 2 (S11) #8 x 2” Wood Screws using the bottom
holes on each side. (g. 22.7)
Fig. 22.7
S11
S11
Flush
Flush
210
220
220
200
201
