Cedar Summit F25720 - Page 47

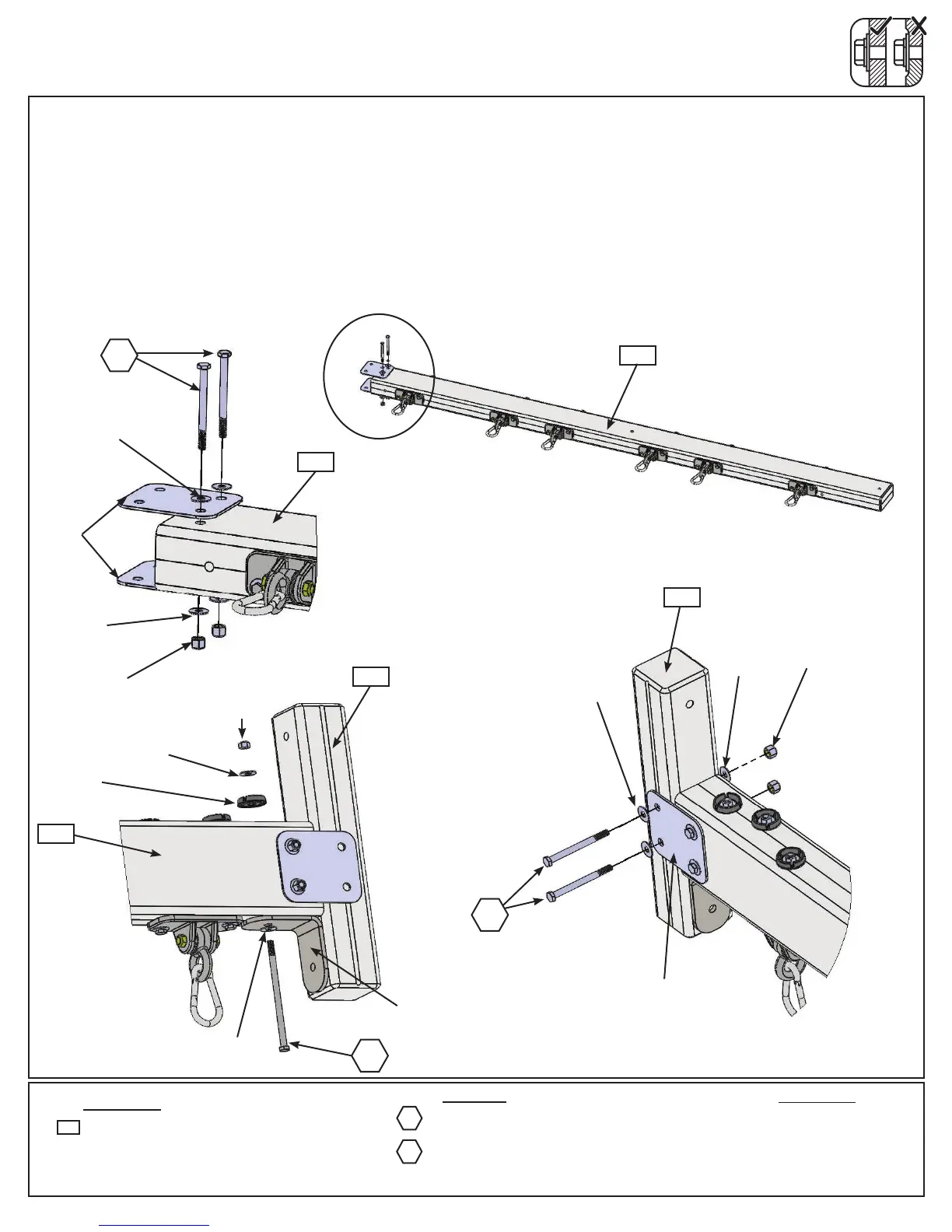

Step 15: Swing Beam Assembly
Part 2
Hardware
E: On the Fort End of (150) Engineered SW Beam attach 2 Heavy Flat Brackets with 2 (G21) 5/16 x 3-3/4”
Hex Bolts (with 2 at washers and 1 lock nut). (g. 15.6 and 15.7)
F: Place (151) SW Mount in between both Heavy Flat Brackets and place 1 Heavy L-Bracket against (150)
Engineered SW Beam and (151) SW Mount. Attach with 1 (G17) 3/8 x 6” Hex Bolt (with 2 at washers, plastic
formed washer and lock nut). (g. 15.8)
G: Attach (141) SW Mount to Heavy Flat Brackets with 2 (G21) 5/16 x 3-3/4” Hex Bolts (with 2 at washers
and 1 lock nut). (g. 15.9)
4 x 5/16 x 3-3/4” Hex Bolt
 (5/16”atwasherx2,5/16”locknut)
1 x 3/8 x 6” Hex Bolt
(3/8”atwasherx2,plasticformedwasher&3/8”locknut)
Other Parts
2 x Heavy Flat Bracket
1 x Heavy L-Bracket
G21
G17
Wood Parts
1 x SW Mount 4 x 4 x 16”
151
G21
150
5/16” Flat
Washer
Fort End
5/16”
Lock Nut
5/16” Flat
Washer
Plastic
Formed
Washer
Heavy
Flat
Bracket
150
3/8”
Lock Nut
Fig. 15.6
Fig. 15.7
Fig. 15.9
Fig. 15.8
G17
G21
151
150
151
5/16” Flat
Washer
5/16” Flat
Washer
5/16”
Lock Nut
Heavy Flat
Bracket
Heavy
L-Bracket
3/8” Flat
Washer
3/8” Flat
Washer
