Step 50: Attach Utensil Shelves
Part 2
Hardware Other Parts
2 x #8 x 7/8” Truss Screw 1 x Utensil Shelf
1 x BBQ Utensils
1 x Basket with Fruit
S0

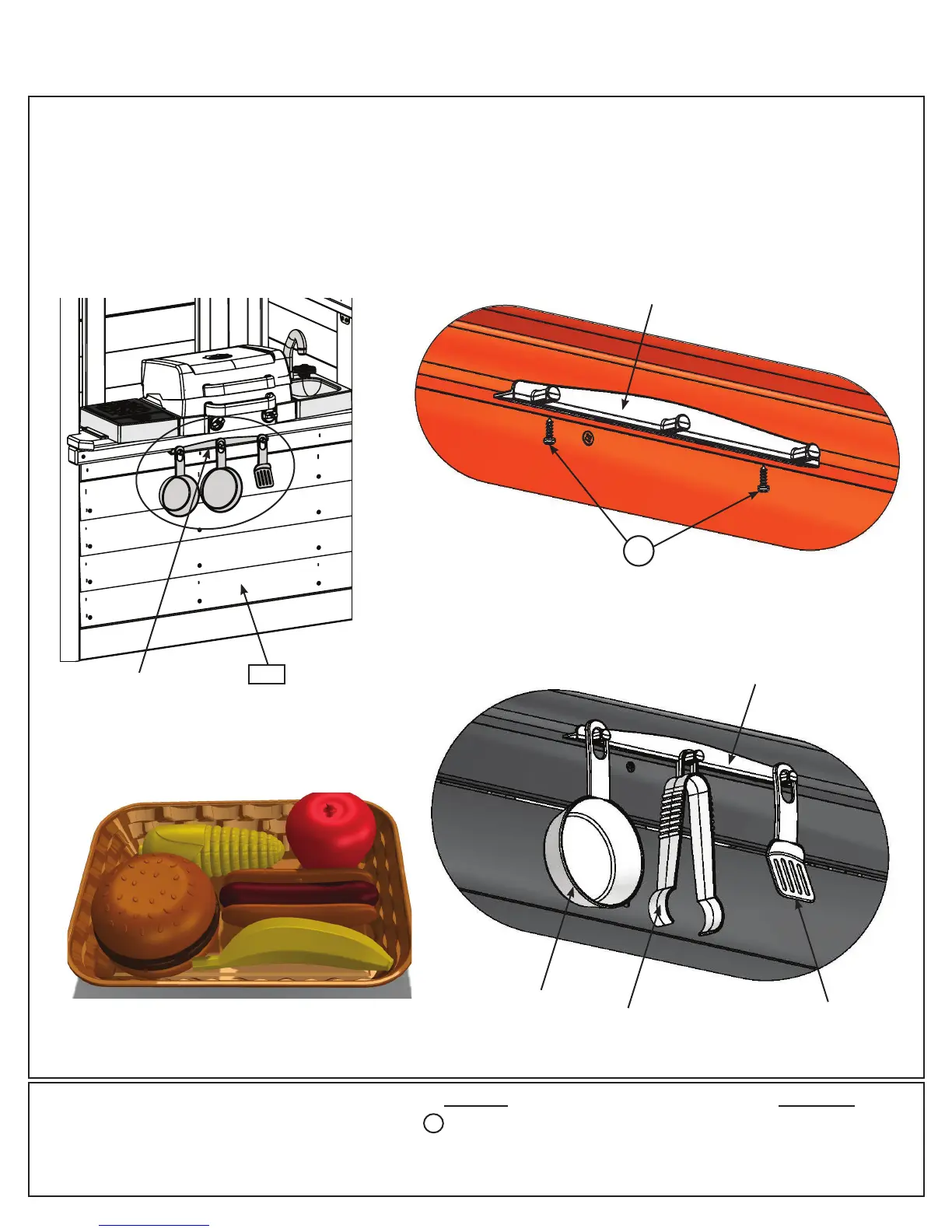

C: From outside the assembly, centred below the BBQ Kitchen attach 1 Utensil Shelf to (130) Table Support with
2 (S0) #8 x 7/8” Truss Screws as shown in g. 50.4 and 50.5.
D: Attach Pan, Tongs and Spatula to the Utensil Shelf. (g. 50.6)
E: Place Basket next to BBQ Kitchen on (131) Table Top. (g. 50.7)
Fig. 50.4
Fig. 50.5
Fig. 50.6
Fig. 50.7
051
S0
Utensil
Shelf
Utensil
Shelf
Spatula
Pan
Tongs
S0
Utensil
Shelf
Centred below the
BBQ Kitchen
