1 x Ladder Gap 1 x 4 x 21”
1 x Rock Rail 1-3/8 x 2-1/2 x 57-53/64”
1 x RW-AL Support 1 x 4 x 41-3/4”
024
025
023
Step 2: Access Ladder / Rockwall Assembly
Part 2
Wood Parts Hardware
3 x #8 x 2” Wood Screw
7 x #8 x 1-3/8” Wood Screw
Fig. 2.3
S11
x 4
S11
x 3 in bottom holes
x 3 in top holes
S20
S20
S20
023
2-3/8” gap between top
Tread and Ladder Gap
025
Flush
020
024
021
022

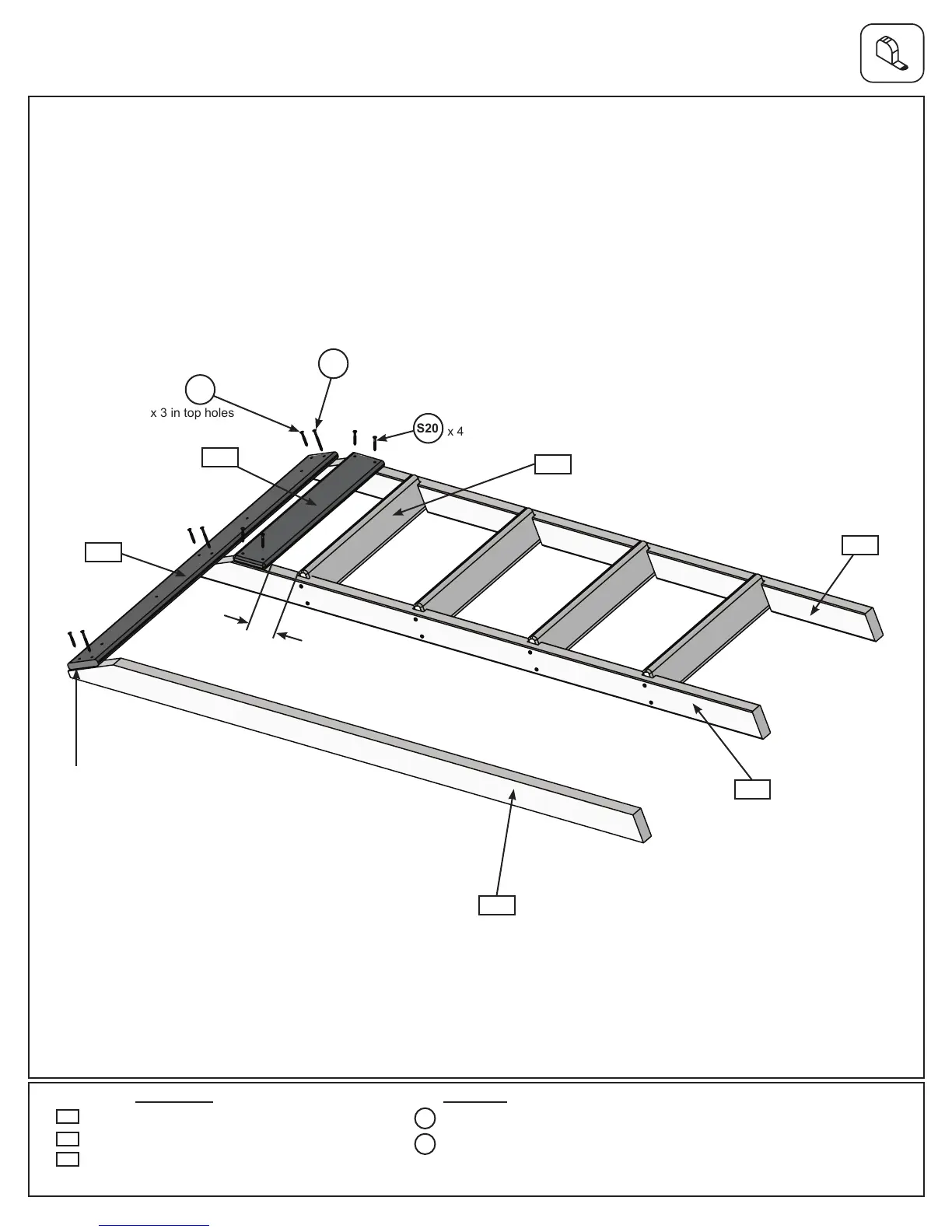

D: Place (023) Ladder Gap on each access rail so there is a 2-3/8” gap between (023) Ladder Gap and the top
(022) Tread. Attach using 4 (S20) #8 x 1-3/8” Wood Screws. (g. 2.3)
E: Place (024) Rock Rail on the ground next to (020) Left Access so it matches the orientation of the two access
rails as shown in g. 2.3. Attach (025) RW-AL Support ush to the top of Access Ladder assembly and (024)
Rock Rail using 3 (S20) #8 x 1-3/8” Wood Screws in the top holes and 3 (S11) #8 x 2” Wood Screws in the
bottom holes. Pilot holes in (025) RW-AL Support should be centred over the rails. (g. 2.3)
