Step 12: Door Panel Assembly
Part 2

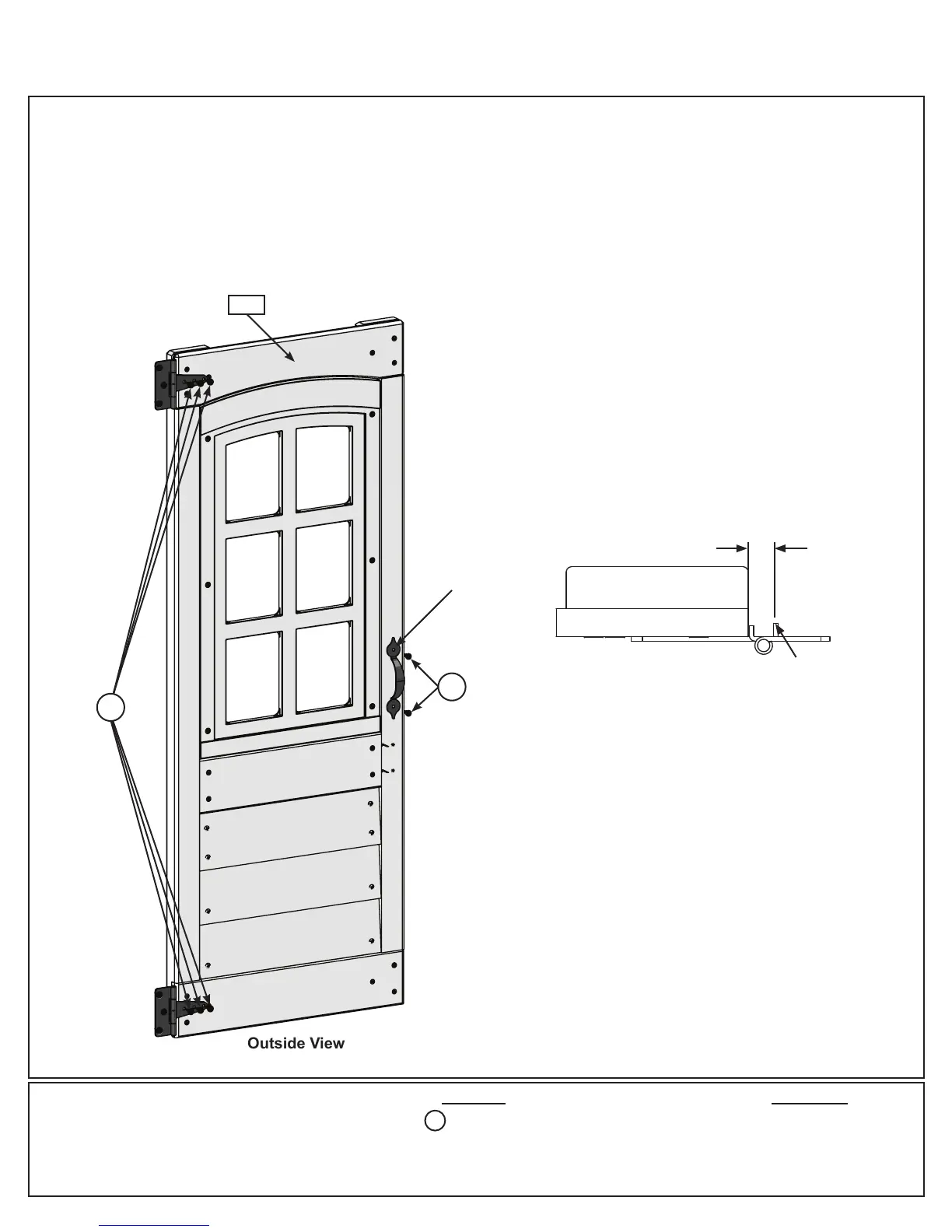

Fig. 12.3
Fig. 12.4
Outside View
1/2”
Hinge Stop
Hardware
C: On the outside of the (120) Door Window Panel attach the second Door Handle at approximately the same
place as the one on the inside. Use 2 (S37) #7 x 5/8” Pan Screws. (g. 12.3)
D: Attach 2 Door Hinges on the outside of the (120) Door Window Panel on the opposite side from the Door
Handle. Judge spacing based on g. 12.3. Use 3 (S37) #7 x 5/8” Pan Screws per Hinge.
Note: Hinge stops must be tight to (120) Door Window Panel. (g. 12.4)
8 x #7 x 5/8” Pan Screw
S37
Other Parts
1 x Door Handle
2 x Door Hinge
Top View
S37
120
Door
Handle
S37
