Cedar Summit F25720 - Page 50

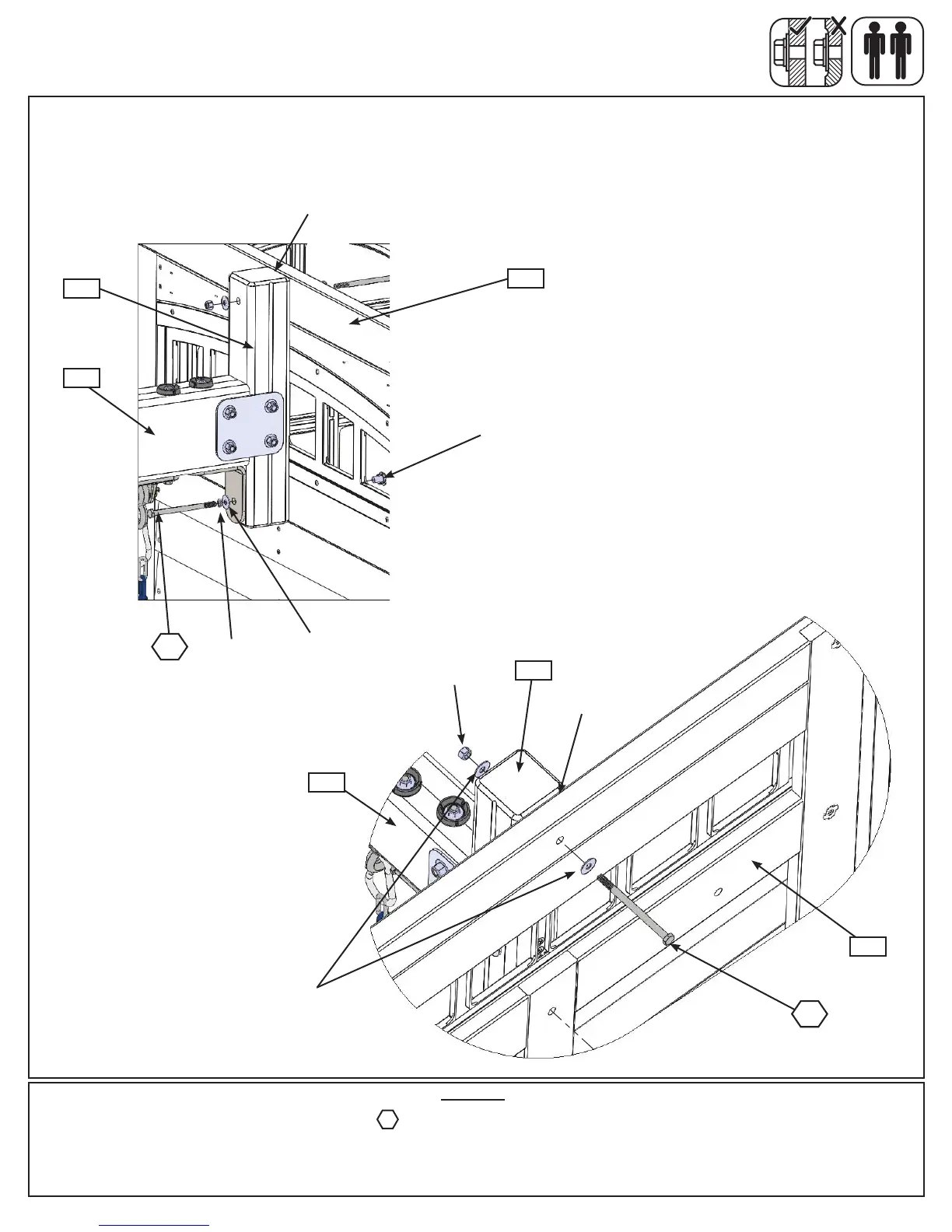

F: Place (151) SW Mount ush to the top of (050) SW Wall Panel. Attach with 1 (G5) 5/16 x 4-1/2” Hex Bolt
(with lock washer, at washer and t-nut) in the bottom hole from outside the assembly and 1 (G5) 5/16 x 4-1/2”
Hex Bolt (with 2 x at washer and 1 lock nut) in the top hole from inside the assembly. (g. 16.7 and 16.8)
Hardware
5/16”
T-Nut
5/16” Flat
Washer
Fig. 16.7
150
050
2 x 5/16 x 4-1/2” Hex Bolt
 (1-5/16”lockwasher,5/16”atwasher,5/16”t-nut)
 (1-5/16”atwasherx2,5/16”locknut)
G5
151
5/16” Lock
Washer
5/16” Lock Nut
5/16” Flat
Washer
G5
Step 16: Swing Post Assembly
Part 3
Flush
G5
050
151
150
Flush
Fig. 16.8
