Step 24: Crowsnest Wall Assembly
Part 2
Hardware
2 x Porch Post 1-1/4 x 2 x 51-9/16”
1 x Crowsnest Top 2 x 4 x 29-1/2”
241
242
Wood Parts
242
230
211
241
Fig. 24.2
5/16”
T-Nut
G11
5/16” Flat
Washer
5/16” Lock
Washer
2 x 5/16 x 3-1/2” Hex Bolt
 (5/16”atwasher,5/16”lockwasher,5/16”t-nut)
6 x #8 x 2” Wood Screw
G11

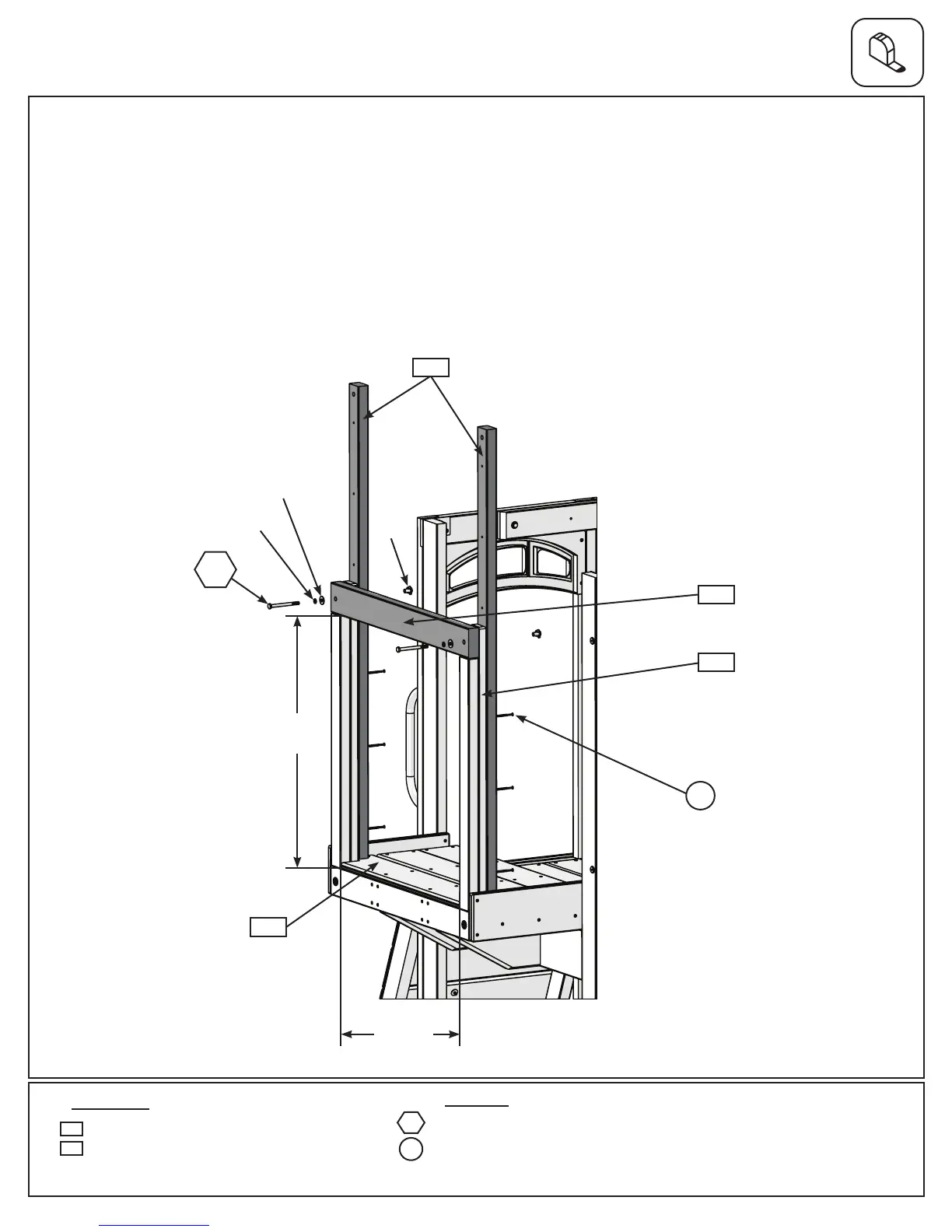

B: Loosely attach 1 (242) Crowsnest Top and 2 (241) Porch Posts to (211) Upright Crowsnest using 2 (G11) 5/16
x 3-1/2” Hex Bolts (with at washer, lock washer and t-nut) per side. (g. 24.2).
C: Attach (241) Porch Post ush to the edge of (211) Upright Crowsnest using 3 (S11) #8 x 2” Wood Screws per
board. (g. 24.2)
Thedistancebetween(242)CrowsnestTopand(230)CrowsnestGapBoardmustbe27”.Thedistance
between(211)UprightCrowsnestmustbe25-1/2”.Doublecheckthatdimensionsarecorrectandthen
tighten bolts.
27”
25-1/2”
S11
x 3 per board
S11
