Hardware
8 x #8 x 2-1/2” Wood Screw
S3
Step 24: Crowsnest Wall Assembly
Part 4

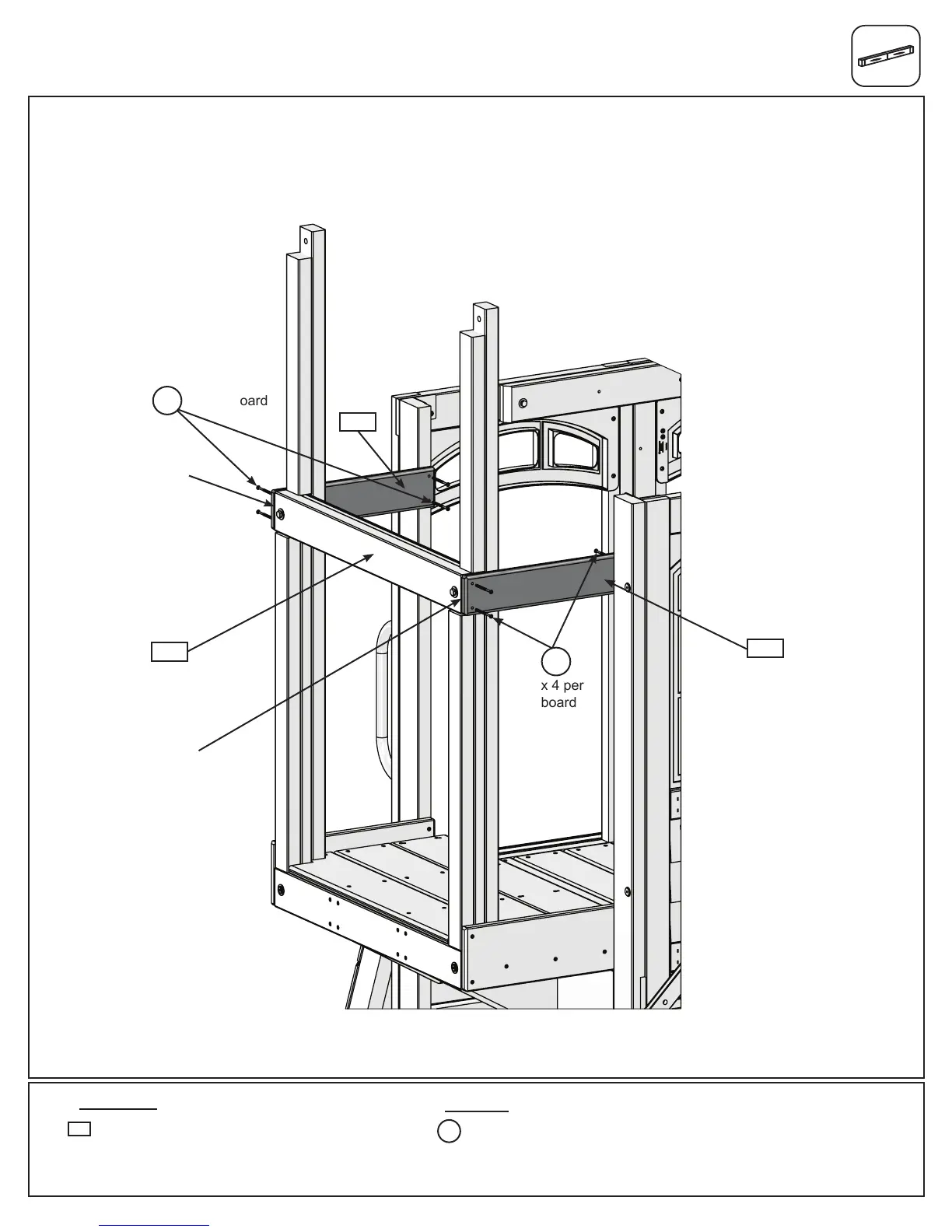

F: Place 1 (245) Crowsnest Side ush to the top and front of (242) Crowsnest Top make sure each board is level
then attach with 4 (S3) #8 x 2-1/2” Wood Screws per board. (g. 24.4)
2 x Crowsnest Side 3/4 x 3-1/4 x 14-3/4”
245
Wood Parts
S3
x 4 per board
x 4 per
board
Fig. 24.4
245
245
S3
244
Flush
Flush
