Hardware
C: Place 1 Roof Support Assembly against one side so the peaks meet and the ends of the roof supports are
ush with the ends of the roof panels. Attach with 8 (S11) #8 x 2” Wood Screws. (g.36.3)
D: Attach the second Roof Support Assembly on the opposite side, peaks to meet and ends are ush with 8
(S11) #8 x 2” Wood Screws. (g.36.3)

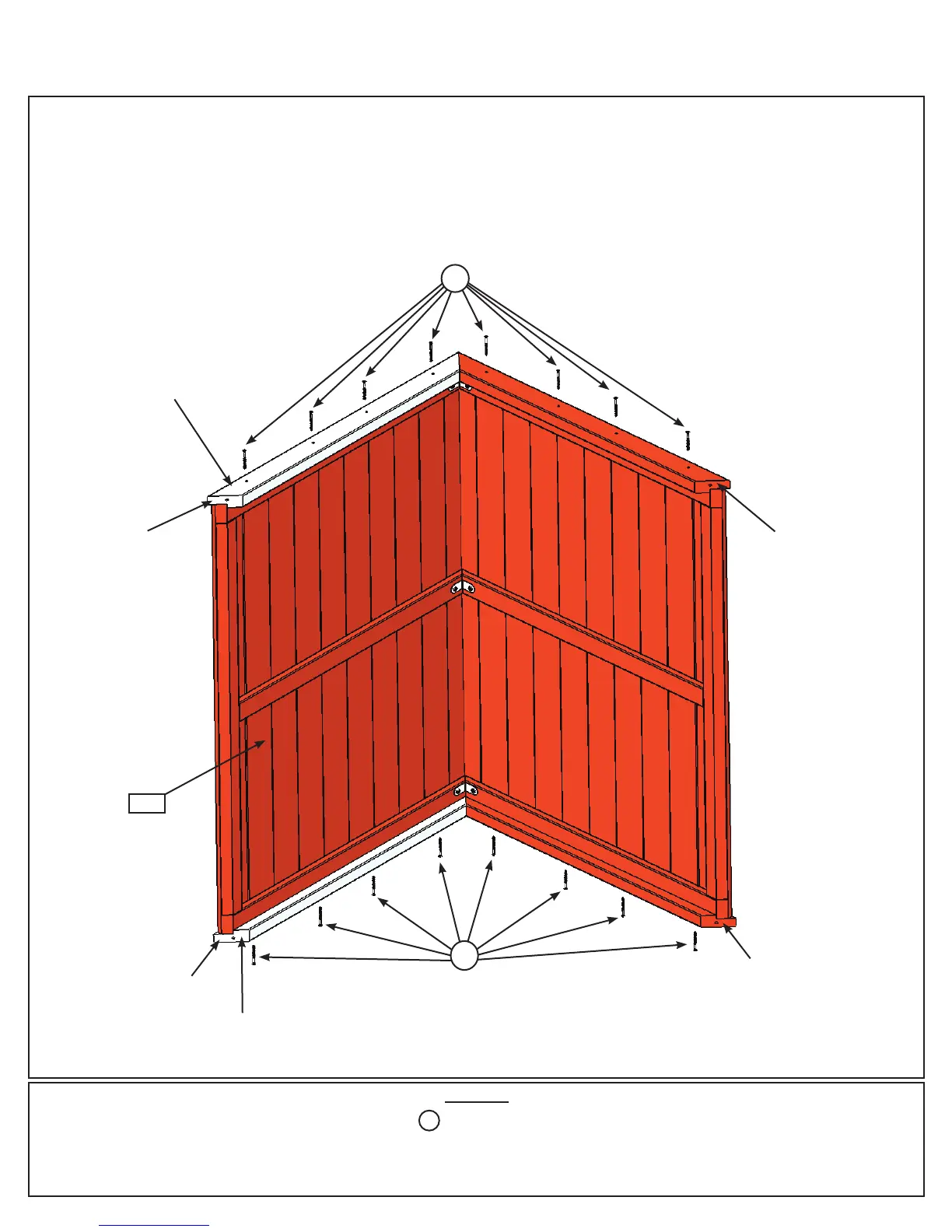

Fig. 36.3
Step 36: Large Roof Assembly
Part 2
16 x #8 x 2” Wood Screw
S11
Roof Support
Assembly
Roof Support
Assembly
Flush Flush
Flush
Flush
S11
361
S11
82 europecustomerservice@kidkraft.com
