Appendix: Photocell Taping
Vibrex 2000 and Vibrex 2000 Plus User Guide 159

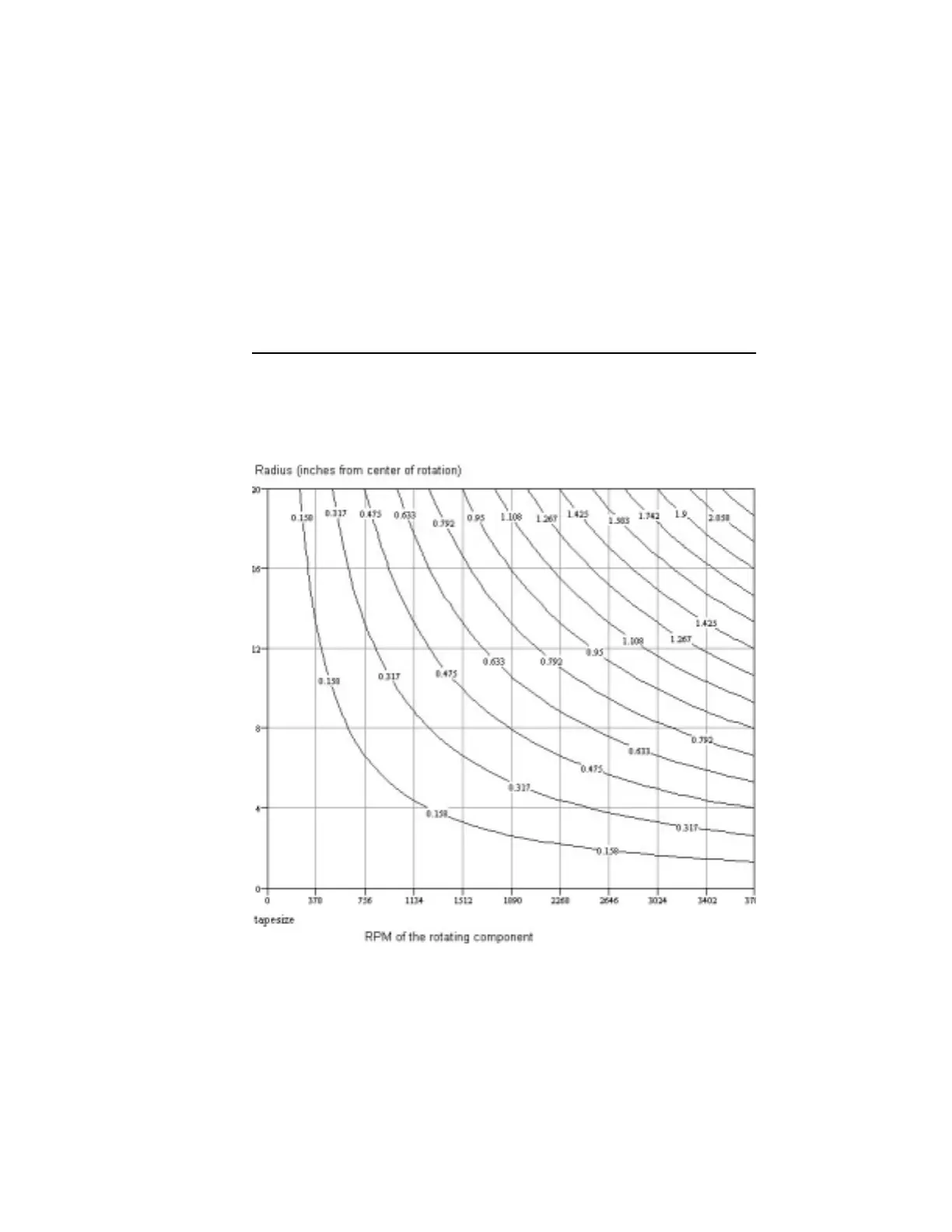

Numerical Graph
Use the following numerical graph to look up the minimum width of
retro-reflective tape necessary:
Working Example
This section shows how to use each of the three tape-width determination
methods given in this appendix to solve the following sample problem:
The user has placed the tape at 5 in. from the center of propeller
rotation and is doing a propeller balance operation at 2400 RPM.
