Programmable DC Electronic Load 63600
Series
Operation & Programming M
anual
5-
14

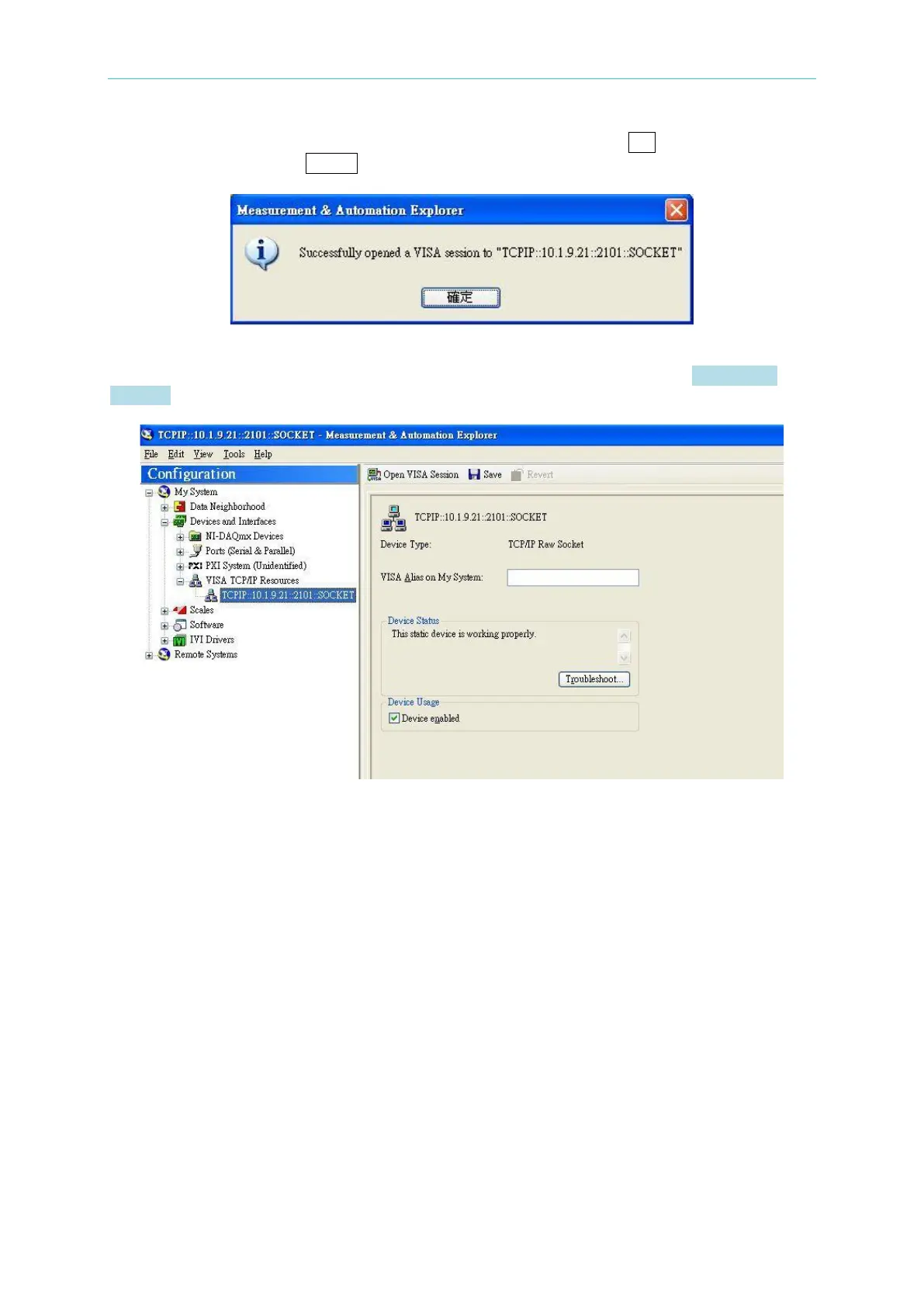

The following screen wi
ll prompt if it is connected successfully. Click
OK
to c
lose the
message dialog and click
Finish
to end it.
STEP 6
:
VISA TCP/
IP Resour
ce
will add to
Devices and Interfaces
. Select it
and click
Open VISA
Session
(
NI VISA
V
er.
3.0
).
145
147
Table of Contents
Default Chapter
17
Table of Contents
17
1 General Information
21
Introduction
21
Description
21
Key Features Overview
25
Mainframe
25
Load
25
Specifications
26
Dimension Outline of 63600 Series
35
2 Installation
41
Introduction
41
Inspection
41
Explanation of Taking Apart
42
Installing the Modules
43
Channel Number
45
Installing the Mainframe
45
Line Voltage
45
Turn-On Self-Test
46
Application Connection
47
Load Connections
47
Remote Sensing Connections
49
Parallel Connections
50
Multi-Mainframe Connections
50
Remote Control Connection
51
GPIB Card Setup
51
Ethernet Card Setup
52
3 Operation Overview
53
Introduction
53
Front Panel Description
54
Rear Panel Description
55
Local/Remote Control
57
Modes of Operation
58
Constant Current Mode
58
Constant Resistance Mode
62
Constant Voltage Mode
63
Constant Power Mode
64
Constant Impedance Mode
65
Load ALL RUN
65
Measurements
65
Slew Rate & Minimum Transient Time
66
Start/Stop Sink Current
66
Short On/Off
68
Digitizing Function
68
Timing Measurement Function
69
Sine Wave Dynamic
70
OCP Test Function
71
Program Sequences Function
71
Load On/Off
71
Protection Features
71
Save/Recall Setting
75
External Waveform Control
76
Voltage & Current Monitor
76
4 Local Operation
77
Introduction
77
Front Panel Keys & Indicators
78
Front Panel Keys & Indicators of the Mainframe
78
Front Panel Keys and Indicators of the Load Module
79
Selecting the Channel for a Dual Channel Module
83
Setting Operation Mode of Static Load
83
Setting the Operation Mode
84
Setting CC Values
84
Setting CR Values
86
Setting CV Values
88
Setting CP Values
90
Setting CZ Values
92
Setting Operation Mode of Dynamic Load
93
Setting the Operation Mode to CC Mode
93
Select the Operation Mode of Dynamic Load
94
Setting Dynamic Load Values
94
Setting Dynamic Load Frequency Sweep Values
96
Setting the Advance Function
99
Setup of Timing Measurement Function
99
Setup of Sine Wave Dynamic Function
101
Setup of OCP Test Function
101
Setup of Program Sequences Function
103
Running the Program Sequences Function
109
MPP Tracker
109
User Defined Waveform
111
Setting the Configuration
111
Setup of System Configuration
112
Setup of Specification
115
Setup of REMOTE
116
Setup of Parallel
118
Setup of Synchronous Dynamic Mode
119
Recall Factory Default
120
Display Model Information
122
Setup of Digitizing Function
123
Recalling Files
125
Saving File/Default
125
Going to Local
125
Lock Operation
125
Universal Serial Bus (USB) Port
126
System Bus Port
126
Connecting the System I/O Port
126
Using the Synchronous Cable
130
5 Remote Operation
133
General Introduction
133
GPIB Address
133
GPIB Capability of the Electronic Load
133
USB in Remote Control
134
Ethernet in Remote Control
134
Selecting the LAN Type to be Connected
135
Setting Network Parameter (IP, Subnet Mask, Gateway)
137
Confirming Network Connection Is Successful
142
Communicating with Instruments
143
Introduction to Programming
148
Basic Definition
148
Numerical Data Formats
149
Character Data Formats
150
Arbitrary Block Data Format
150
Separators and Terminators
151
Language Dictionary
152
Common Commands
152
Specific Commands
156
ABORT Subsystem
156
ADVANCE Subsystem
157
CHANNEL Subsystem
169
CONFIGURE Subsystem
171
CURRENT Subsystem
179
DIGITIZING Subsystem
187
FETCH Subsystem
191
IMPEDANCE Subsystem
195
LOAD Subsystem
197
MEASURE Subsystem
199
MODE Subsystem
201
POWER Subsystem
202
PROGRAM Subsystem
204
RESISTANCE Subsystem
210
RUN Subsystem
212
SHOW Subsystem
212
SYNCHRONOUS Subsystem
213
SPECIFICATION Subsystem
214
STATUS Subsystem
218
VOLTAGE Subsystem
222
SYSTEM Subsystem
224
6 Status Reporting
229
Introduction
229
Register Information in Common
229
Channel Status
231
Channel Summary
232
Questionable Status
232
Output Queue
232
Standard Event Status
233
Status Byte Register
233
Service Request Enable Register
234
7 Verification
235
Introduction
235
Equipment Required
235
Performance Tests
235
CC Mode Verification
235
Checking High Current Range
236
Checking Medium Current Range
237
Checking Low Current Range
238
CR Mode Verification
239
Checking High Ohm Range
239
Checking Medium Ohm Range
240
Checking Low Ohm Range
241
CV Mode Verification
241
Checking High Voltage Range
241
Checking Medium Voltage Range
242
Checking Low Voltage Range
243
CP Mode Verification
243
Checking High Power Range
244
Checking Medium Power Range
244
Checking Low Power Range
245
Dynamic & Slew Rate Circuit Test
246
Checking Dynamic Constant Current High Range
247
Checking Dynamic Constant Current Medium Range
247
Checking Dynamic Constant Current Low Range
248
Appendix A Precautions for Loading Battery
249
Measures for Improvement
250
Additional Protection Switch
250
Operation
251
A.1.2 Operation
251
Appendix B How to Use 63600 UDW to Download Softpanel
255
5
Based on 1 rating
Ask a question
