Programmable DC Electronic Load 63600 Series Operation & Programming Manual
4.2 Front Panel Keys & Indicators
4.2.1 Front Panel Keys & Indicators of the Mainframe

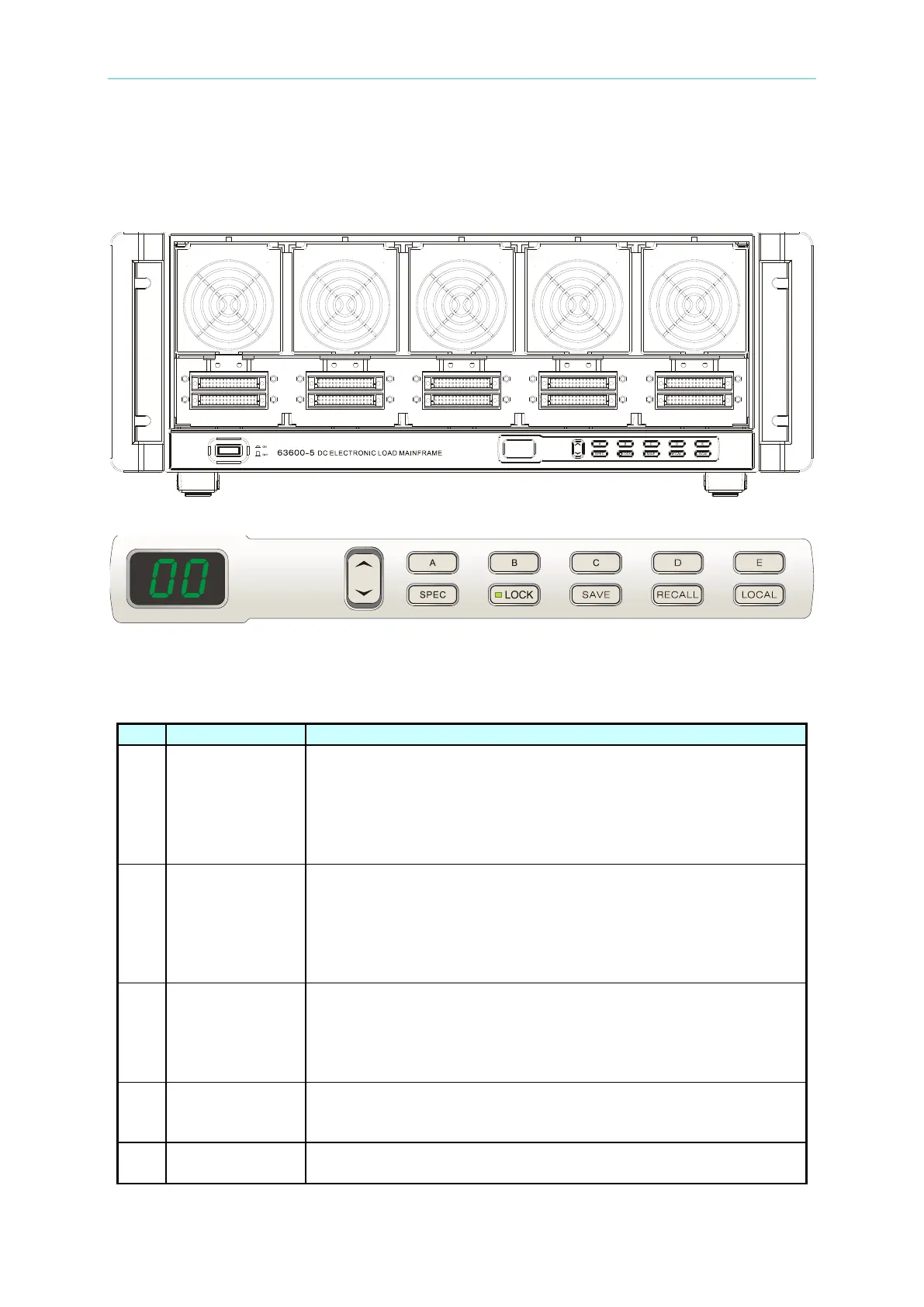

Figure 4-1 Front Panel of the 63600-5 Mainframe
Figure 4-2 Front Panel Keys and Indicators of the 63600-5 Mainframe
Front Panel Keys and Indicators (mainframe)
Table 4-1 Description of Front Panel for the Mainframe
SPEC key enables the SPEC function for all channel’s GO/NG
inspection.
PS: The electronic load allows the user to program specification
at configuration for Voltage in CC/CR/CP/CZ/DYNA/SWP mode,
and Current in CC/CR/CV/CP mode, and Power in
This system provides data lock feature in order that the stored
data will only be erasable by authorized user. When data lock is
enabled, any data enter is prohibited and this LED indicator lights
up when any data key is pressed.
To change lock or unlock state, the user must press and hold this
key for at least 2 seconds.
To save the entire present mode settings of all channels in the
specified files (00 to 99). Saving DEFAULT is to save the status
of all channels for the next time the electronic load is turned on.
All saved settings are stored in EEPROM, and will not lose when
ac power is cycled. The memory channel indicated on the LED.
To recall the saved settings from EEPROM, and all channel’s
settings from specified files (00 to 99).
The memory channel indicated on the LED
Local key can recover local control of each module when the
Load module is running under remote control mode.
