7.3.5.3 Checking Dynamic Constant Current Low Range
A. First, press till VFD shows CC and press to light up the L range LED
indicator.
B. Press to enter into Dynamic Constant Current setting. The settings are listed in
Table 7-19.
C. Set the DC Source output voltage to 5V and the limit current needs to be larger than the
highest level set by dynamic constant current. (EX: When the 63630-600-15 H level is
set to 0.15A, the DC Source limit current can set to 0.5A.)
Table 7-19
Model
H
L
T1
T2
SR/
SR\
63630-600-15
150mA
0A
10ms
10ms
15m A/μs
15m A/μs
63640-150-60
0.6A
0A
10ms
10ms
0.06 A/μs
0.06 A/μs
63630-80-60
0.6A
0A
10ms
10ms
0.06 A/μs
0.06 A/μs
63610-80-20
0.2A
0A
10ms
10ms
0.02 A/μs
0.02 A/μs
63640-80-80
0.8A
0A
10ms
10ms
0.08 A/μs
0.08 A/μs

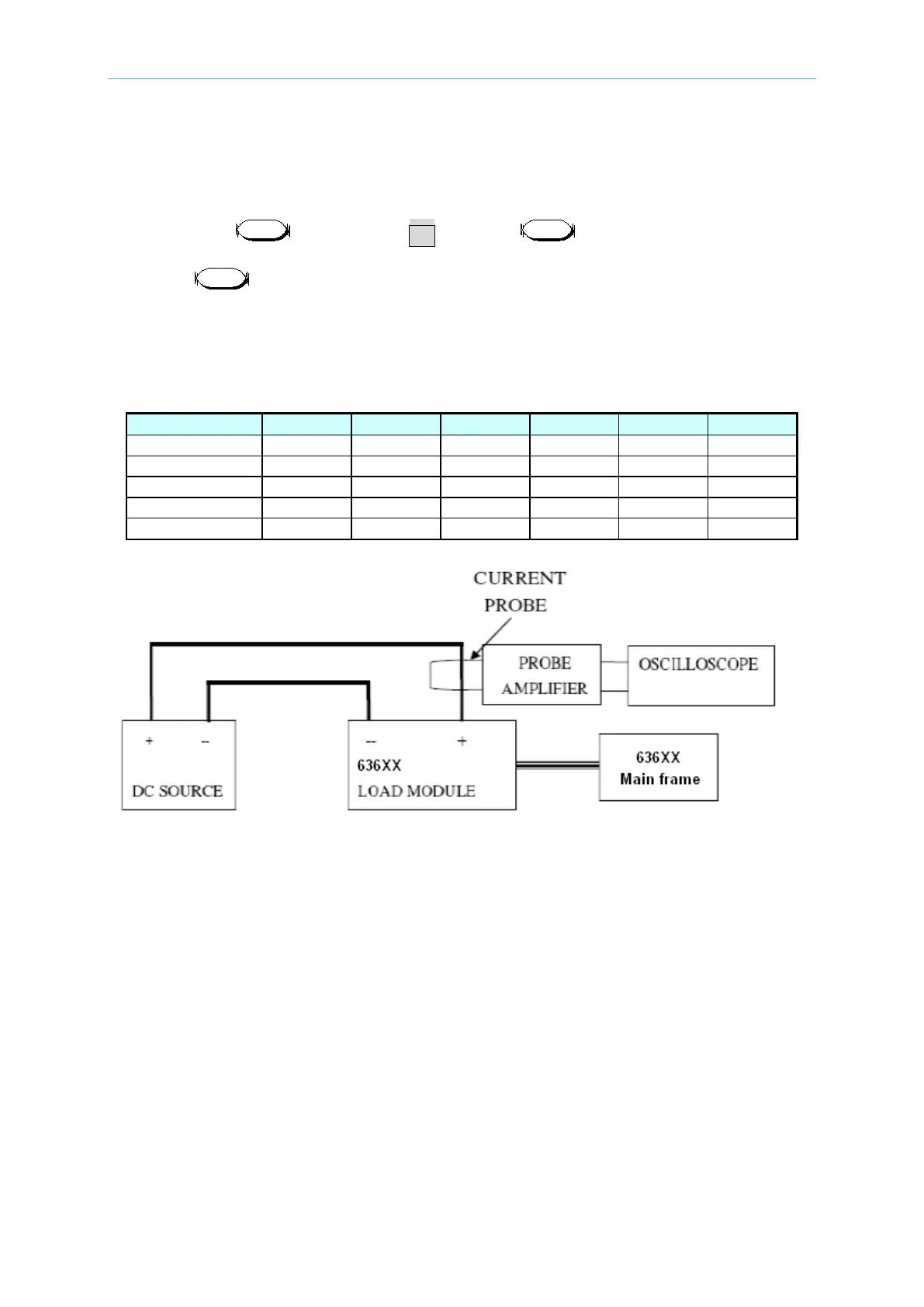

Figure 7-3
MODE
RANGE
EDIT
