Operation Overview

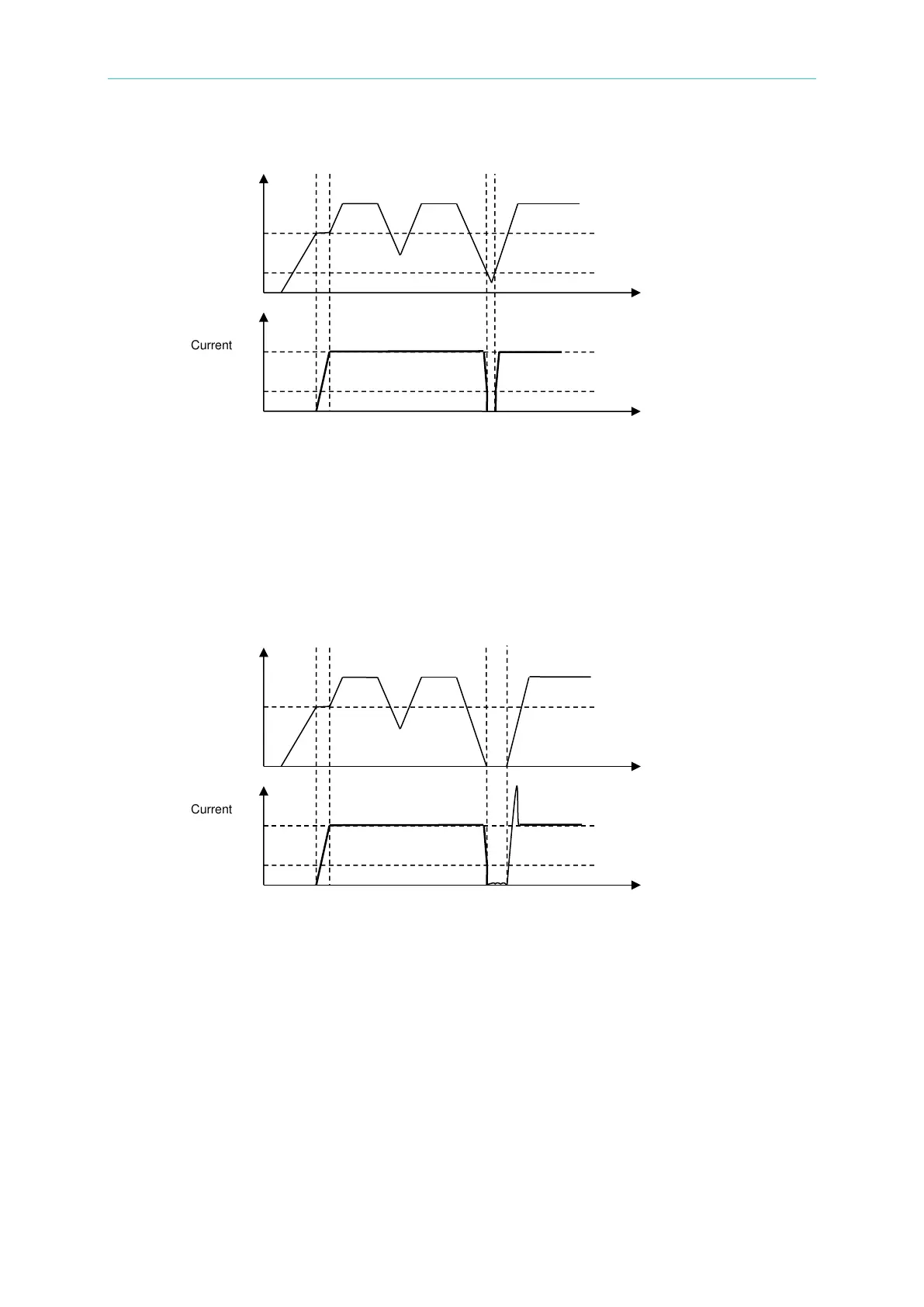

Figure 3-26 When Von Point is not set to 0V with Protection
(4) When the Von Point is not set to 0V and the LVP sets no protection during “LOAD ON”,
turn off the SW after it is turned off a period of time and then turn the SW off again.
Current loading continues when there is no power as shown in Figure 3-27. Current
overshoot may occur when the SW is off with power input. It could damage the UUT and
Electronic Load under this circumstance.
Figure 3-27 When Von Point is not set to 0V without Protection
3.18 Save/Recall Setting
The Electronic Load setting for all channels can be saved and recalled for various test setup
use. In the Save file 00~99, each file has the settings of Configure, CC, CR, CV, CP, CZ,
CCD, CCFS, TIMING, SINE WAVE DYNAMIC and OCP TEST without AUTO SEQUENCE.
Moreover, there is an addition file for power on setting file which the contents are the same
as File 0 ~ 99. Once there is a Load on or it is exited from Configure screen during normal
operation, the present settings will be saved in this file. When the SAVE key is pressed, it will
not only save the settings to the file user specified but also save them to the Power On file.
To recall the saved settings (file 00~99), press ▲or ▼ key to adjust the file number (file
