Chroma 63600-2 User Manual

Verification
7-13

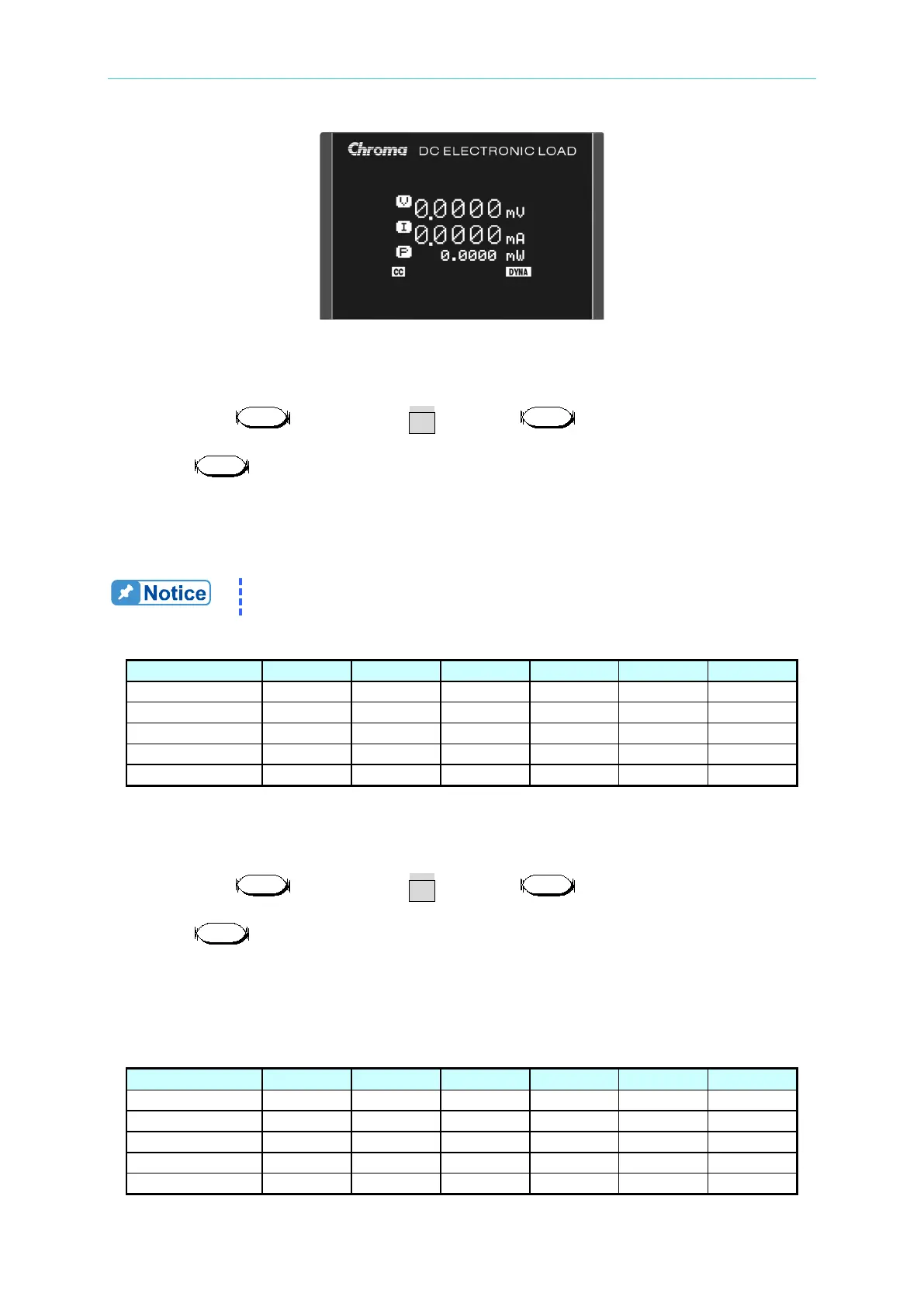

7.3.5.1 Checking Dynamic Constant Current High Range
A. First, press till VFD shows CC and press to light up the H range LED
indicator.
B. Press to enter into Dynamic Constant Current setting. The settings are listed in
Table 7-17.
C. Set the DC Source output voltage to 5V (hint: Set to 7V for Model 63630-600-15), the
limit current needs to be larger than the highest level set by dynamic constant current.
(EX: When the 63630-600-15 H level is set to 15A, the DC Source limit current can set
to 17A.)
When the 63640-150-60 is doing dynamic loading, the minimum working
voltage should be larger than 2.5V.
Table 7-17
Model
H
L
T1
T2
SR/
SR\
63630-600-15
15A
0A
10ms
10ms
1.5 A/μs
1.5 A/μs
63640-150-60
60A
1A
10ms
10ms
6 A/μs
6 A/μs
63630-80-60
60A
0A
10ms
10ms
6 A/μs
6 A/μs
63610-80-20
20A
0A
10ms
10ms
2 A/μs
2 A/μs
63640-80-80
80A
0A
10ms
10ms
8 A/μs
8 A/μs
7.3.5.2 Checking Dynamic Constant Current Medium Range
A. First, press till VFD shows CC and press to light up the M range LED
indicator.
B. Press to enter into Dynamic Constant Current setting. The settings are listed in
Table 7-18.
C. Set the DC Source output voltage to 5V and the limit current needs to be larger than the
highest level set by dynamic constant current. (EX: When the 63630-600-15 H level is
set to 1.5A, the DC Source limit current can set to 2A.)
Table 7-18
Model
H
L
T1
T2
SR/
SR\
63630-600-15
1.5A
0A
10ms
10ms
0.15 A/μs
0.15 A/μs
63640-150-60
6A
0A
10ms
10ms
0.6 A/μs
0.6 A/μs
63630-80-60
6A
0A
10ms
10ms
0.6 A/μs
0.6 A/μs
63610-80-20
2A
0A
10ms
10ms
0.2 A/μs
0.2 A/μs
63640-80-80
8A
0A
10ms
10ms
0.8 A/μs
0.8 A/μs
MODE
RANGE
EDIT
MODE
RANGE
EDIT
