Local Operation
indicator
A total of 100 sets of memory are built in the Load module for
storage of programmed setup. The user can save into (or recall
from) any memory channel from 00 to 99, a pre-programmed
Up and Down keys enables the user change memory channel
number for save and recall.
Mnemonic keys
These 5 mnemonic keys allow users to define and save 5 sets of
loading profile for all channels so that users can switch the load.
(Press and hold the key for 3 seconds can save the profile
4.2.2 Front Panel Keys and Indicators of the Load Module
There are two types of panels in Load module, single channel module panel and dual
channel module panel. They are almost the same, but only different from one key and the
amount of the connectors.
The single channel module means there is one channel in one module. The dual channel
module means there are two channels in one module. Each channel is isolated from the
other. The module display/keypad can control both channels. The left channel is called
channel L while the right one is channel R.

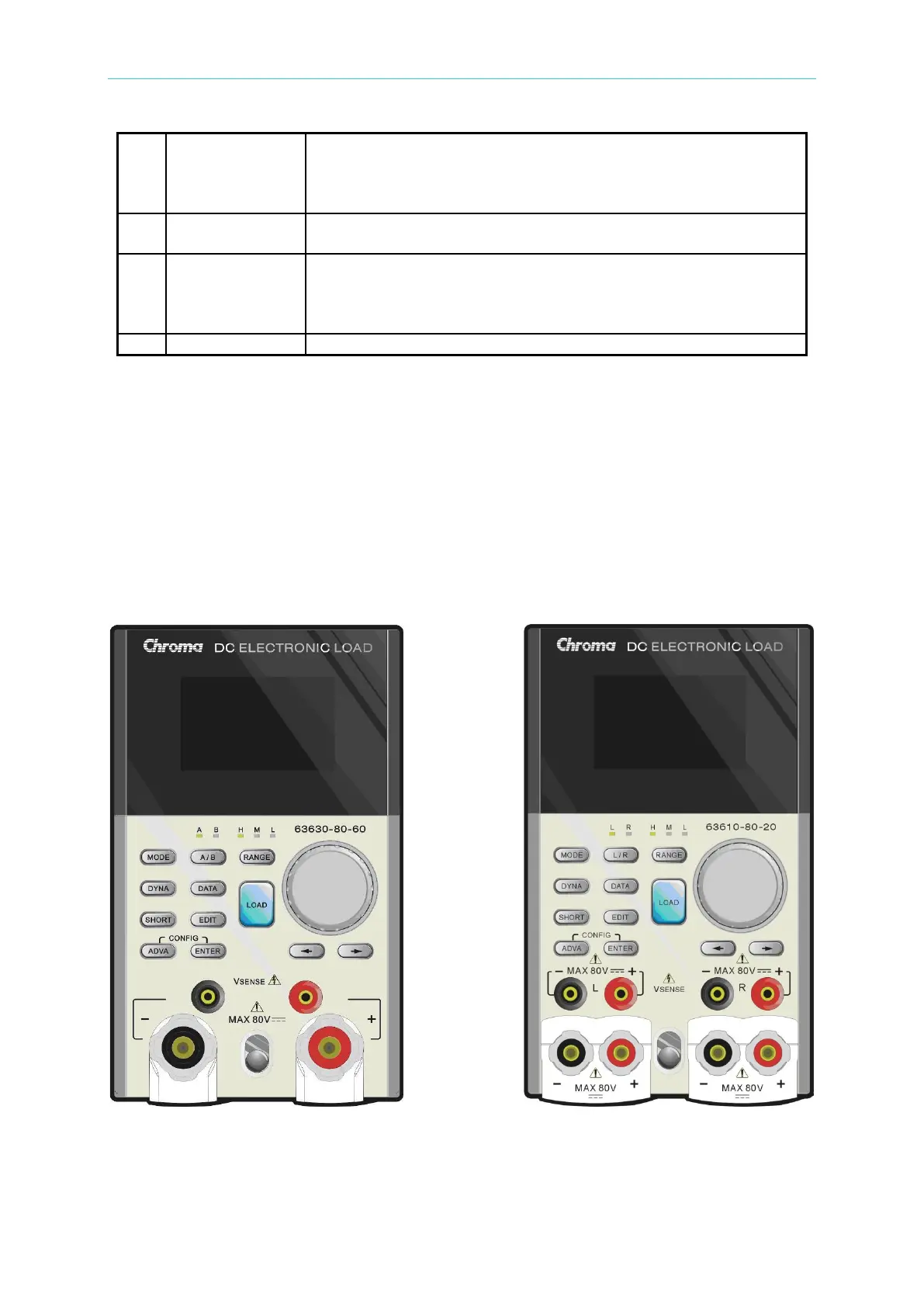

A. Single Channel Module B. Dual Channel Module
Figure 4-3 Front Panel of the Module
