(4) Carefully insert a pry bar between lower control
arm and steering knuckle (Fig. 11), to separate ball
joint stud from steering knuckle (Fig. 11). Note: Use
caution when separating ball joint stud from
steering knuckle so ball joint seal does not get
cut.
CAUTION: Pulling steering knuckle out from vehicle
after releasing from ball joint can separate inner
tripod joint. See Driveshafts.
(5) Remove ground strap from cradle assembly.
Ground strap is located on right side of cradle below
half shaft (Fig. 12).
(6) Remove the 4 nuts attaching motor mounts to
cradle assembly (Fig. 13).
(7) Remove the 4 bolts attaching transaxle mount
to rear of cradle assembly (Fig. 14).

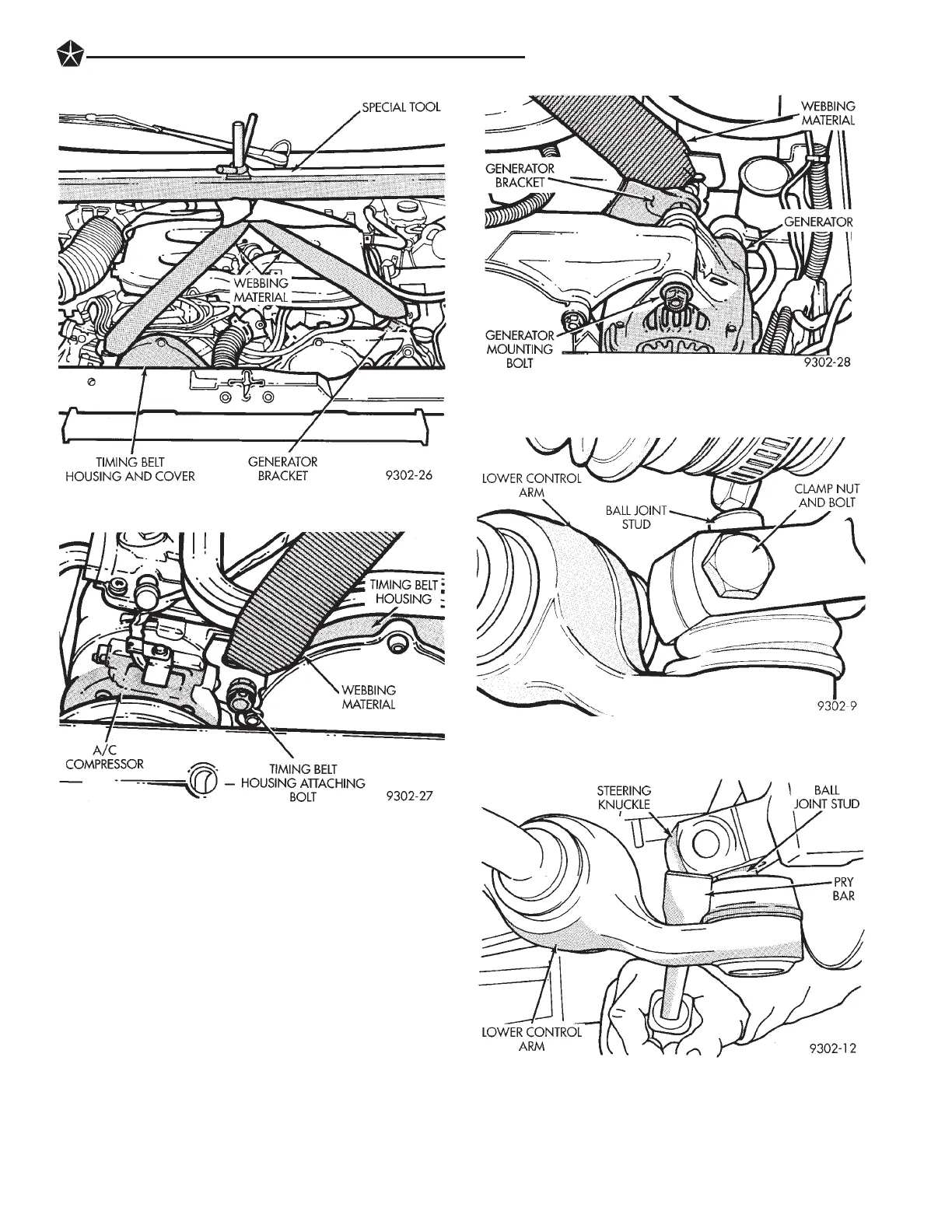

Fig. 9 Front Engine Support Attachment To
Generator Bracket
Fig. 10 Control Arm To Steering Knuckle
Attachment
Fig. 11 Separating Ball Joint From Steering Knuckle
Fig. 7 Engine Supporting Fixture Installed 3.5 Ltr.
Fig. 8 Front Engine Support Attachment To Timing
Belt Housing
SUSPENSION AND DRIVESHAFTS 2 - 25
