(8) Remove the 2 bolts each, attaching the stabi-
lizer bushing retainer and bushing to cradle assem-
bly (Fig. 15).
WARNING: THE JACK STANDS ARE REQUIRED TO
SUPPORT CRADLE ASSEMBLY AND TRANSAXLE
ASSEMBLY DURING CRADLE ASSEMBLY RE-
MOVAL FROM VEHICLE. DO NOT ATTEMPT TO RE-
MOVE CRADLE WITHOUT USING JACK STANDS TO
SUPPORT COMPONENTS.
(9) Position a jack stand under front of cradle and
at center of transaxle to cradle assembly mount (Fig.
16). Raise jack stand at transaxle mount until tran-
saxle mount just lifts off cradle assembly.

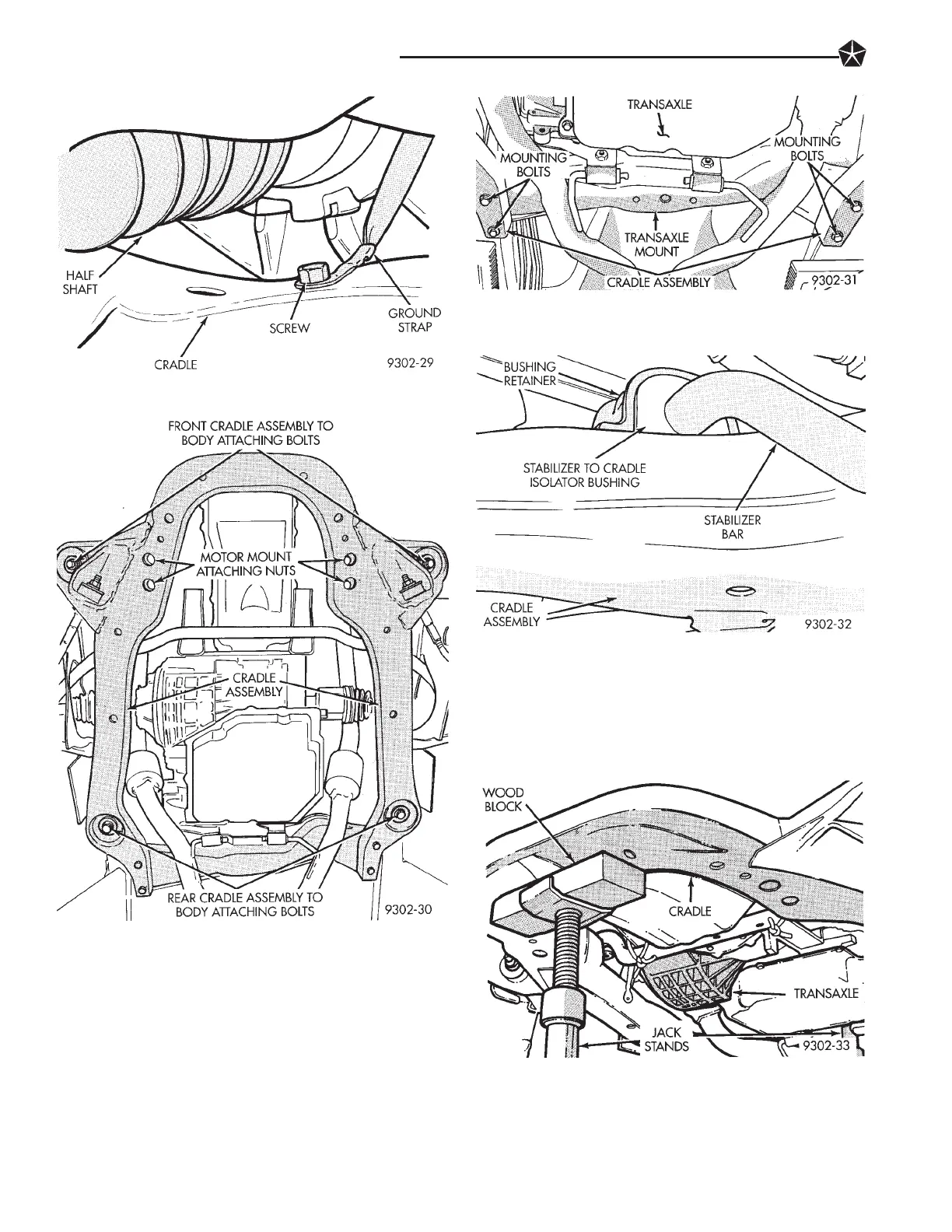

Fig. 12 Ground Strap
Fig. 13 Motor Mount To Cradle Assembly
Attachment
Fig. 14 Transmission Mount To Cradle Assembly
Mounting Bolts
Fig. 15 Stabilizer Bar Isolator Bushing Attachment
To Cradle
Fig. 16 Jack Stands Supporting Cradle And
Transaxle
