Displays the current date and time.Date and time display1
Displays the phone number (directory number) for your primary
phone line.
Primary phone line2
Programmable buttons can serve as phone line buttons, intercom
line buttons, speed-dial buttons, phone service buttons, call feature
buttons, or local feature buttons.
Programmable button
indicators
3
Icons and text descriptions indicate how these buttons are
configured. For an icon reference, see Line and Call Icons, on page
6.
Each displays a softkey function.Softkey labels4
Displays audio mode icons, status information, and prompts.Status line5

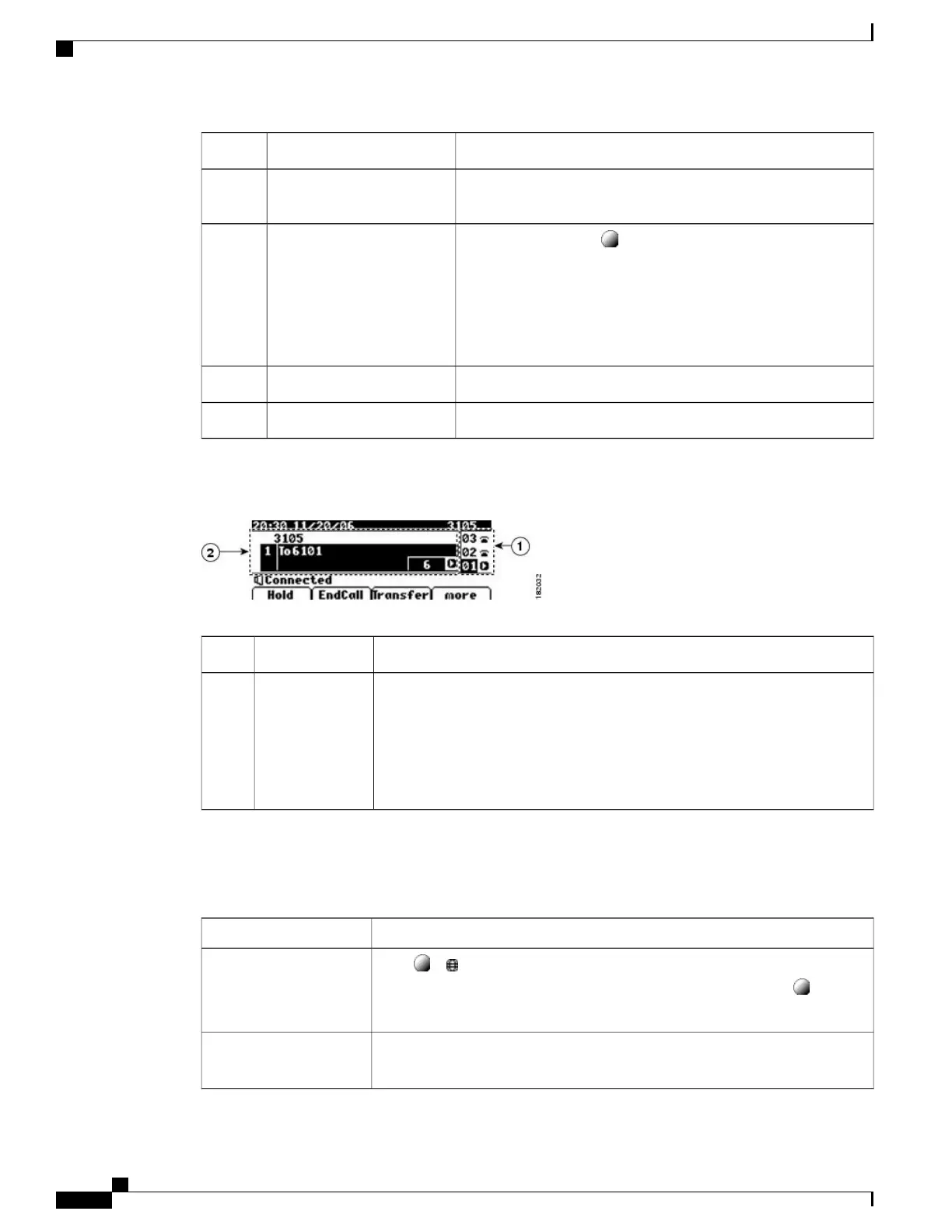

The following figure is what your phone screen may look like when connected to a call. This view is called
“Details.”
Displays line number and icon state for all lines.Overview1
Displays details about the assigned call and local features for the selected line
key; in this example, information about the connected call displays, such as
Details View2
directory number, time connected, and call status display. Use the Navigation
button to scroll and view details about other lines.
Call and local features display label names and icons in their Details view. See
Line and Call Icons, on page 6.
Application Menu Navigation
Use the Applications menu to access local phone features.
Then...If you want to...
Press > to display a list of Applications: Messages, Directory, Settings,
Services, and Help. Typically, the Application menu is assigned to button
24, located at the top of the left column.
Access the Application
menu
Use the Navigation button.Scroll through a list or
menu
Cisco Unified IP Phone 7931G User Guide for Cisco Unified Communications Manager 9.0 (SCCP and SIP)
8
Features of Your Cisco Unified IP Phone
Application Menu Navigation

Cisco 7931G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Electromagnetic compatibility	FCC Part 15 (CFR 47) Class B, ICES-003 Class B, EN55022 Class B, CISPR22 Class B, AS/NZS CISPR 22 Class B, CISPR 24, VCCI Class B, EN55024, EN 50082-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1
Wi-Fi	No
Networking standards	IEEE 802.1Q, IEEE 802.1af, IEEE 802.1p
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	DHCP, TFTP, CDP
Lines quantity	24 lines
Phonebook capacity	- entries
Number of VoIP accounts	-
Voice codecs	G.711a, G.729A, G.729B, G.729ab
Volume control	Digital
Display resolution	192 x 64 pixels
Display number of lines	3 lines
Display number of colors	Monochrome
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Safety	(UL) 60950, (CSA) C22.2 No. 60950, EN 60950, IEC 60950, AS/NZS60950, TS 001
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	229 mm
Width	203 mm
Height	178 mm
Weight	1360 g
