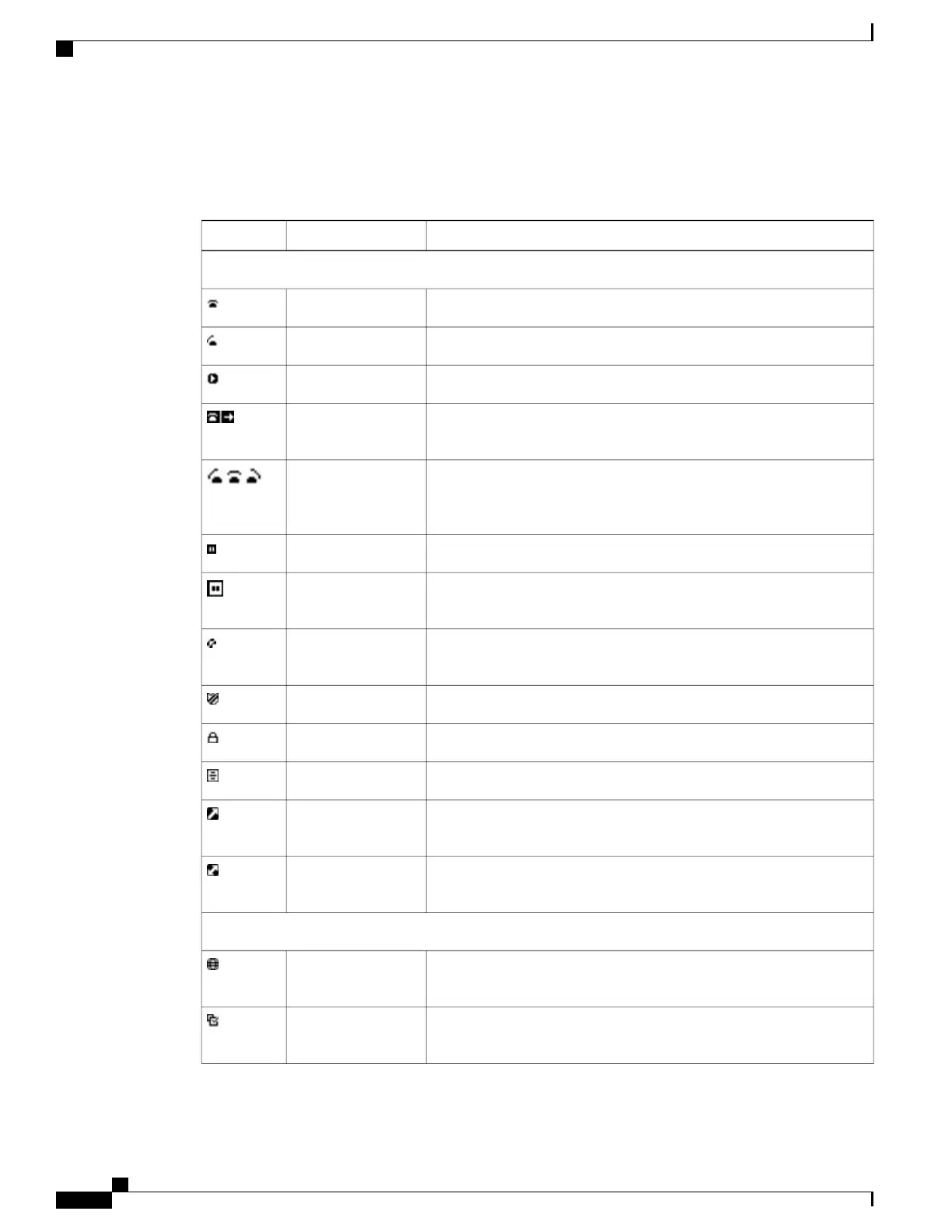

Line and Call Icons
Your phone displays icons to help you determine the line and call state and feature accessibility on each line.
DescriptionLine or call stateIcon
Call State
No call activity on this line.On-hook line
You are dialing a number or an outgoing call is ringing.Off-hook line
You are connected to the other party.Connected call
Call forwarding is enabled on this line.Call Forwarding
enabled
A call is ringing on one of your lines, or a BLF- monitored line is ringing
(Busy Lamp Field (BLF) Pickup). See Busy Lamp Field Features, on
page 45.
Ringing call
You have put the call on hold. See Hold and Resume, on page 24.Call on hold
Another phone that shares your line has put a call on hold. See Hold
and Resume, on page 24.
Remote call on hold
Another phone that shares your line has a connected call. See Shared
Lines, on page 43.
Remote-in-use
See Secure Calls, on page 46.Authenticated call
See Secure Calls, on page 46.Encrypted call
The intercom line is not in use. See Intercom Calls, on page 36.Idle Intercom line
The intercom line is sending or receiving one-way audio. See Intercom
Calls, on page 36.
One-way intercom
You press the intercom line to activate two-way audio with the intercom
caller. See Intercom Calls, on page 36.
Two-way intercom
Feature Access
The Application menu is assigned to this line key. See Application
Menu Navigation, on page 8.
Application menu
The Settings menu is assigned to this line key. See Phone
Customization, on page 59.
Settings menu
Cisco Unified IP Phone 7931G User Guide for Cisco Unified Communications Manager 9.0 (SCCP and SIP)
6
Features of Your Cisco Unified IP Phone
Line and Call Icons

Cisco 7931G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Electromagnetic compatibility	FCC Part 15 (CFR 47) Class B, ICES-003 Class B, EN55022 Class B, CISPR22 Class B, AS/NZS CISPR 22 Class B, CISPR 24, VCCI Class B, EN55024, EN 50082-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1
Wi-Fi	No
Networking standards	IEEE 802.1Q, IEEE 802.1af, IEEE 802.1p
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	DHCP, TFTP, CDP
Lines quantity	24 lines
Phonebook capacity	- entries
Number of VoIP accounts	-
Voice codecs	G.711a, G.729A, G.729B, G.729ab
Volume control	Digital
Display resolution	192 x 64 pixels
Display number of lines	3 lines
Display number of colors	Monochrome
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Safety	(UL) 60950, (CSA) C22.2 No. 60950, EN 60950, IEC 60950, AS/NZS60950, TS 001
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	229 mm
Width	203 mm
Height	178 mm
Weight	1360 g
