Chapter 3 Installing the Cisco IP Phone
Connecting the Cisco IP Phone to the Network

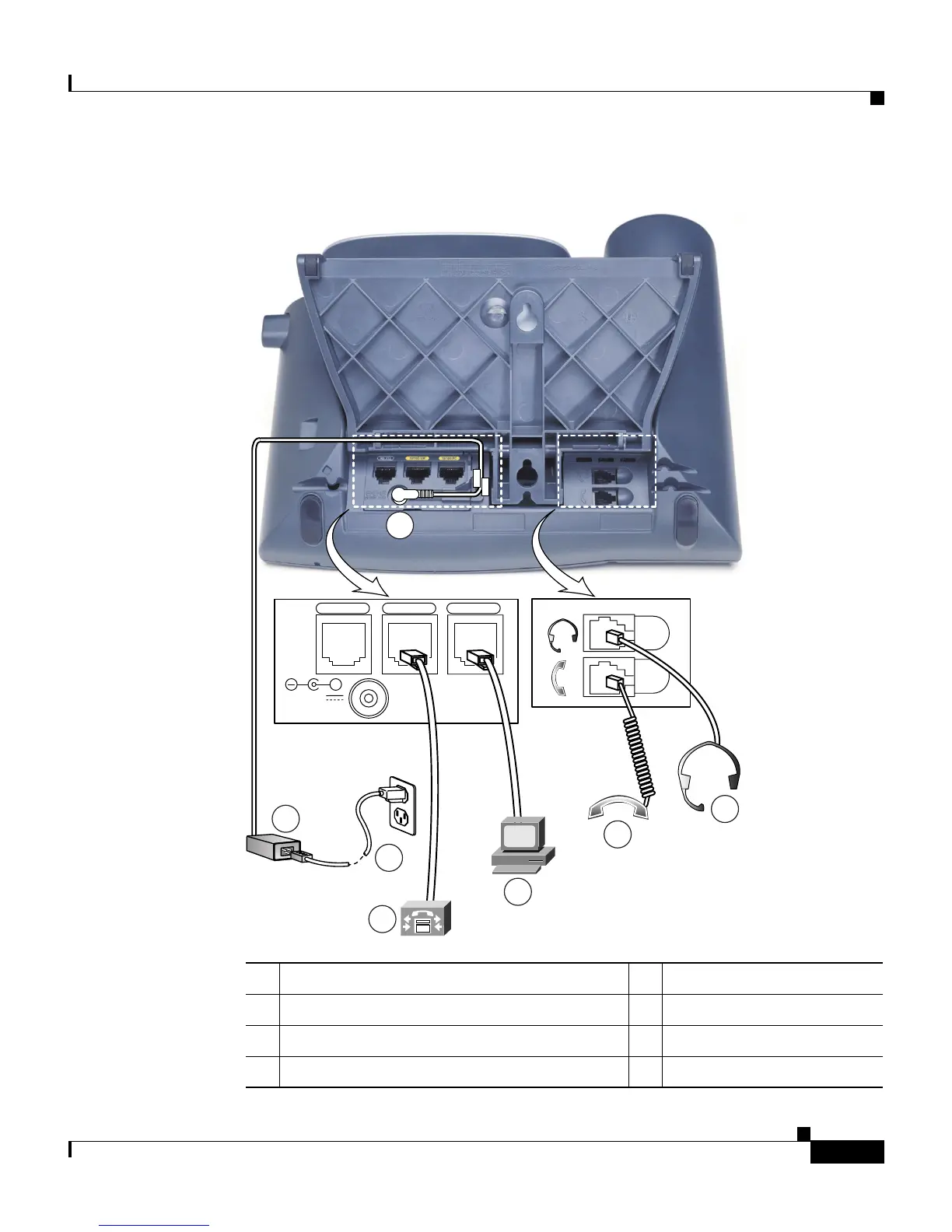

Figure 3-1 Cisco IP Phone Models 7960 and 7940 Cable Connections
1 AC adapter port (DC48V) 5 Access port (10/100 PC)
2 Power supply with AC adapter port plug 6 Handset port
3 Power cable with wall socket plug 7 Headset port
4 Network port (10/100 SW)
RS232
DC48V
10/100 SW 10/100 PC
+
58670
2
3
4
5
6
7
1

Cisco 7960 Specifications

General

Codecs	G.711, G.729a
Protocol Support	SCCP, SIP
Ethernet Ports	2 x 10/100 Ethernet ports
Power Options	Power over Ethernet (PoE), AC adapter
Audio	Full-duplex speakerphone
Buttons	6 line buttons
Weight	3.5 pounds
