Chapter 3 Installing the Cisco IP Phone
Connecting the Cisco IP Phone to the Network
3-6
Cisco IP Phone Administration Guide for Cisco CallManager 3.2, Cisco IP Phones 7960/7940/7910
78-10453-04

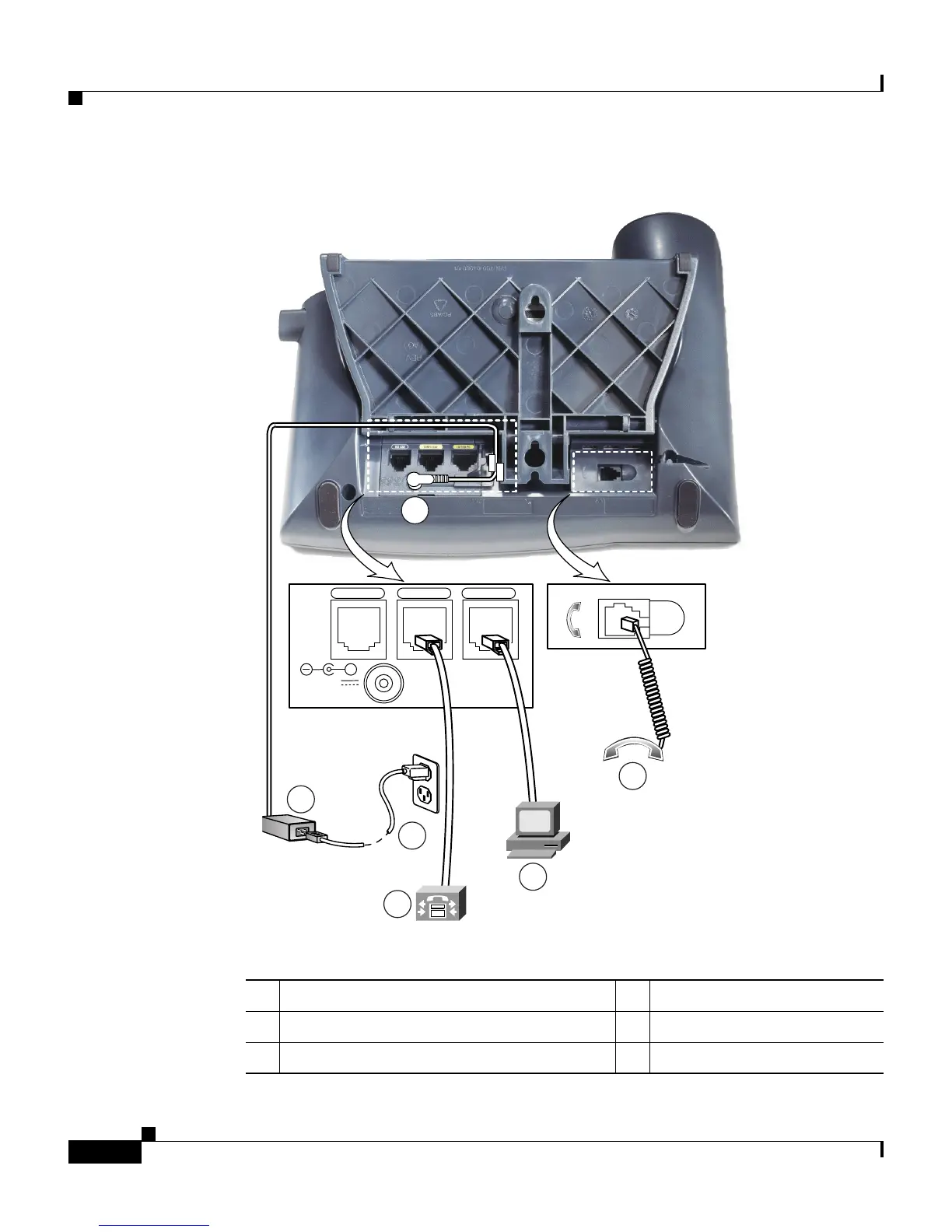

Figure 3-2 Cisco IP Phone Model 7910 Cable Connections
1 AC adapter port (DC48V) 4 Network port (10/100 SW)
2 Power supply with AC adapter port plug 5 Access port (10/100 PC)
3 Power cable with wall socket plug 6 Handset port
RS232
DC48V
10/100 SW 10/100 PC
+
63273
3
4
5
6
1
2
