Chapter 10 Cisco ASR 1002-X Router Overview and Installation
Cisco ASR 1002-X Router Power Supplies

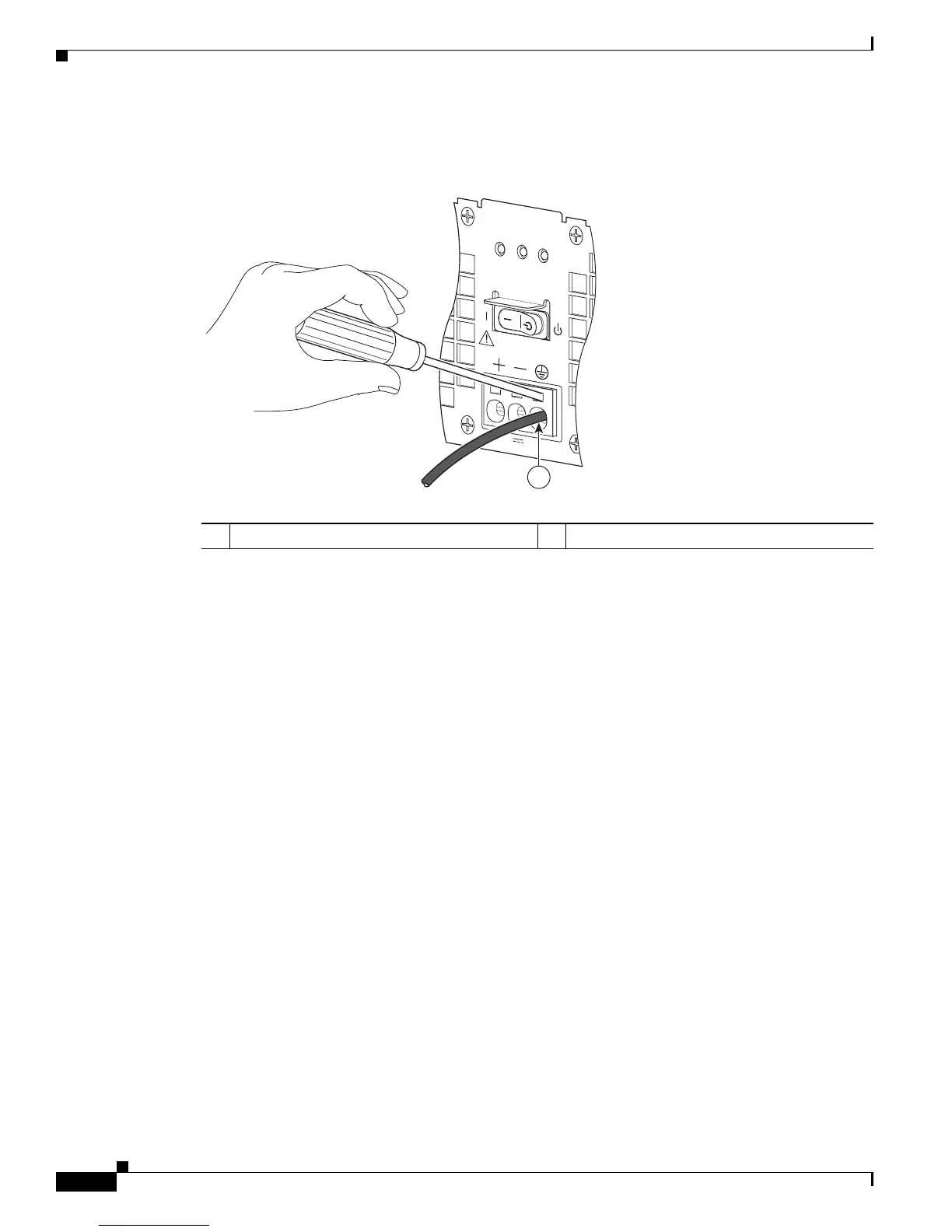

Figure 10-29 shows the lead wire fully inserted.
Figure 10-29 Cisco ASR 1002-X Router +24 VDC Power Supply Lead Wire Fully Inserted
Step 7
After the lead wire is fully inserted, perform these steps:
a. Hold the lead wire in place while you remove the screwdriver.
b. After the screwdriver is completely removed, gently tug the lead wire to ensure that it is securely
installed.
1 Fully-inserted lead wire — —
OUTPUT INPUT
FAIL
OK OK
FAN
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
+27V DC INPUT
+27V 32A
1
253168
