Chapter 11 Cisco ASR 1013 Router Overview and Installation
Connecting Power to the Cisco ASR 1013 Router
– Kepnut screw
b. Tighten the Kepnut screws on the power supply studs.

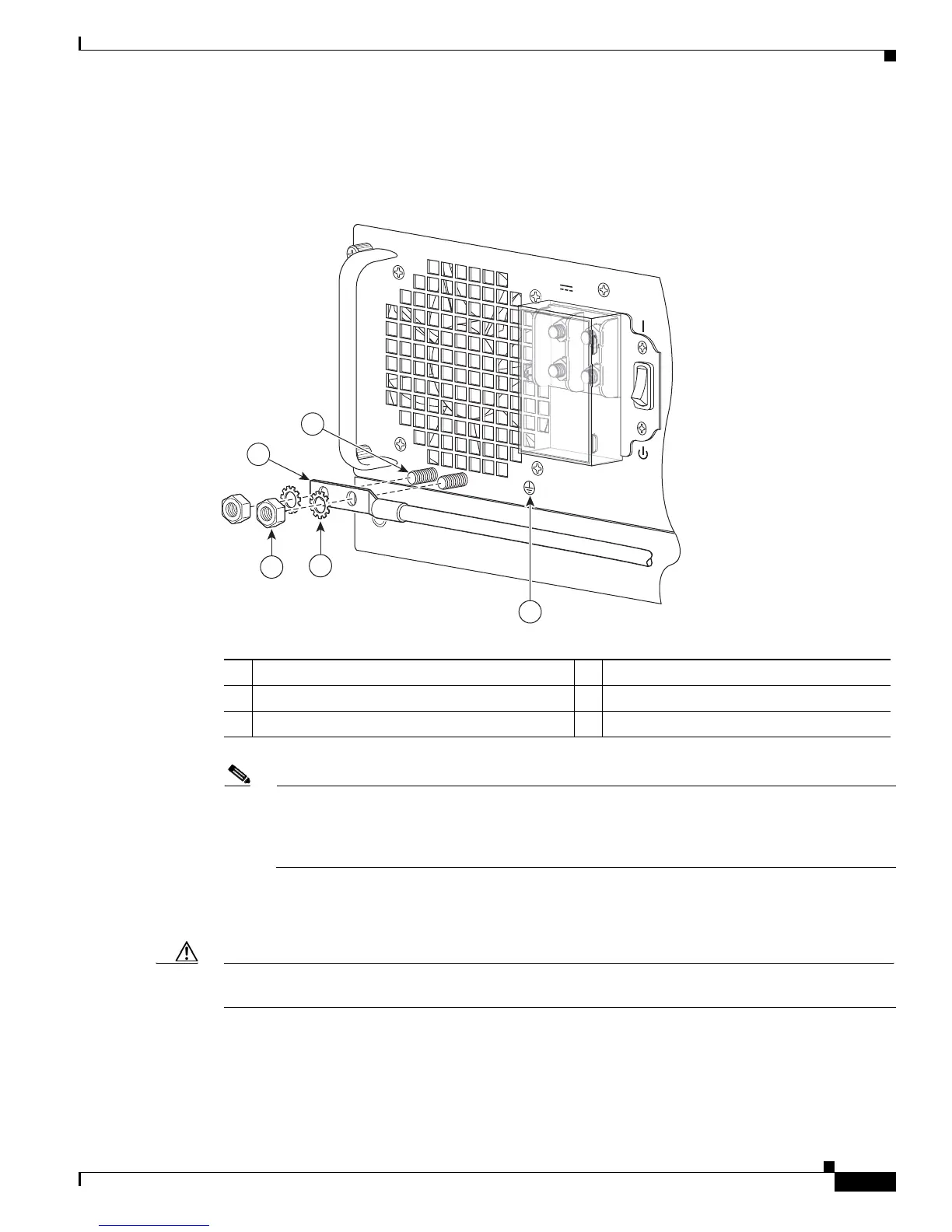

Figure 11-16 Cisco ASR 1013 Router DC Power Supply Grounding Stud and Cable
Note Shielded cables must be used to connect to the DB-25 alarm connector on both the AC and DC
power supplies in order to comply with FCC/EN55022/CISPR22 Class A emissions
requirements. See the “How Cisco ASR1000-RP Alarm Monitoring Works” section on
page 2-20.
Step 3 Attach the other end of the cable to the site’s ground connection.
Step 4 Remove the plastic cover from the terminal block.
Caution Before you continue to install the terminal block ground wires, stop and perform Step 5. To prevent any
contact with metal lead on the ground wire and the plastic cover.
1 DC power supply grounding stud with wire 4 Flat washer
2 Grounding screws 5 Kepnut screw
3 DC Power supply ground symbol — —
This unit might have more than one power supply con
-48/-60V 40A
3
1
253990
5
4
2
