Chapter 14 Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR 1006 Router Power Supplies

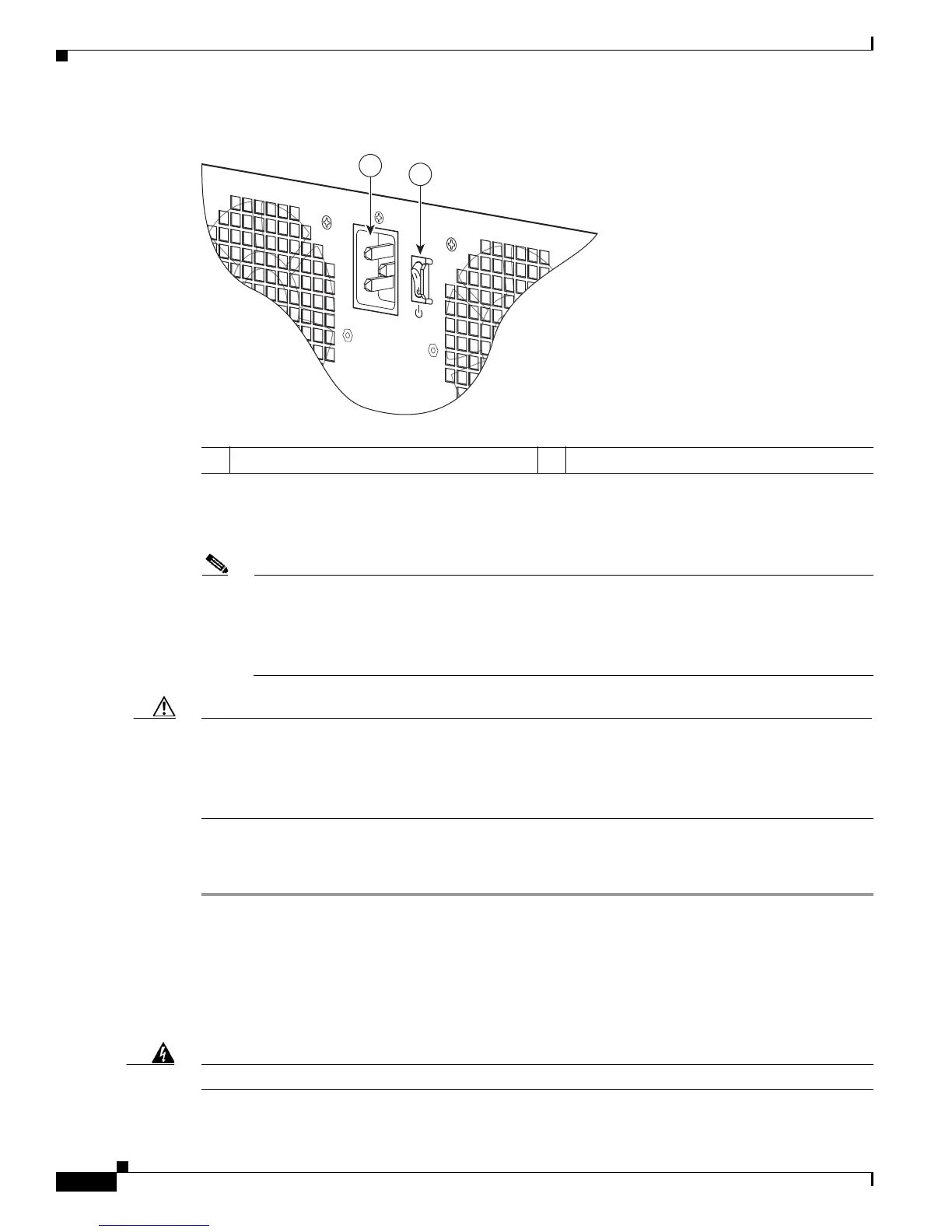

Figure 14-37 AC Power Inlet and Standby Switch
Step 4
Unplug the power cable from the AC inlet on the back of the power supply and the power source.
Step 5 Unscrew the power supply captive screws.
Note Four power supplies must be installed in the chassis at all times, with a minimum of two power
supplies (one per zone) connected to the mains in order to power on the system and ensure
sufficient cooling. The system fans are inside the power supply units and must spin for cooling.
Because all the system fans can be powered by one power supply, the second power supply unit
does not have to be powered on, but must be connected.
Caution If you remove a power supply from a system that has four power supplies that are connected and powered
on, the system can run only for a maximum of five minutes before shutting down. However, because the
fans and power elements are independent within the power supply, the replacement power supply does
not have to be energized within five minutes. The only requirement is that the power supply be installed
in the chassis in order to energize the fans and maintain proper system cooling.
Step 6 Grasping the power supply handles, pull the power supply from the chassis.
Step 7 Replace the AC power supply within five minutes.
This completes the procedure for removing the AC power supply from the Cisco ASR 1006 chassis.
Replacing the AC Power Supply in Cisco ASR 1006 Router
This section provides information about installing an AC power supply in the Cisco ASR 1006 Router.
Warning Never install an AC power module and a DC power module in the same chassis. Statement 1050
1 Power inlet 2 Power supply AC standby switch
100-240V~ 16-7A
50-60HZ
This un
it mi
ght have more than
one
power
sup
ply
con
nec
tion
.
All con
ne
ction
s m
ust be removed
to de-
en
ergize the unit.
280083
1
2
