Cisco ASR 1000 Series Hardware Installation Guide

14-59
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 14 Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR 1006 Router Power Supplies
Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Warning Installation of the equipment must comply with local and national electrical codes. Statement 1074

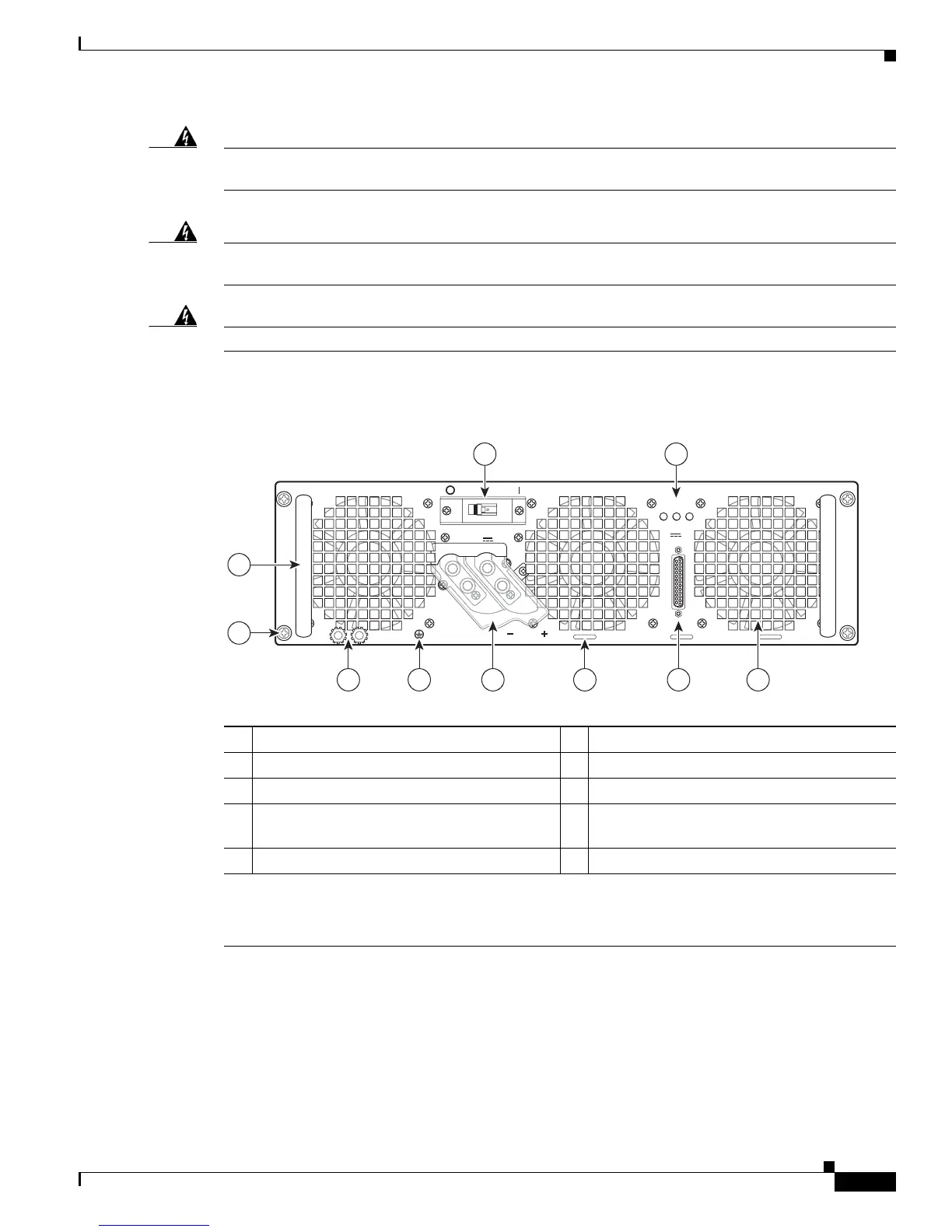

Figure 14-40 shows the ASR1006-PWR-DC power supply and components.
Figure 14-40 Cisco ASR 1006 Router DC Power Supply (ASR1006-PWR-DC)
1 Fan 6 DC power supply ground studs
2 DB-25 alarm connector* 7 DC power supply captive screw
3 Tie-wrap tab 8 DC power supply handle
4 DC power supply terminal block and plastic
cover
9 On/Off (|/O) circuit breaker switch
5 Ground symbol 10 Power supply LEDs
*For information about the DB-25 alarm connector, how it works, and Cisco ASR 1000 route processor LEDs, see the “How
Cisco ASR1000-RP Alarm Monitoring Works” section on page 2-20.
Note: Shielded cables must be used to connect to the DB-25 alarm connector on both the AC and DC power supplies, in order
to comply with FCC/EN55022/CISPR22 Class A emissions requirements.
OFF
280023
OUTPUT INPUT INPUT
FAIL OK OK
ALARMS
60V
1A MAX
This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.
-48/-60V 40A
55
2 145 36
7
8
9 10
