IDC-CHT1/E1 can support eight ports of fully channelized T1 or E1 interfaces (see Figure 199: Cisco ASR
1001 Router with IDC-CHT1/E1, on page 413).

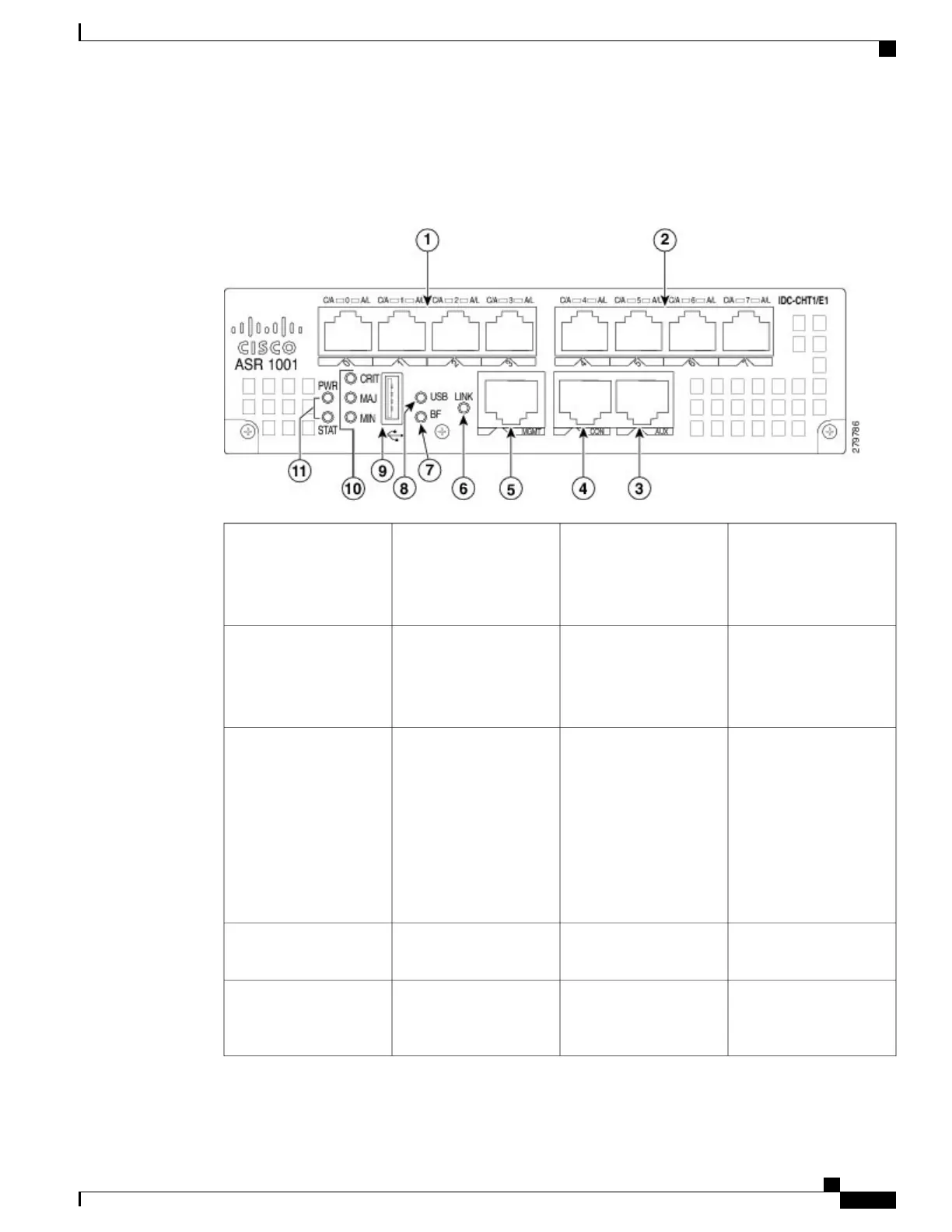

Figure 199: Cisco ASR 1001 Router with IDC-CHT1/E1
BF—Internal bootflash
LED that indicates
activity of the EUSB
device
7
T1/E1 Ports—Ports 0
through 3
These T1/E1 ports are
RJ-45 ports.
1
USB LED8
T1/E1 Ports—Ports 4
through 7
These T1/E1 ports are
RJ-45 ports.
2
USB port—USB
high-speed (480 Mbps)
port used for secure key
storage, VPN credentials
storage, or bulk flash
storage of image and
configuration backup
This USB port is an A
port.
9
AUX—RS-232 auxiliary
port
3
STAT—Status LED
10
CON—RS-232 console
port
4
PWR—Power LED
11
MGMT—RJ-45
10/100/1000 management
Ethernet port
5
Cisco ASR 1000 Series Router Hardware Installation Guide
413
