Chapter 30 Configuring EtherChannels
Understanding EtherChannels

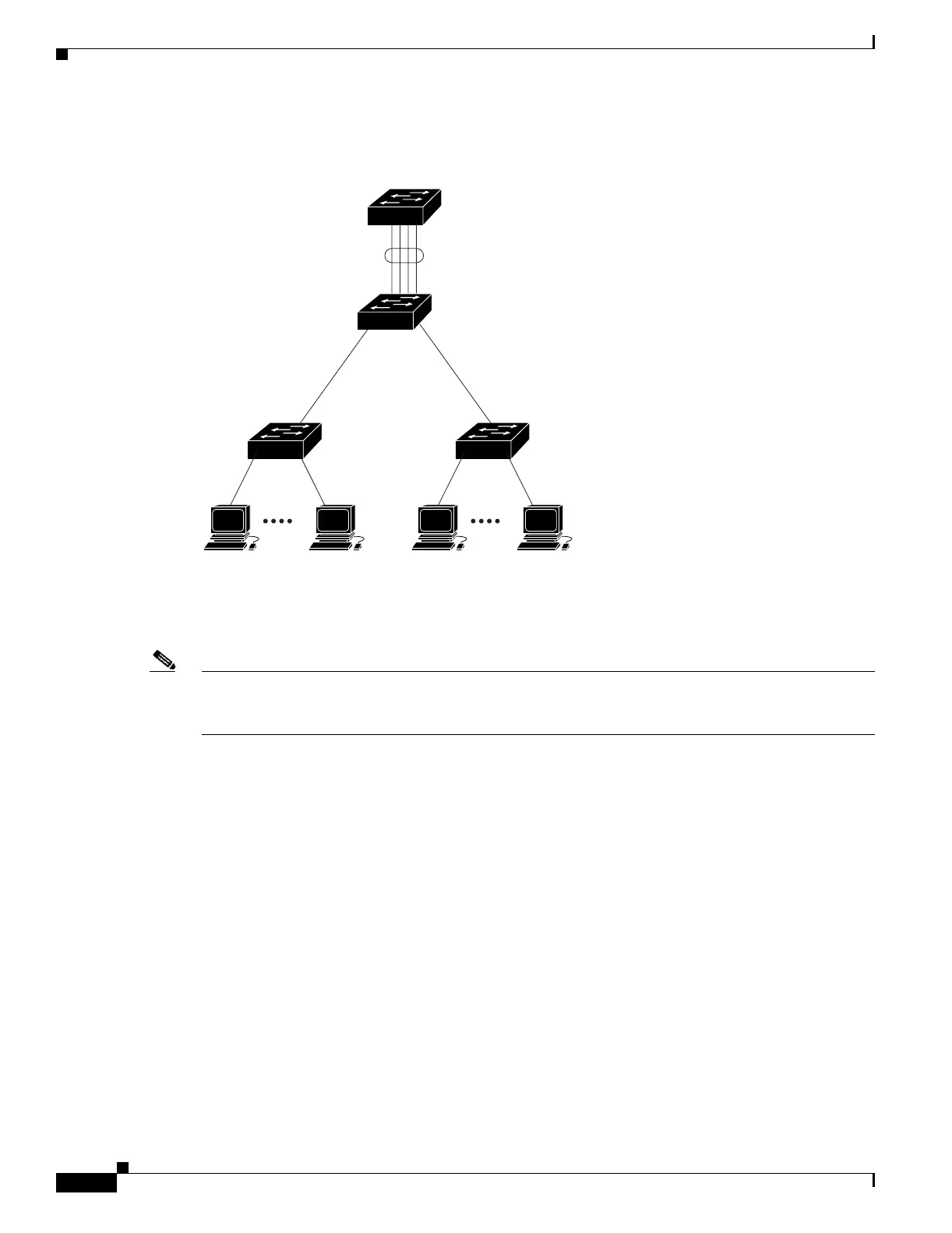

Figure 30-1 Typical EtherChannel Configuration
Each EtherChannel can consist of up to eight compatibly configured Ethernet interfaces. All interfaces
in each EtherChannel must be the same speed, and all must be configured as Layer 2 interfaces.
Note The network device to which your switch is connected can impose its own limits on the number of
interfaces in the EtherChannel. For Catalyst 2950 and Catalyst 2955 switches, the number of
EtherChannels is limited to six with eight ports per EtherChannel.
If a link within an EtherChannel fails, traffic previously carried over that failed link changes to the
remaining links within the EtherChannel. A trap is sent for a failure, identifying the switch, the
EtherChannel, and the failed link. Inbound broadcast and multicast packets on one link in an
EtherChannel are blocked from returning on any other link of the EtherChannel.
Understanding Port-Channel Interfaces
When you create an EtherChannel for Layer 2 interfaces, a logical interface is dynamically created, as
shown in Figure 30-2. You then manually assign an interface to the EtherChannel by using the
channel-group interface configuration command.
Each EtherChannel has a logical port-channel interface numbered from 1 to 6.
101237
Catalyst 8500
series switch
Gigabit EtherChannel
Workstations
10/100
Switched
links
Workstations
10/100
Switched
links
1000BASE-X 1000BASE-X

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
