Chapter 1 Using Express Setup
Starting Express Setup

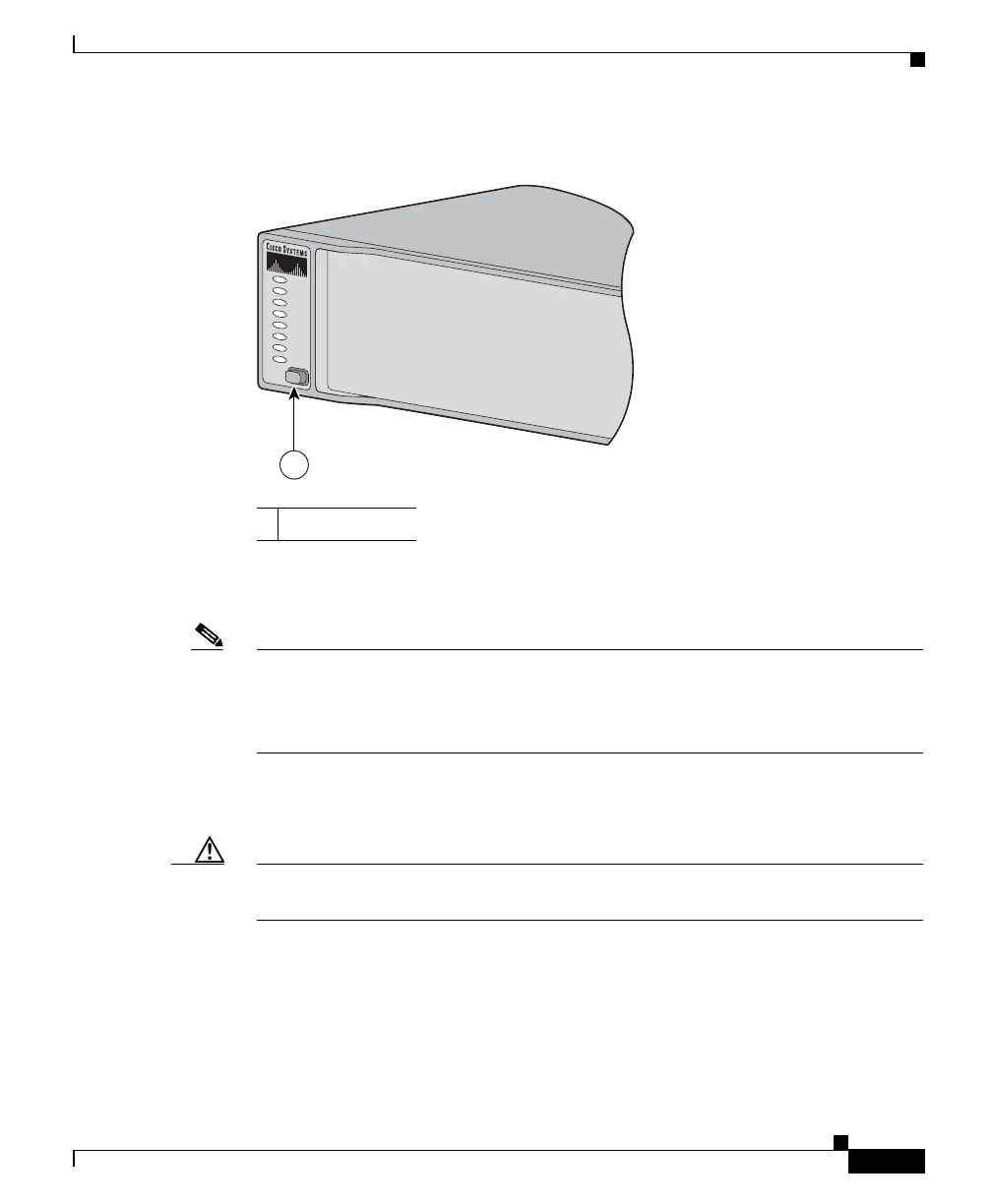

Figure 1-5 Catalyst 3750-24PS and 3750-48PS Switch Mode Button
Step 3 Release the Mode button.
Note If all of the LEDs begin to blink after you press the Mode button, release it.
Blinking LEDs mean that the switch has already been configured and cannot go
into Express Setup mode. For more information, see the “Clearing the Switch IP
Address and Configuration” section on page 4-2.
Step 4 Connect a straight-through Ethernet cable (not included) to an Ethernet port on
the front panel of the switch, as shown in Figure 1-6.
Caution Do not connect the switch to any device other than the PC or workstation being
used to configure it.
1 Mode button
RPS
SYST
MASTR
STAT
DUPLX
SPEED
STACK
PoE
MODE
1
104760

Cisco Catalyst 3750 Specifications

General

Device Type	Switch
Switching Capacity	32 Gbps
Forwarding Rate	38.7 Mpps
Stacking Bandwidth	32 Gbps
RAM	128 MB
Jumbo Frame Support	Yes
Switch Type	Managed
Model	Catalyst 3750 Series
Uplink Interfaces	SFP
Form Factor	Rack-mountable
MAC Address Table Size	12, 000 entries
Routing Protocol	RIP, OSPF, EIGRP
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Layer 3 switching, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology
Power over Ethernet (PoE)	PoE
Operating Temperature	-5 - 45 °C
Operating Humidity	10% to 85% non-condensing
