Cisco IE 3000 User Manual

1-17
Cisco IE 3000 Switch Software Configuration Guide
OL-13018-01
Chapter 1 Overview
Network Configuration Examples
Cell Network—Trunk-Drop Topology
Switches are connected to each other to form a chain of switches in a trunk-drop topology (also known
as a cascaded topology). See
Figure 1-2.
• The connection between the Layer 3 switch and the first Layer 2 switch is very susceptible to
oversubscription, which can degrade network performance.
• There is no redundancy to the loss of a connection.

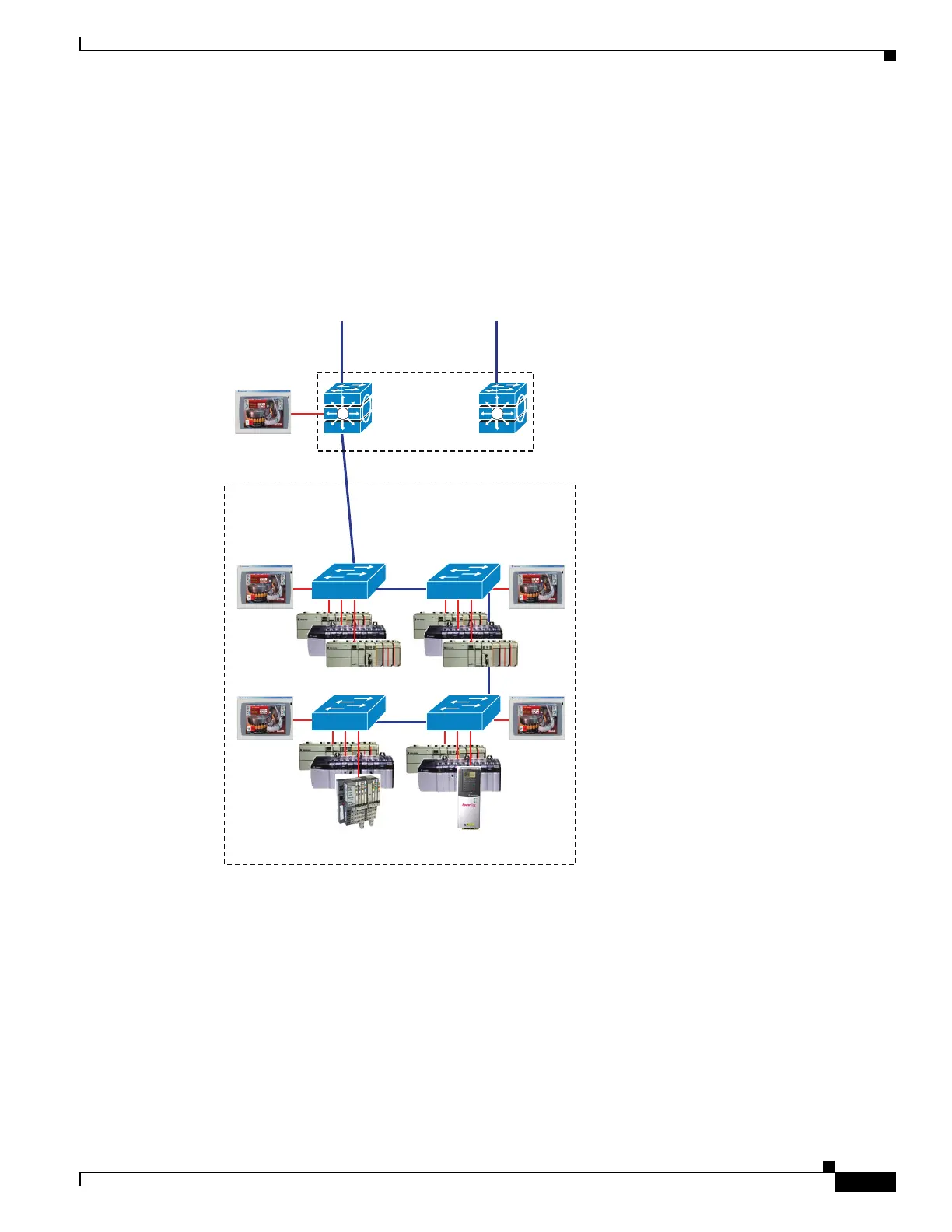

Figure 1-2 Cell Network–Trunk-Drop Topology
204319
Human
Machine
Interface
(HMI)
IE
3000
Controllers
Cell Zone
Catalyst 3750
Stackwise
Switch
Stack
Controllers, Drives,
and Remote I/Os

Cisco IE 3000 Specifications

General

Operating Temperature	-40 to 75°C (-40 to 167°F)
DRAM	128 MB
Flash Memory	32 MB
Uplink Ports	2 x 10/100/1000Base-T or SFP
MAC Address Table Size	8000
Mounting	DIN rail, Wall
