107
ENGINE
AUXILIARY EQUIPMENT DRIVE BELT
Engine: 4HW

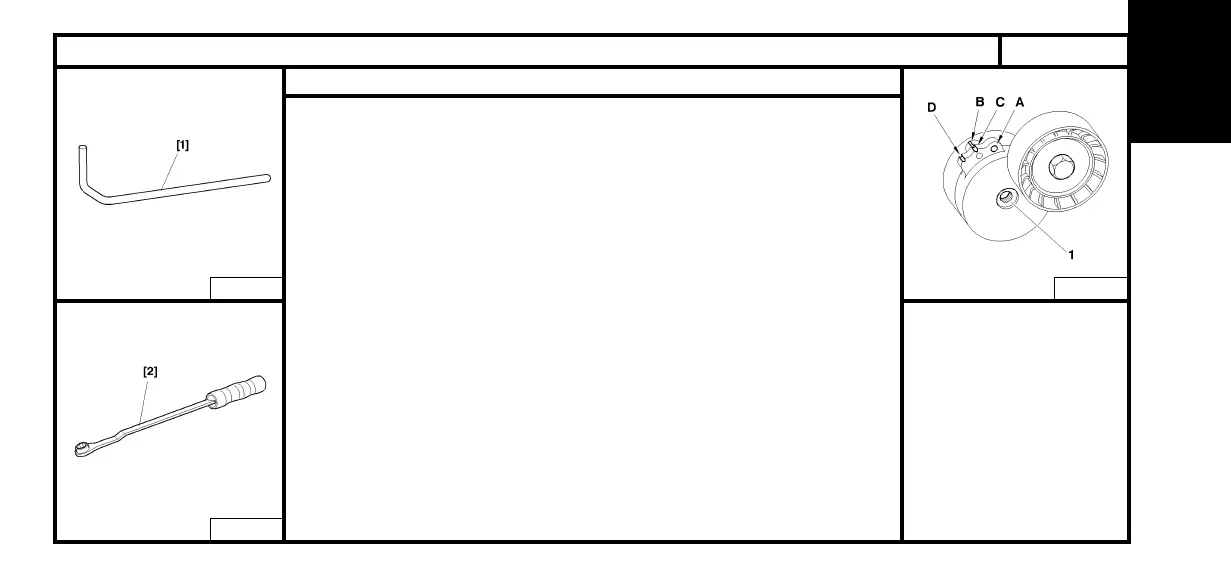

Tools.
[1] Peg for dynamic roller : (-) 0188-Q1
[2] Dynamic roller compressure lever : (-).1888-Z
(A) Pegging hole
(B) Belt wear check mark (fixed on engine)
(C) Zero wear mark
(D) Maximum wear mark
This marking system permits checking of the belt wear; if the marks (D) and (B)
coincide, it implies that the belt requires replacing.
Tighten the screw (1) to 4,5 ± 0,4 m.daN.
Removing.
Remove:
- The front RH wheel.
- The front RH splash-shield.
- The under-engine shield.
IMPERATIVE: Mark the direction of rotation of the belt if to be re-used.
E5AK0EDC
E5AK0E8C
B3EK09PC
C8
Angl.T3-page032-190-2005 4/02/05 15:15 Page 107
