CITROEN C5 2005 - Tool for Moving and Locking the Tensioner Roller; Adaptor for Angular Tightening; Timing Belt Retaining Pin

111
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: 6FZ
Tools.
[1] Camshaft setting peg : (-).0189.A
[2] Crankshaft setting peg : (-).0189.R
[3] Timing belt retaining pin : (-) 0189.K
[4] Adaptor for angular tightening : 4069-T
[5] Tool for moving and locking the tensioner roller : (-).0189.S
[5a] : (-).0189.S1
[5b] : (-).0189 S2
Removing.
Disconnect the battery negative terminal.
Raise and support the vehicle, front wheels hanging.
Remove the accessories drive belt (see corresponding operation).
Remove the upper timing cover (1).

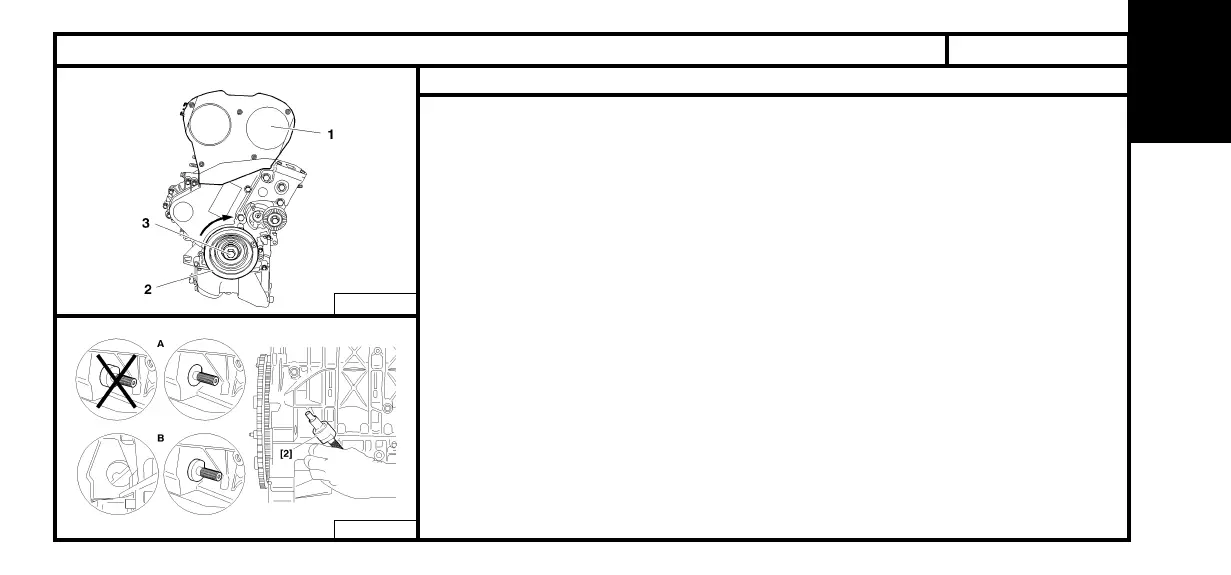

Turn the engine by means of the screw (3) of the crankshaft pinion (2), to bring it to the pegging
position.
A: Pegging on the manual gearbox.
B: Pegging on the automatic gearbox.
Peg the crankshaft, using tool [2].
