BRAKES
B3FP139C B3FP13AC
DRAINING, FILLING AND BLEEDING THE BRAKING SYSTEM
Tools.
[1] Generic bleeding apparatu : «LURO» or similar
[2] LEXIA statio : 4171-T
[3] PROXIA station : 4165-T
NOTE: Bleeding of the secondary braking circuit is done with the help of diagnostic tools [2] or [3].

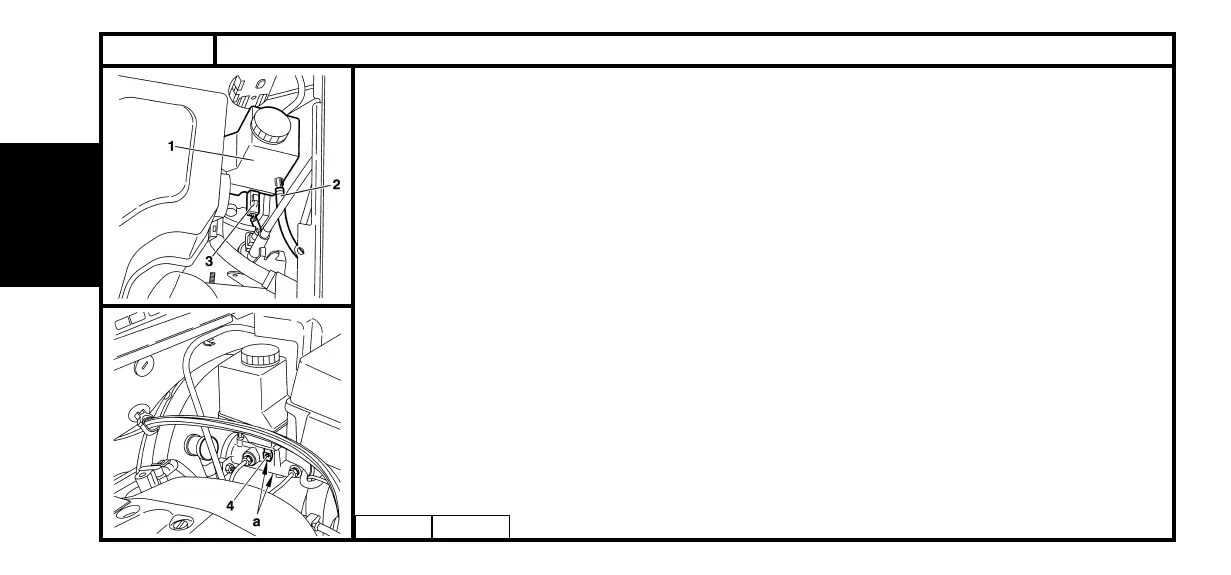

Draining the brake fluid reservoir.
Drain the brake fluid reservoir (1) to the maximum extent (if necessary, use a clean syringe).
Disconnect the connector (3).
Uncouple the pipe (2).
Remove the reservoir (1) by separating the lugs «a» from the shaft (4).
Empty the brake fluid reservoir (1).
Clean the brake fluid reservoir (1).
Refit the brake fluid reservoir (1) and the shaft (4).
Couple the pipe (2).
Reconnect the connector (3).
Filling the braking system.
WARNING: Use only those hydraulic fluids that are approved and recommended.
Fill the brake fluid reservoir (1).
Bleeding the primary braking system.
WARNING: During the bleeding operation, take care to maintain the level of brake fluid in the reservoir
and to top it up, using only brake fluid that is clean and clear.
WARNING: The ABS should not be active during the bleeding operation.
