CITROEN C5 2005 - Instrument for Measuring Belt Tension; Peg for Checking Camshaft Settings; Tool for Immobilising Exhaust Camshaft Hubs; Tool for Immobilising Inlet Camshaft Hubs

145
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: XFW
Tools.
[1] Camshaft setting pegs : (-).0187-B
[2] Crankshaft setting peg : (-).0187-A
[3] Belt retaining pin : (-).0187-J
[4] Peg for checking camshaft settings : (-).0187-CZ
[5] Tool for immobilising inlet camshaft hubs : (-).0187-C
[6] Tool for immobilising exhaust camshaft hubs : (-).0187-F
[7] Instrument for measuring belt tension : (-).0192
Removing.
Remove:
- The front RH wheel
- The RH wheelarch.
- The front RH tie-bar.
- The auxiliary drive belt (see corresponding operation).

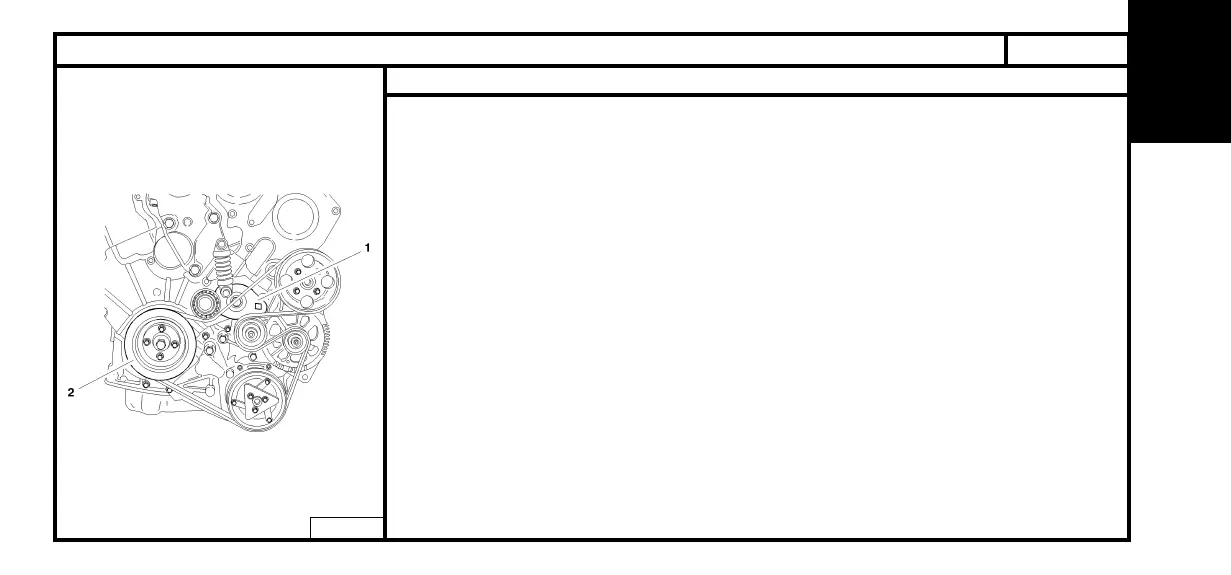

- The tensioner roller assembly (1).
- The crankshaft pulley (2).
Support the engine using a stand.
Remove:
- The upper RH torque reaction rod.
- The RH engine support.
B1EK004D
C8
