ENGINE

SPECIAL FEATURES: TIGHTENING TORQUES (m.daN)

Engine: XFW

Cylinder head equipment

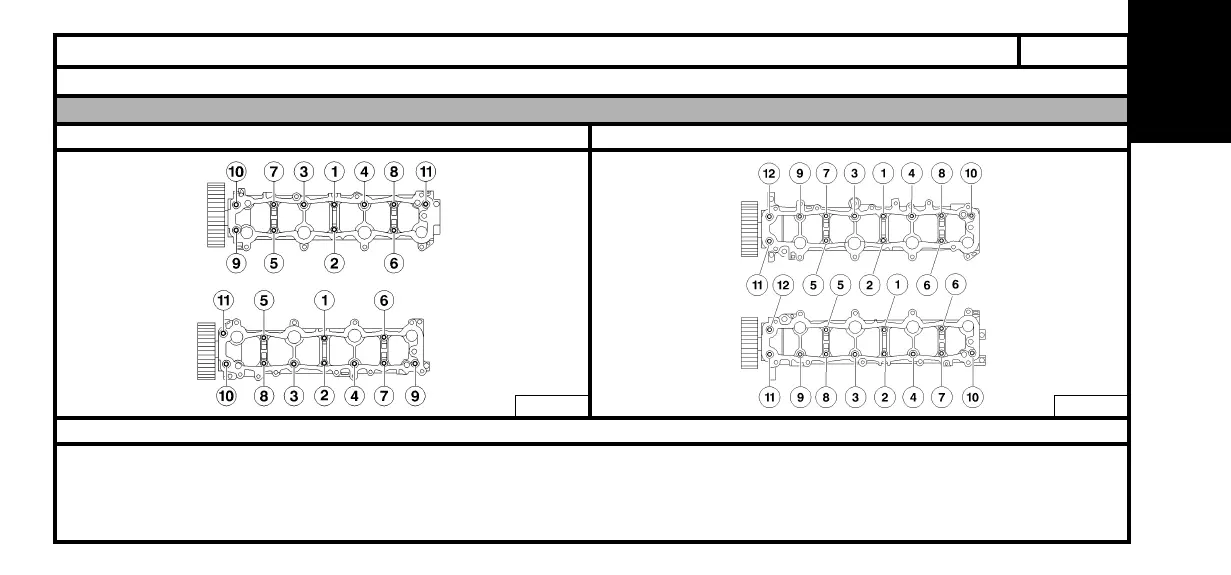

Camshaft bearing cap cover (left hand side)Camshaft bearing cap cover (right hand side)

(30) Camshaft bearing cap cover or camshaft bearing:

- Pre-tightening : 0,2

- Tightening : 1

B1EK0GCC B1BK3B8D

Respect the sequence of stages and the order of tightening

Angl.T3-page032-190-2005 4/02/05 15:15 Page 55
