Form No. 56043161 - Clean Track
®
L24 - 13
Know Your Machine

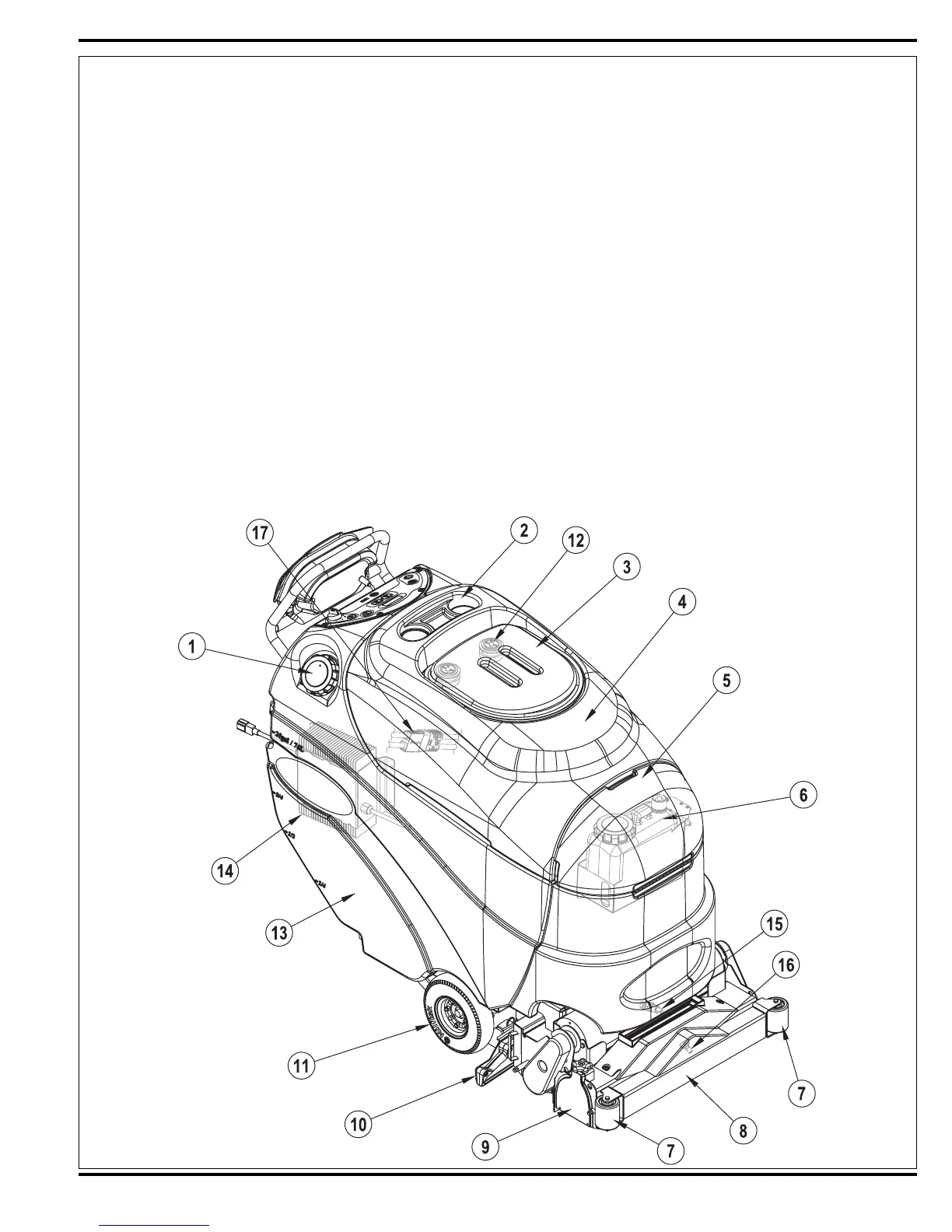

Major Components
As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These
numbers refer to an item shown on this page unless otherwise noted. Refer back to this page whenever necessary to
pinpoint the location of an item mentioned in the text. Note: Detailed explanations of each item illustrated on the next
three pages are provided later in this section.
1 Solution Fill Cap
2 Bottle Holders
3 Recovery Tank Dome Lid
4 Recovery Tank
5 Detergent Cartridge Access Cover
6 Detergent Cartridge (Chemical Mixing System)
7 Scrub Deck Rollers
8 Scrub Deck
9 Idler Assembly
10 Extraction/Vacuum Shoes
11 Drive Wheel
12 Vacuum Motor Inlet Screens
13 Solution Tank
14 Onboard Battery Charger
15 Maintenance Spray Nozzle
16 Restoration Spray Nozzle
17 Battery Pack Connector
Figure 2
