46 - Form No. 56043161 - Clean Track
®
L24
Caster Wheel Removal
Warning! Disconnect the battery pack connector before servicing machine.
Warning! Never work under machine without safety stands or blocking to support the machine.
1. Drain both the solution and recovery tanks.
2. Have the scrub deck in the up (stored) position with the scrub brushes installed.

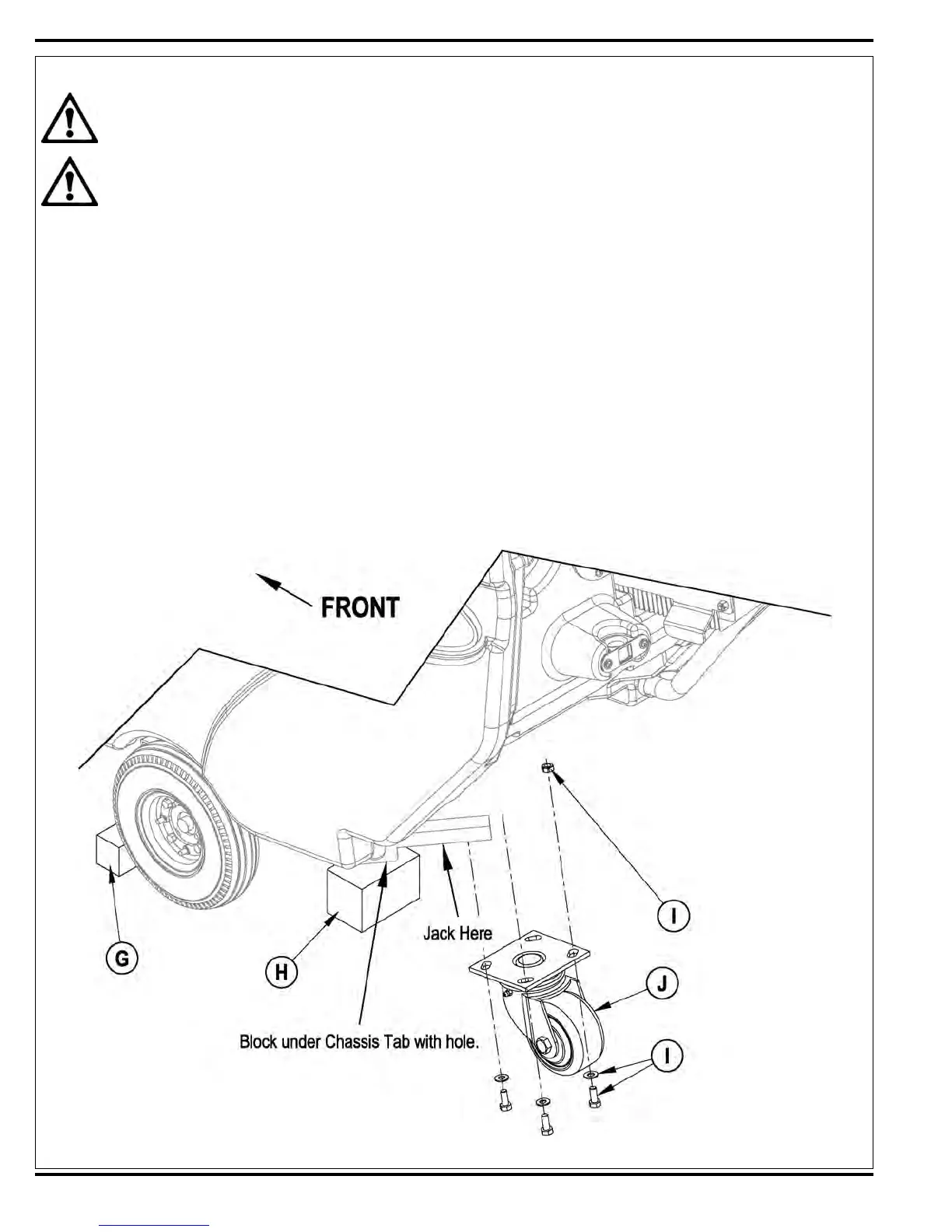

3. See Figure 15. Place Wood Blocking (G) in front of the drive wheels to prevent the machine from rolling.
4. Jack the machine in the location shown until the caster wheel is approximately 1” off the ground.
5. Place Blocking (H) under the chassis tab as shown.
6. Remove the four Screws, Nuts and Washers (I) then remove the Caster Assembly (J).
7. Reinstall in reverse order.
Figure 15
