Drive Wheel Removal
Warning! Disconnect the battery pack before servicing machine.
Warning! Never work under machine without safety stands or blocking to support the machine.
1. Place wood blocking in front and rear of the opposite drive wheel that you are removing to prevent the machine
from rolling.
2. Using a scissors jack, raise the machine until the wheel is off the ground. See Figure 21 for jack placement.
3. Remove the four Locknuts (E) and the Drive Wheel (F).
4. Reinstall the Drive Wheel by following the above steps in reverse order.

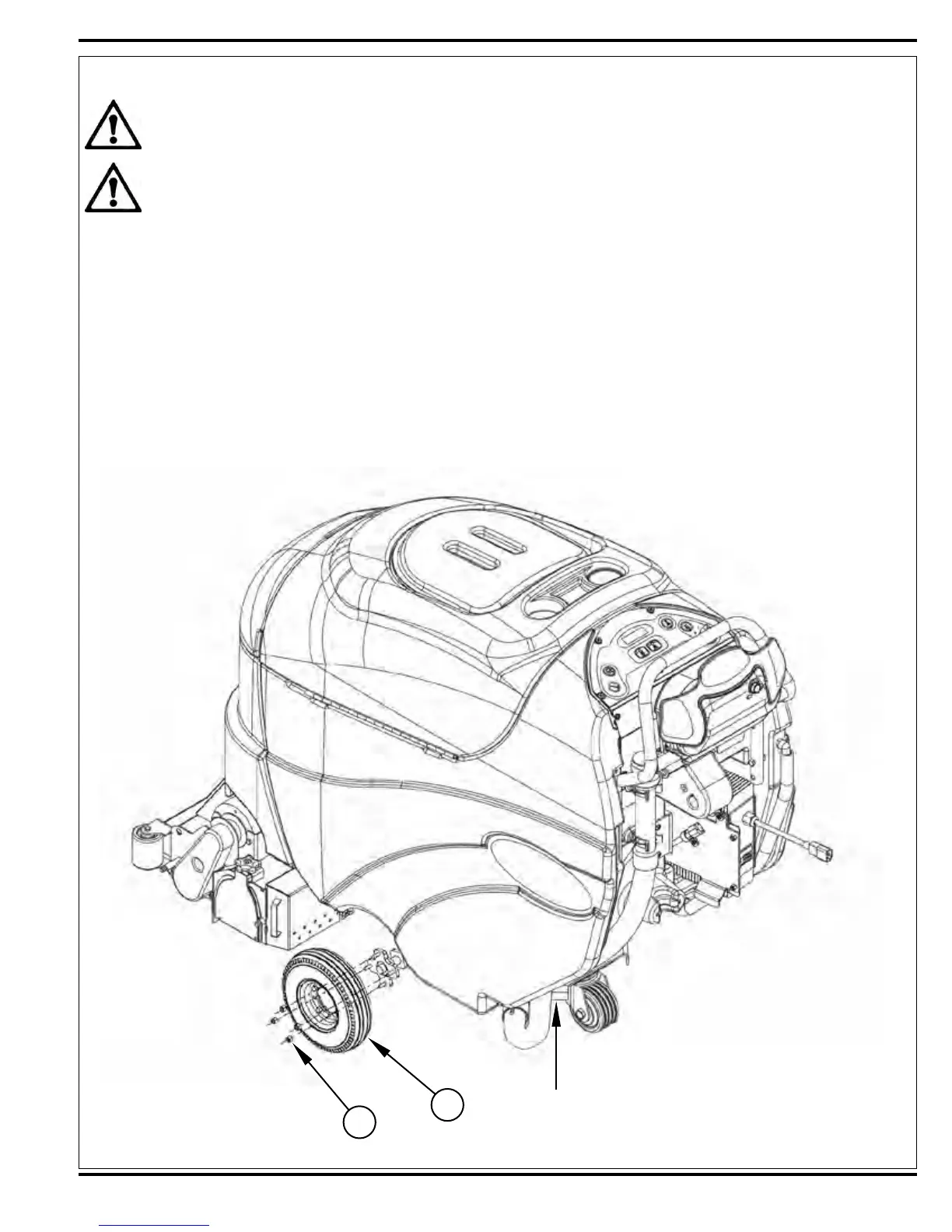

Figure 21
Place jack here
F
E
