Form No. 56043161 - Clean Track
®
L24 - 15

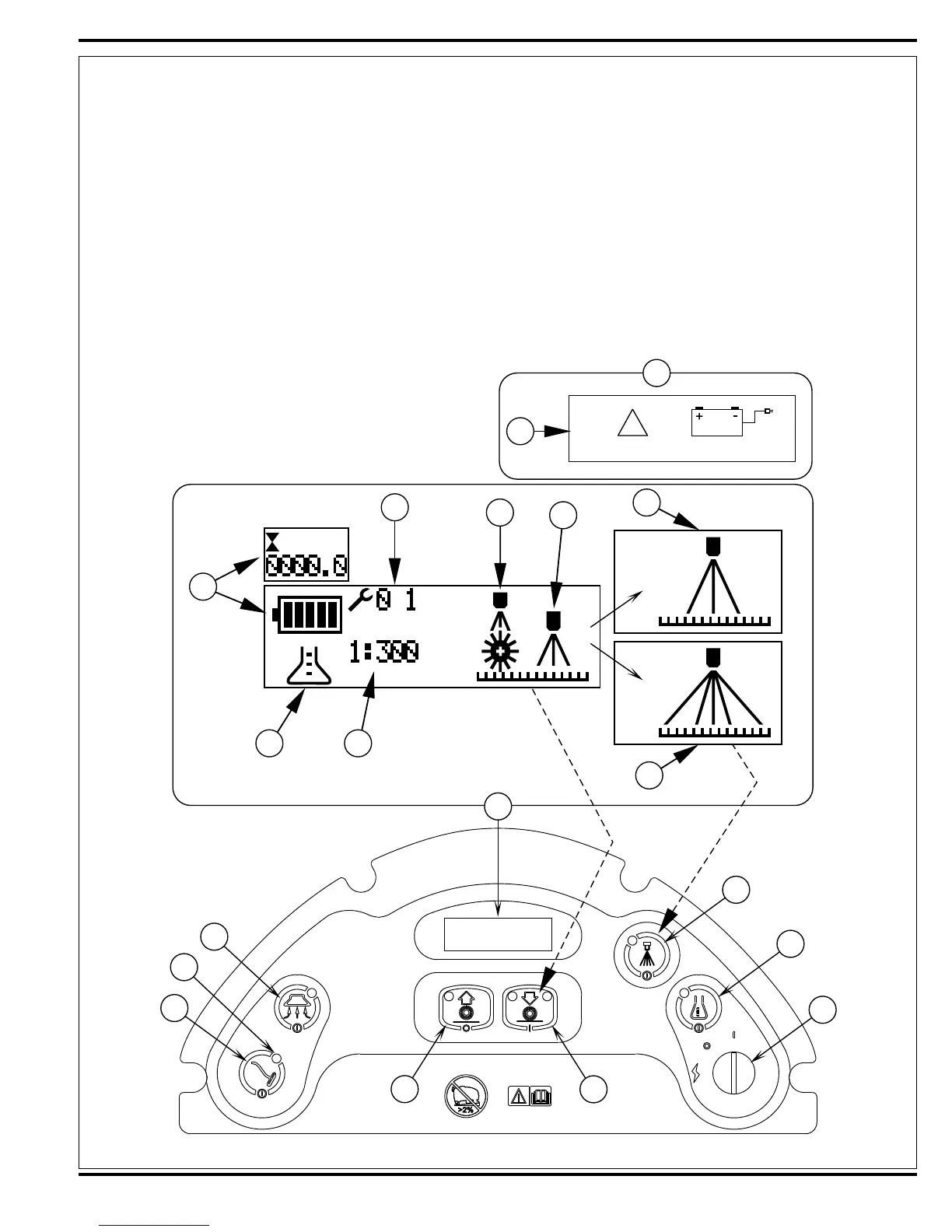

Control Panel
A Key Switch (Main Power)
B Detergent System Switch
C Solution/Pre-spray Switch
D Display Panel
D1 Detergent (Chemical Mixing) System Indicator
D2 Hour Meter/Battery Indicator
D3 Fault Indicator
D4 Chemical Mixing System Ratio Indicator
D5 Maintenance Extract Mode Indicator
D6 Restoration Extract Mode Indicator
D7 Fast Pre-spray Mode
D8 Heavy Pre-spray Mode
D9 Battery Low Indicator
E Vacuum Switch
F Speed Control Fault Code Indicator
G Wand Switch
H Scrub OFF Switch (red)
J Scrub ON Switch (green)
!
A
B
C
E
H
J
D
D1
D3
D5
D6
D8
D9
D
G
D2
D4
D7
F
