Detergent (Chemical Mixing) System Preparation and Use
Common Instructions:
The system should be purged of previous detergent when switching to a
different detergent.
Service Note: Move machine over oor drain before purging because a
small amount of detergent will be dispensed in the process.
To Purge when Changing Chemicals:
1. Disconnect and remove the detergent cartridge.
2. Turn the Key Switch (A) on and press the Detergent System Switch
(B) and the Solution/Pre-spray Switch (C) down for at least 2 seconds.
Note: Once activated, the purge process takes 30 seconds. See the

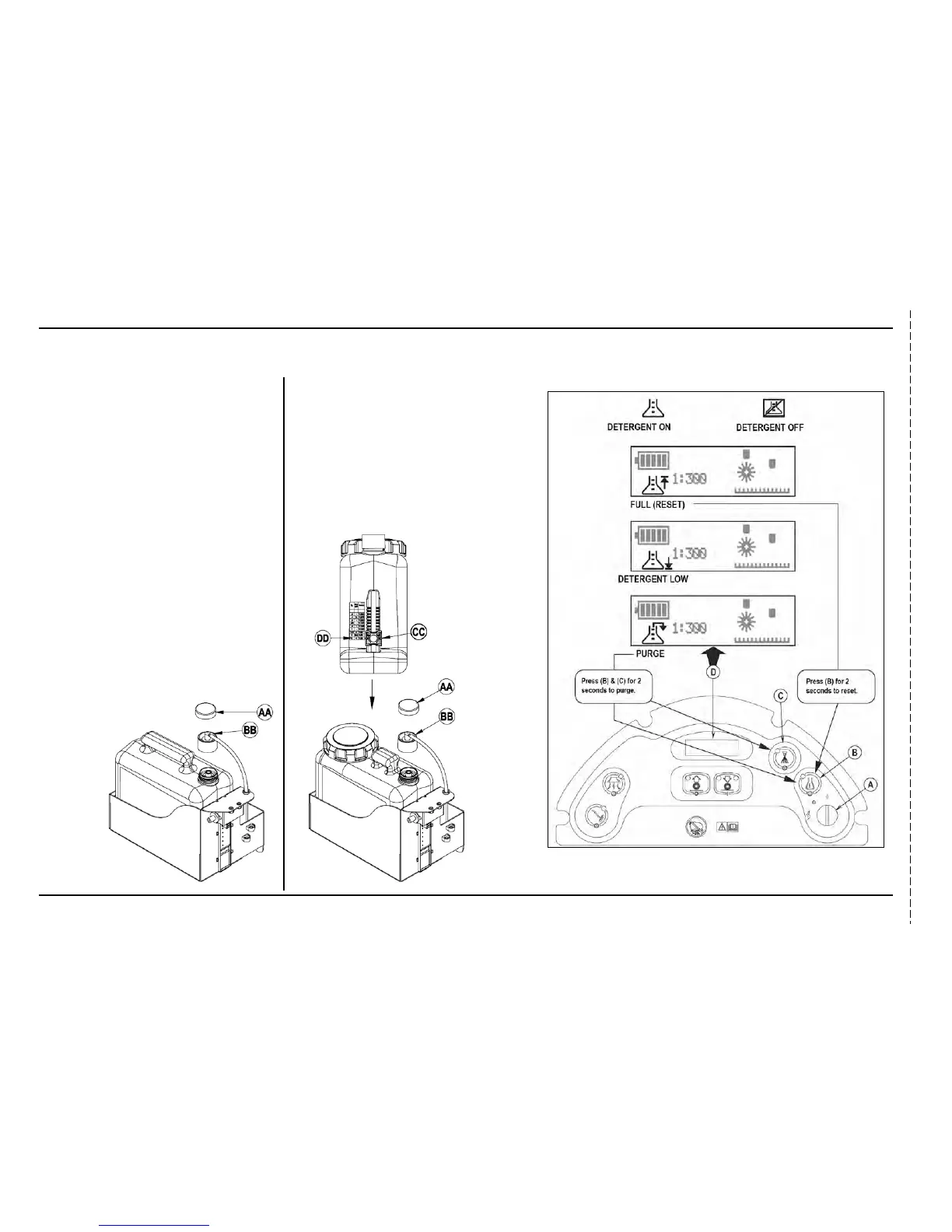

illustration on the right for Detergent System indicators. Normally one
purge cycle is adequate to purge the system.
To Purge Weekly:
1. Disconnect and remove the detergent cartridge.
2. Install and connect a cartridge lled with clean water.
Turn the Key Switch (A) on and press the Detergent System Switch
(B) and the Solution/Pre-spray Switch (C) down for at least 2 seconds.
Note: Once activated, the purge process takes 30 seconds. See the
illustration on the right for Detergent System indicators. Normally one
purge cycle is adequate to purge the system.
When the Detergent Cartridge is almost empty, the Chemical Mixing
System Indicator (D1) will come on. This “Detergent Low” indicator will
remain on until you reset the system.
3. Once the Chemical Mixing System Indicator indicator comes on, you
should be able to simply pour an entire gallon bottle of detergent into
the Cartridge to rell without worrying about measuring. Note: Only
reset the system when the cartridge is full. When switching cartridges,
the “Low Detergent” indicator is only accurate if the replacement
cartridge is at the same level as the cartridge being replaced.
To Reset:
Turn the Key Switch (A) on and hold the Detergent System Switch (B)
down for 2 seconds. See illustration on the right for Detergent System
indicators.
Non-Refillable Cartridge Specific Instructions:
1. Fill the detergent cartridge with a maximum of 1.25 gallons (4.73 Liters)
of detergent. Service Note: Remove the detergent cartridge from the
detergent box prior to lling to avoid spilling detergent on the machine. It
is recommended that a separate cartridge be used for each detergent you
plan to use. The detergent cartridges have a white decal on them so you
can write the detergent name on each cartridge to avoid mixing them up.
2. The detergent cartridge has a Magnetic Slider (CC) on one end that
needs to be set to the proper dilution ratio according to the dilution
instructions on the manufacturer’s bottle. Slide the Magnet Slider (CC) to
the appropriate location on Detergent Dilution Ratio Decal (DD).
3. When installing a new cartridge, remove the Cap (AA) and place the
cartridge in the detergent box.
4. Install the Dry Break Cap (BB) as shown.
Service Note: Refer to the Electrical/Detergent Dilution Ratio Selection
section to electronically program the chemical ratio if your cartridge has no
magnetic slider.
