26 - Form No. 56043161 - Clean Track
®
L24
Disconnect the
pump wire
connector. Test for
24V
Replace Pump
Check for (+) 24V to Bat.(-)
from the red main harness
pump connector.
Repair wiring
Check for (-) 24V to
Bat.(+) from the GRN/BLK
main harness pump
connector.
Check for (-) 24V at the A1
Control Board wire J1-6
GRN/BLK to Bat (+)
Replace A1
Control Board
Repair GRN/BLK wire
NO
YES

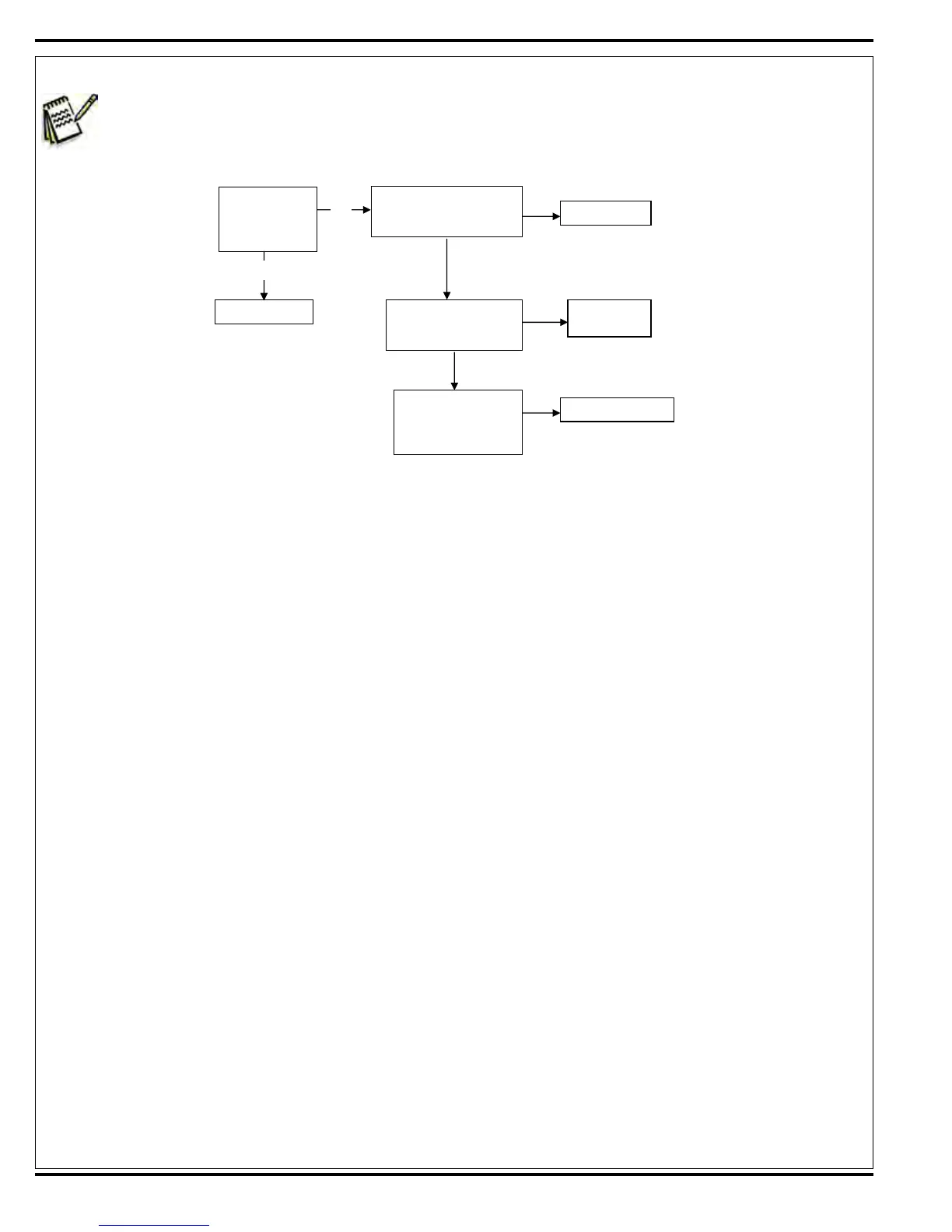

Symptom Two - Solution Pump Will Not Operate
Note: Activate the Service Test Mode Program. See the optional program section for instructions. All testing
will be performed in the Service Test Mode Program.
To Next Page
