Form No. 56043161 - Clean Track
®
L24 - 21

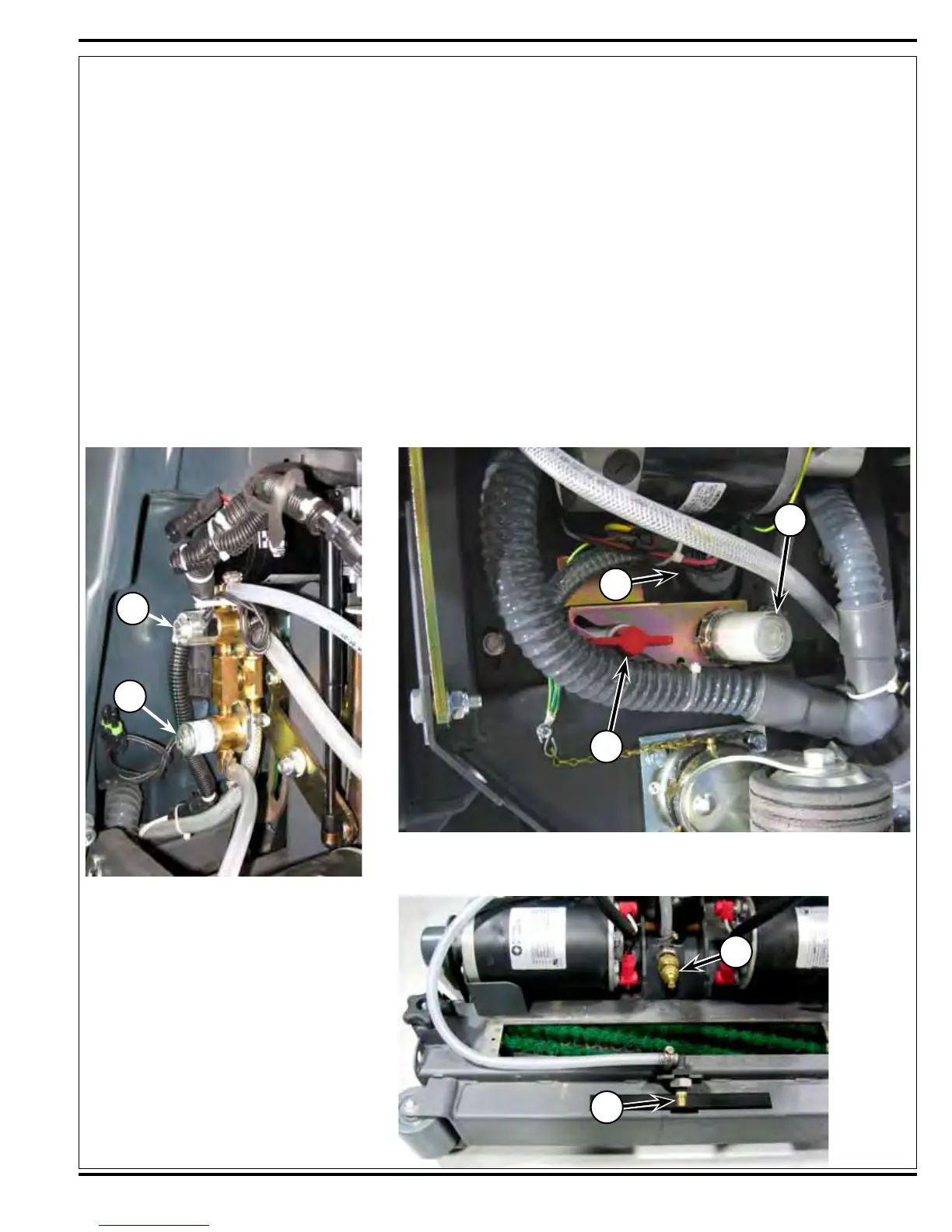

Figure 4
Solution System
Functional Overview
The Clean Track L24 has a solution tank capacity of 20 gallons (76 liters) with a right rear tank ll opening. A exible
clear hose on the side of the solution tank indicates the solution level, and is used to drain the tank for system
maintenance.
See Figure 4. A serviceable Solution Filter (C) is plumbed into the manual Solution Shutoff Valve (B) outlet to keep
debris from entering the solenoid valves.
Electrical Solenoid Valves (L1 and L2) switch the solution ow to the Maintenance (D) and Restoration (E) spray
nozzles on and off. The M1 solution pump (A) on the machine chassis controls the needed ow volume demand to the
nozzles. (See the electrical diagram in Figure 5.) The electrical circuit that turns on (energizes) the solenoid coils and
solution pump is activated through the (A1) control panel’s solution switch button input and the FOR / Reverse. (A2)
Speed Controller voltage output signals.
C
B
A
L2
L1
D
E
