CleaverBrooks CFC User Manual

49 750-265

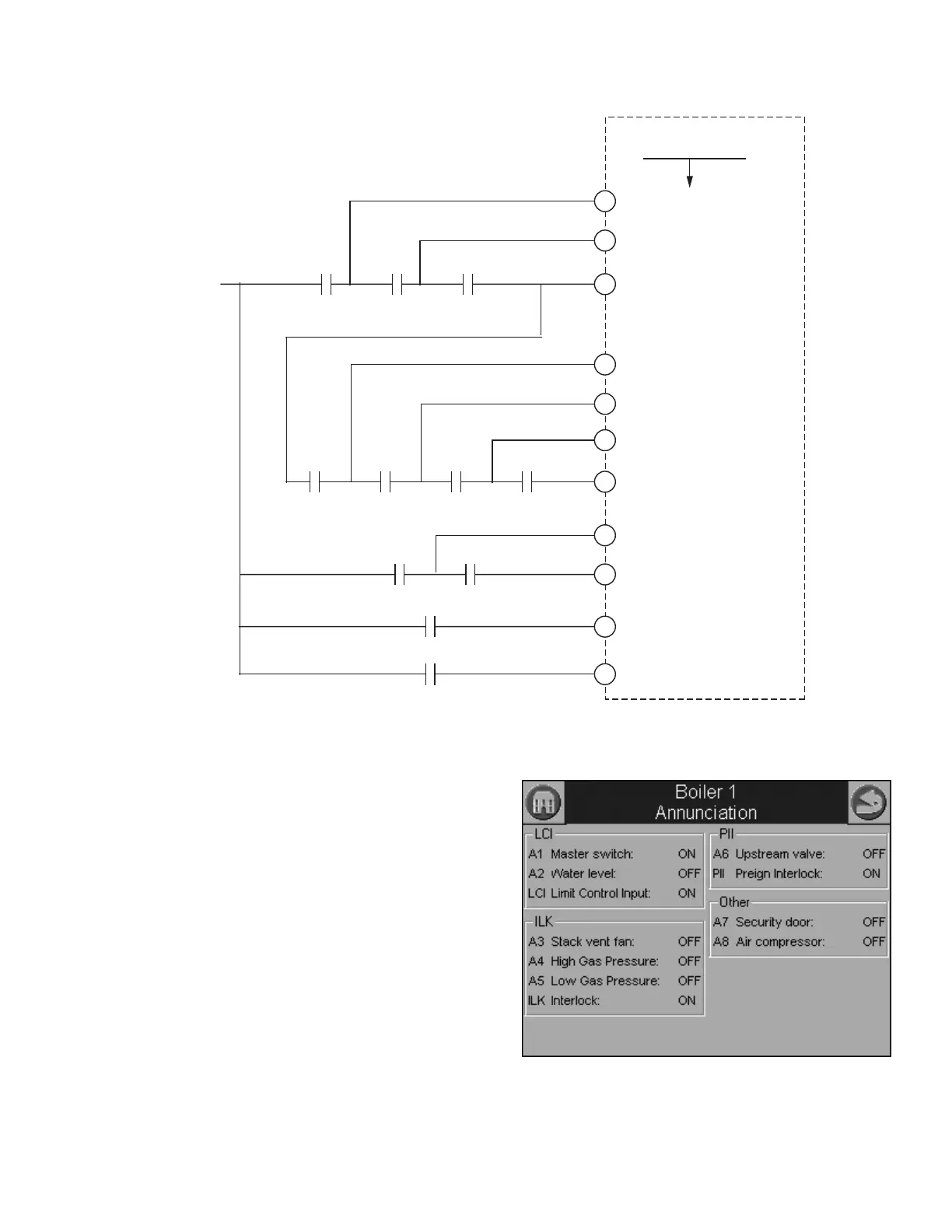

Fig. 23. Example of annunciator inputs and terminal names.
Sorting
Annunciator items are sorted first by their category
assignment. The category order is:
LCI, ILK, PII, Other (Unused items appearing in the Other
category)
Within the category, inputs are sorted by the input identifier
(A1–A8), with the additional rule that LCI (if enabled) is last in
the LCI category, ILK last in the ILK category, and PII (if
enabled) is last in the PII category.
Viewing the 833-3577 System Display using the
“programmable” annunciator display in this case would
resemble Fig. 24.
Fig. 24. Annunciator display.
If A7 is defined as a HFS input, then the parameter that calls it
a “Security door” would be ignored and the automatic value for the A8 LFS and A1 IAS).
(High Fire Switch) is used instead (the same would be true
ANNUNCIATOR NAMES
MASTER SWITCH
WATER LEVEL
LIMIT CONTROL
MASTER
SWITCH
WATER
LEVEL
LIMIT CONTROL
LCI
ILK
A1
L1
A2
STACK VENT FAN
HIGH GAS PRESSURE
LOW GAS PRESSURE
AIRFLOW SWITCH
STACK
VENT
HIGH GAS
PRESSURE
LOW GAS
PRESSURE
AIRFLOW
A5
A3
A4
A8
UPSTREAM VALVE
DOWNSTREAM VALVE
SECURITY DOOR
AIR COMPRESSOR
DOOR
COMPRESSOR
M28040
A7
A6
PII
PII
V1
PII
V2
TERMINAL TABLE
A1 J6-2
A2 J6-1
LCI J6-3
A3 J7-6
A4 J7-5
A5 J7-4
ILK J5-1
A6 J7-3
PII J6-5
A7 J7-2
A8 J7-1
