Section 2 — Installation
Part No. 750-263 2-29
5. Installation
1. To install the system, assemble the tank, base screen, filter and
neutralization granulate per the diagram Figure 2-33.
2. The granulate treatment media is supplied in 6.5 pound bags
(see Table 2-15). Pour the granulate into the bottom of the tank,
covering the filter mat.
3. Install piping as shown. Install the condensate tank cover and
slide the complete assembly under the boiler
Pipe to the appropriate drain.

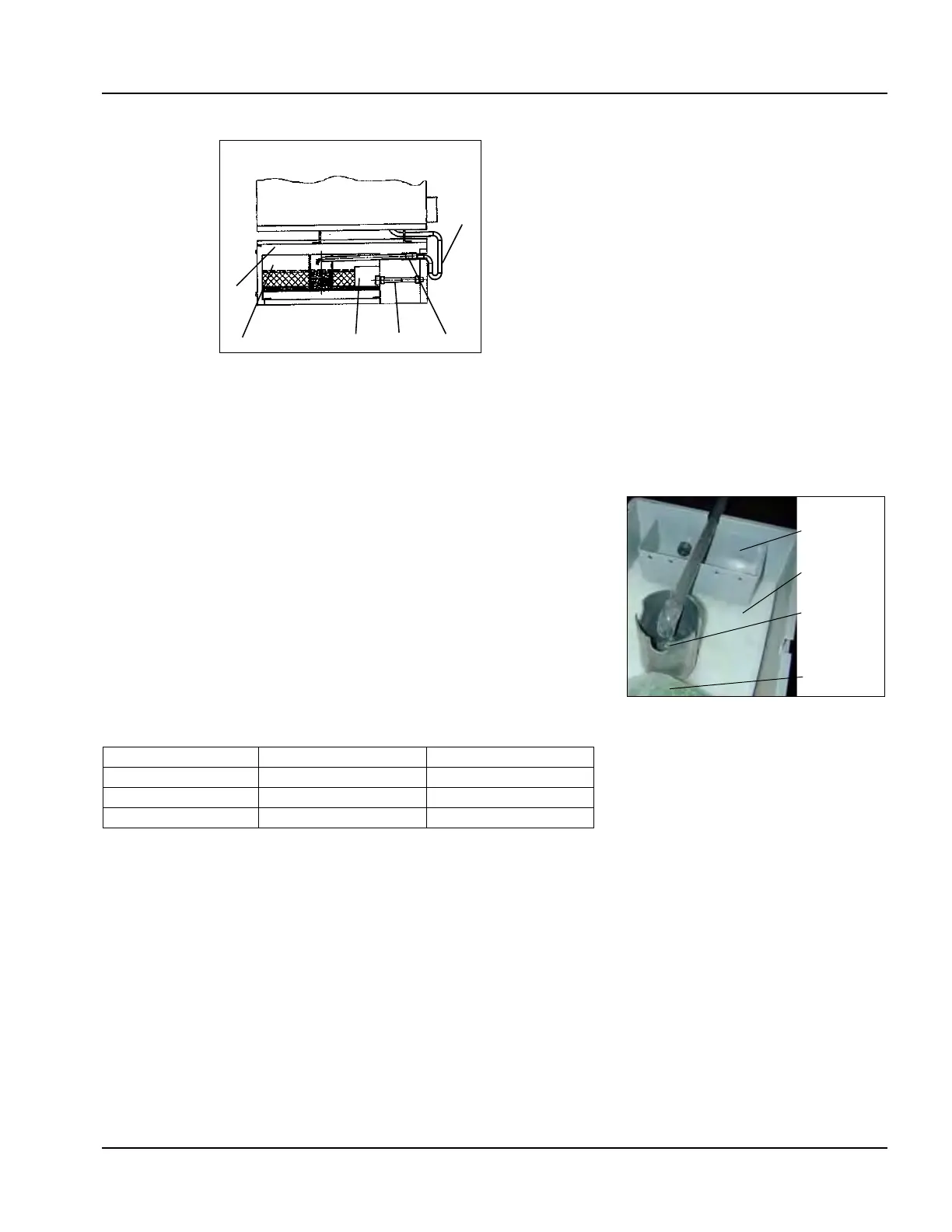

Figure 2-32 Condensate Treatment Assembly
Figure 2-33 Condensate
Treatment Tank
Treated
Condensate
Reservoir
Filter Mat
Condensate
Base and
Screen
Granulate
Bag (6.5Lbs.)
Table 2-15: Neutralization Granulate
Model No. of Bags (single boiler Multiple boilers
CFC 500, 750, 1000 3 Add 1 bag per boiler
CFC 1500, 1800 4 Add 2 bags per boiler
CFC 2500 5 Add 2 bags per boiler
