INSTALLER CHECKOUT
Diagnostics Tests
Pressing the Diagnostics Test button launches the diagnostic
tests. The first test displayed on the right side of the screen is
the last selected test shown, as seen in Fig. 104.
This screen enables the user to perform the following tests:
Modulation Test: enables the user to verify that the burner is
firing at the correct rate. See Fig. 104.
Pilot Test: enables the user to verify that the pilot valve is
functioning properly. The user can also perform burner
adjustments for the pilot flame. See Fig. 105.
Pump Test: enables the user to verify that the correct pump is
on or off. The Start Test button will test all pumps; pressing an
individual pump tests that pump only. See Fig. 106.
Burner Switch: this button turns the burner on or off.
Start Test: runs the test for 5 minutes.

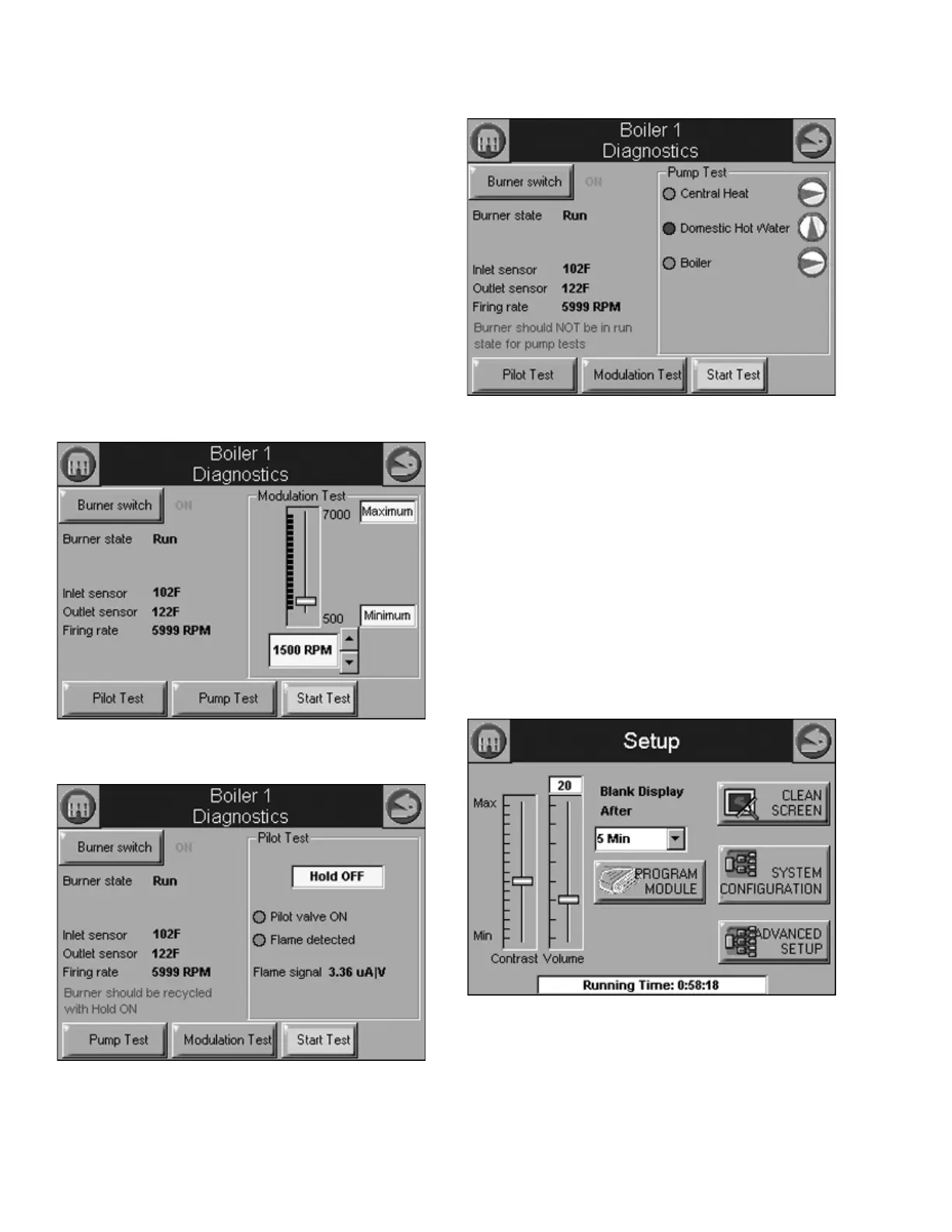

Fig. 104. Modulation test.
Fig. 105. Pilot test.
Fig. 106. Pump test.
DISPLAY SETUP AND DIAGNOSTICS
The following pages apply to display setup and diagnostics for
the 833-3577.
Setup
The Setup button on the Home page is selected to go to these
pages. The Setup screen (see Fig. 107) is displayed first. It
allows for some 833-3577 device settings. The Advanced
Setup button permits the user to run some diagnostic
functions for the 833-3577 and to set advanced features for
run-time operation. See “Advanced Setup” on page 48 for
these features.
Fig. 107. 833-3577 setup.
If Contrast or Volume are changed, Fig. 108 displays to allow
saving these changes.
To Next Page
