833-3577 CB-FALCON SYSTEM OPERATOR INTERFACE
65-0296—01 2 750-241
PREFACE
This User Guide is intended to provide a general overview of
the 833-3577 Operator Interface. The general overview goes
to page 13 and the actual configuration begins on page 15.
It is intended to guide you through the features and operation
of the 833-3577 as you interface with the 833-3639 CB-Falcon
control and establish the Parameter points of the system.
Note that this sheet (like the 833-3650 CB-Falcon) shows all
parameters. The actual product may have parameters made
invisible or Read Only by the OEM as they may not apply for
their product.
Use the Product Data Sheet for the 833-3639 CB-Falcon
(form 750-241) as a guide and explanation of the parameters
that are being programmed.
SPECIFICATIONS
Electrical Ratings:
833-3577:
+12 Vdc input, maximum of 500 mA current drain.
Included Power Supply:
Inputs: 85 to 264 Vac, 47-63 Hz; 120 to 370 Vdc
Output: 12 Vdc; 0 to 2.1 A.
Power: 25W
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Storage/Shipping Temperature: -40°F to 158°
(-40°C to 70°C).
Humidity:
85% maximum relative humidity.
Approvals:
FCC Part 15, Class A Digital Device
Underwritter Laboratories, Inc. (UL) (cUL) Component
Recognized (for non-continuous operation): File Num-
ber MH20613 (MCCZ)
Canada: ICES-003
Dimensions: See Fig. 1.
Replacement Parts
• 9-pin connector—50020034-001
• Power Supply—Manufactured by MeanWell

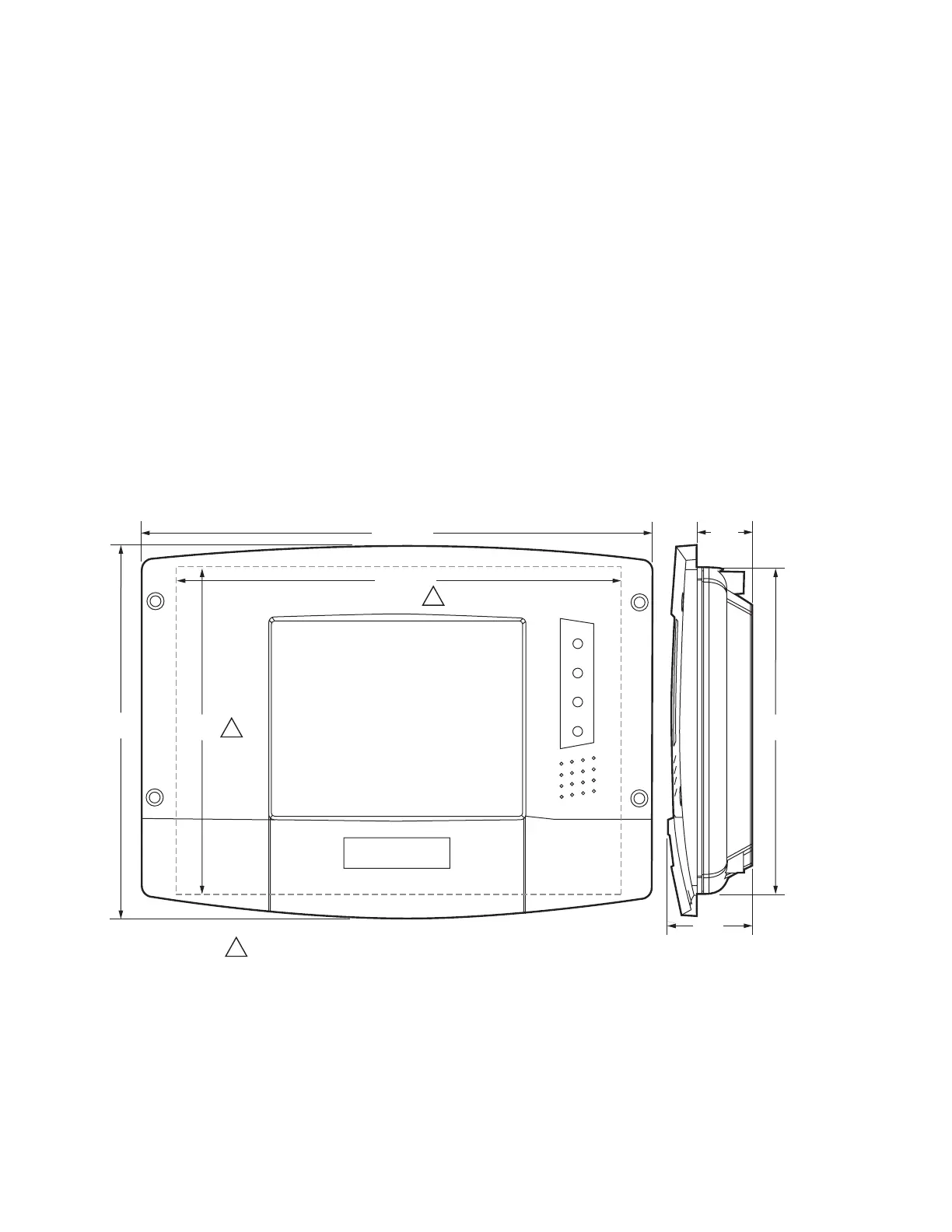

Fig. 1. 833-3577 dimensions in in. (mm).
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet Appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
6-21/32
(169)
9-13/32 (239)
8-1/8 (206)
5-55/64
(149)
1-9/16
(40)
1-1/32
(26)
M28163
PANEL HOLE CUTOUT SIZE 8-1/8 IN. WIDE X 5-7/8 IN. HIGH.1
1
5-7/8
(149)
1
