Section 2 — Installation
2-8 Part No. 750-263
6. Base mounting
The Model CFC boiler is of a condensing design. Based on local
requirements the condensate can be piped to an appropriate
treatment location or the optional treatment tank can be mounted
under the boiler (see Figure 2-7).
For information on the condensate treatment tank installation, refer
to section 3. Once condensate piping is completed the base casing
can be installed.
1. Mount the right and left sidewalls (14 & 14a) to the boilermounting legs
with the supplied cap nuts.
2. Attach the front (15) to the sidewalls (14 & 14a).

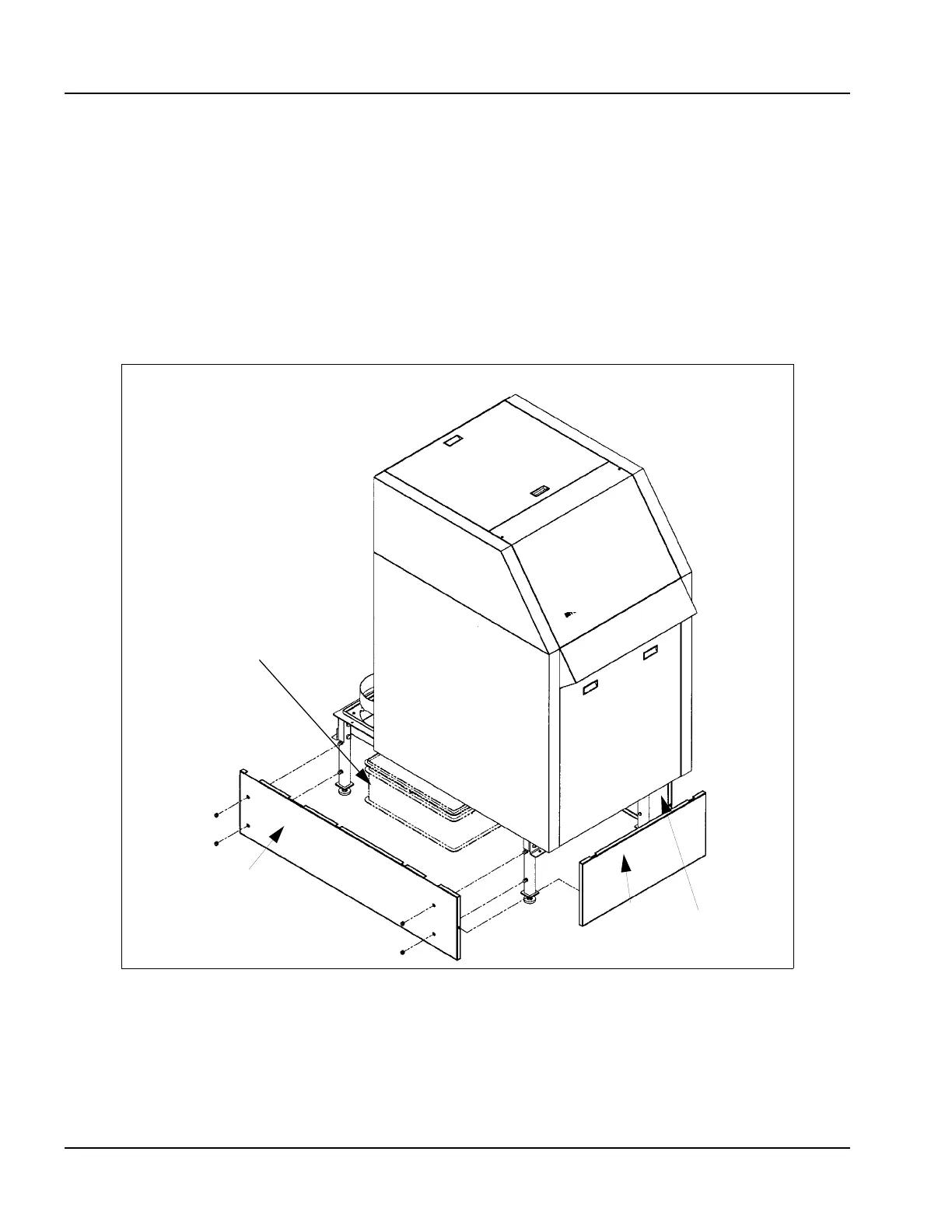

Figure 2-7 Base mounting with optional treatment tank
14
15
14a
Condensate
Treatment
Tank
To Next Page
